Sames PPH 607 - Bellcup, Clip and Distributor 65 EC Version; Disassembly (Bellcup Clip Assembly)

Revised A 50 6301
6. Assembly and disassembly (continued)
6.2. Bellcup, clip and distributor 65EC version
6.2.1. Disassembly (bellcup clip assembly)
Note: To disassemble the bellcup and clip assembly, use the tool P/N 72-1107-00.
SAFETY :
- Wear rubber gloves or use a rag to protect your hands from the sharp edges of the bellcup,
- Bearing air must be turned OFF.
- Avoid damage to the bellcup and clip.

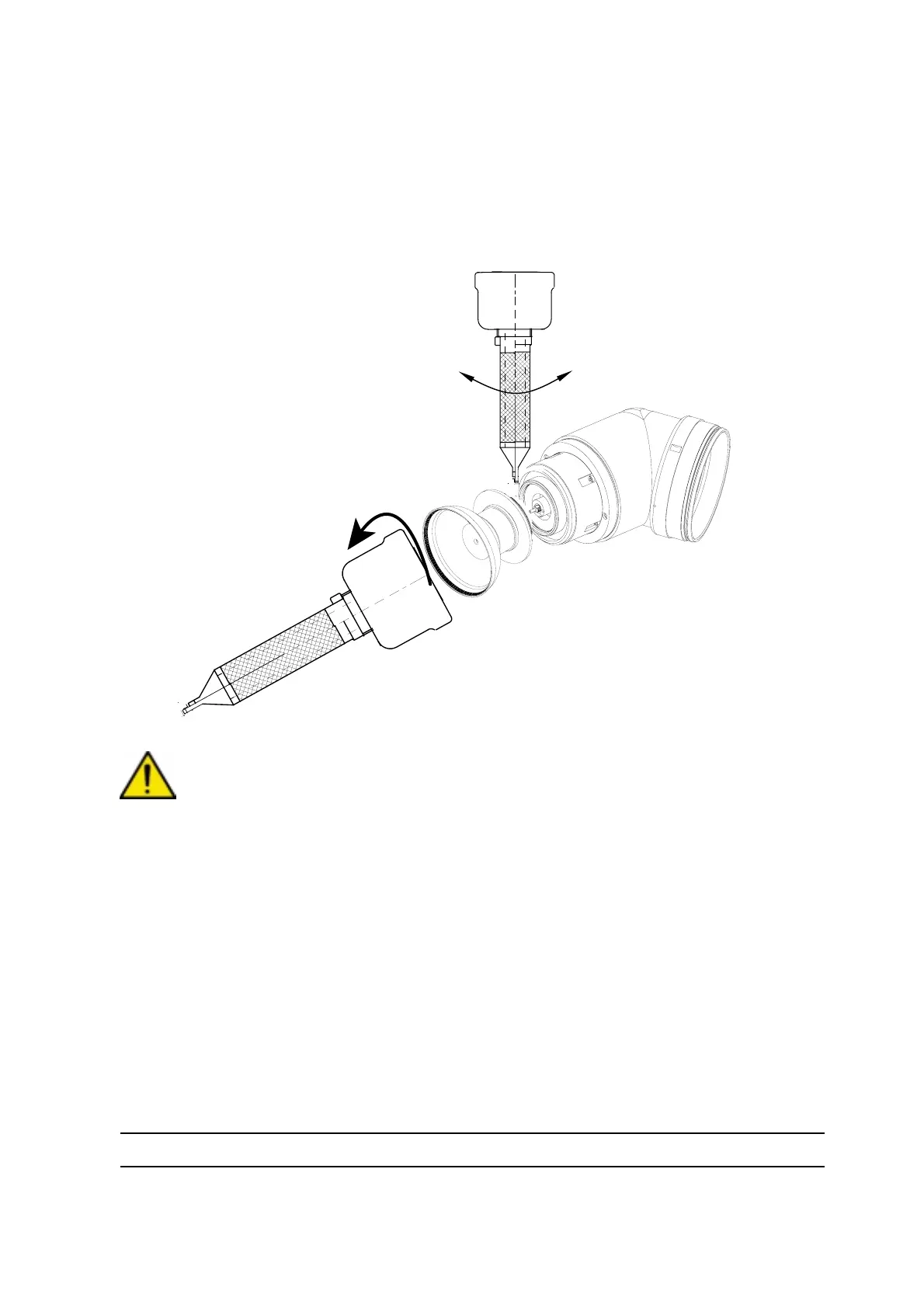

• Place the opened clamp around the bellcup and turn handle clockwise to tighten the clamp around
it. Turn the clamp counterclock-wise to unscrew bellcup from the clip.
• Hold clip firmly and unscrew the clip with the tool
DES01502
Step 1
Step 2
