Revised A 39 6301
5. Maintenance (continued)

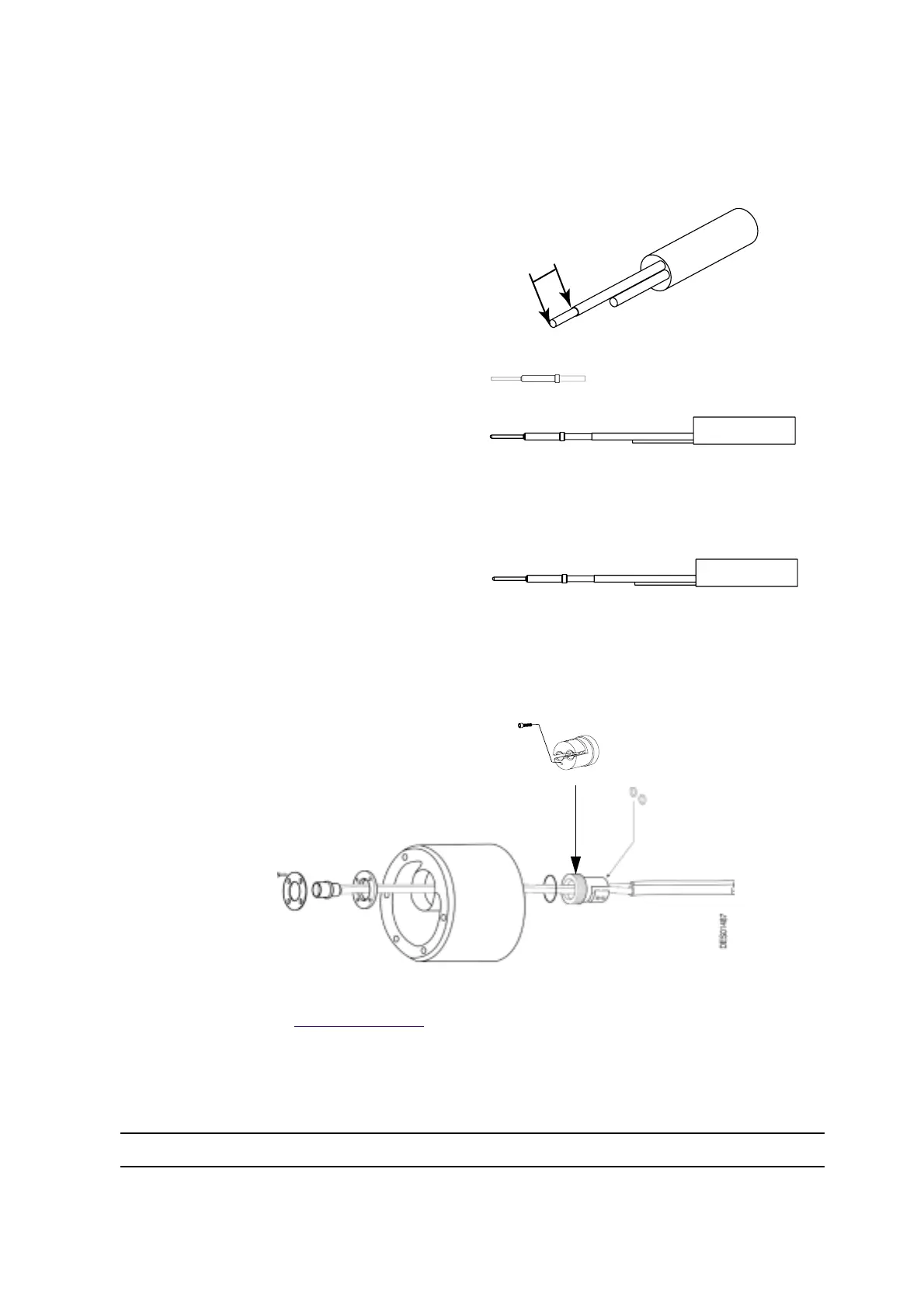

5.3.4. Low voltage cable wiring instructions
Assembly
Step 1:
Strip insulation back 1/4” on each of the 3 wires.
Repeat operation on the second low voltage
cable.
Step 2:
Crimp pins on each of the 3 wires on the low
voltage cable. Tag cable #1 using a solvent
resistant marker at other end.
Step 3:
Crimp pins on the red, black and white wires on
the 2nd low voltage cable. Tag #2 cable using
a solvent resistant marker at other end.
Step 4:
Feed cable ends through the connector assembly and the robot adaptor. The two seals are
previously inserted into the connector assembly.
Note: * Screw (M3 x 8) (see § 9.5 page 88) not included with connector assembly, necessary only if
grounded method is required. Contact your Sames representative for more details.
DES01300
1/4"
DES01297
DES01301
1
P/N : E4PTFD482
DES01301
2
1
DES01489
Back view
