6. Assembly and disassembly (continued)
6.8. Fittings and hoses
6.8.1. Fittings removal

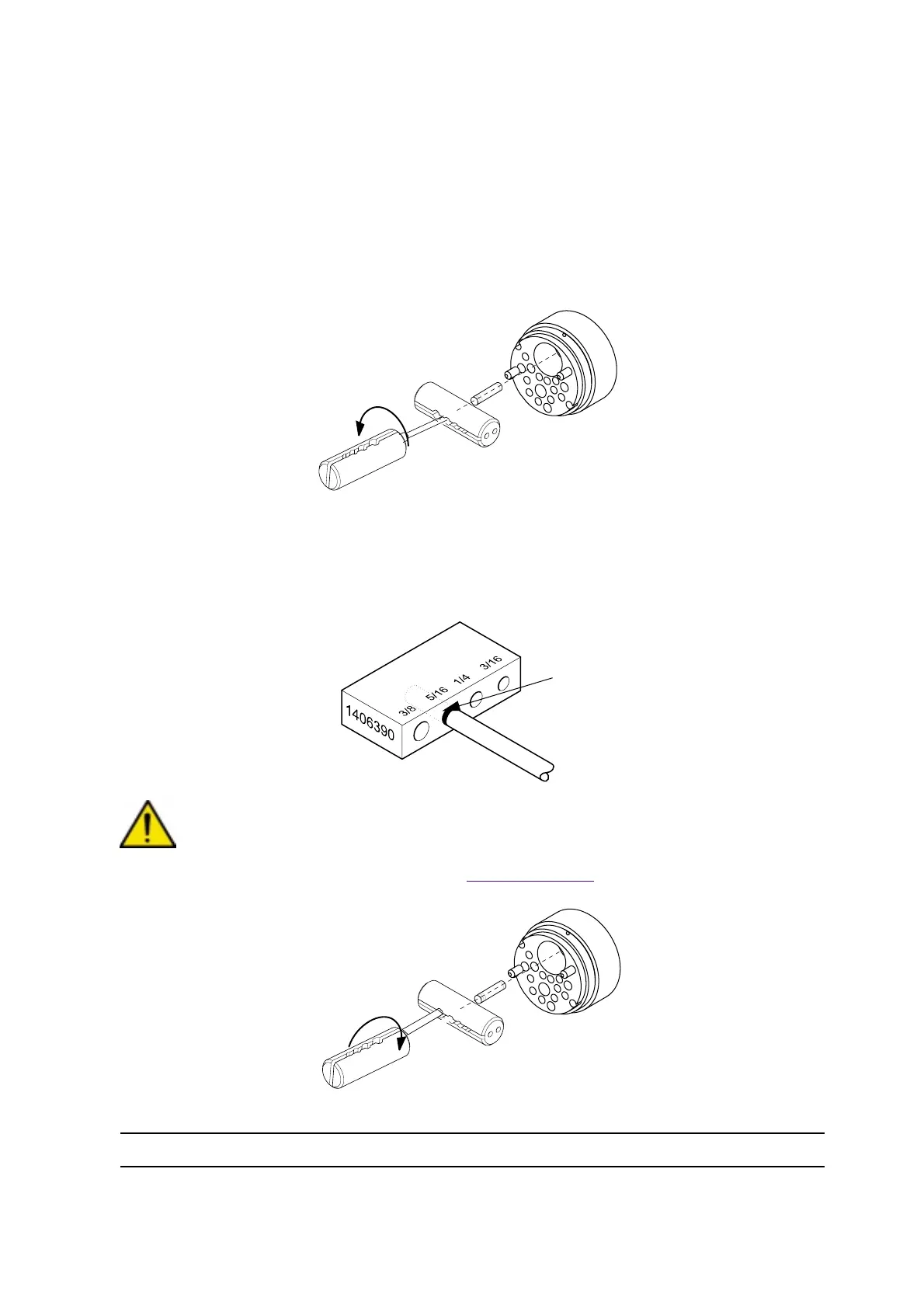

Remove fittings and hoses from the atomizer robot adaptor
• Step 1: Use one tool P/N 1305453 and to hold the hose
• Step 2: Place the second tool P/N 1305453 and turn counterclock wise to remove.
• Step 3: Install new hoses on fittings
6.8.2. Assembly
Note: Make sure to shorten hose by 0.6 Inch (15 mm) if previously used.
• Step 1: Fit hose in the tool P/N 1406390 mark as shown
• Step 2: Place tool and fitting onto hose and turn clockwise to tighten until it reaches the mark
WARNING : Do not apply too much force while tightening. If hose turns, cut again and re-install
the fitting. For correct tube fittings and o-rings see § 8.7 page 81.
• Step 3: Reconnect the fitting and hose on the quick disconnect robot plate
DES01090
DES01091
Mark the tubing with a
permanent marker
DES01090
