Sames PPH 607 - Bellcup, Clip, Shaping Air Assembly, 65 EC Version

Revised A 76 6301
8. PPH 607 SCAR metric spare parts list (continued)

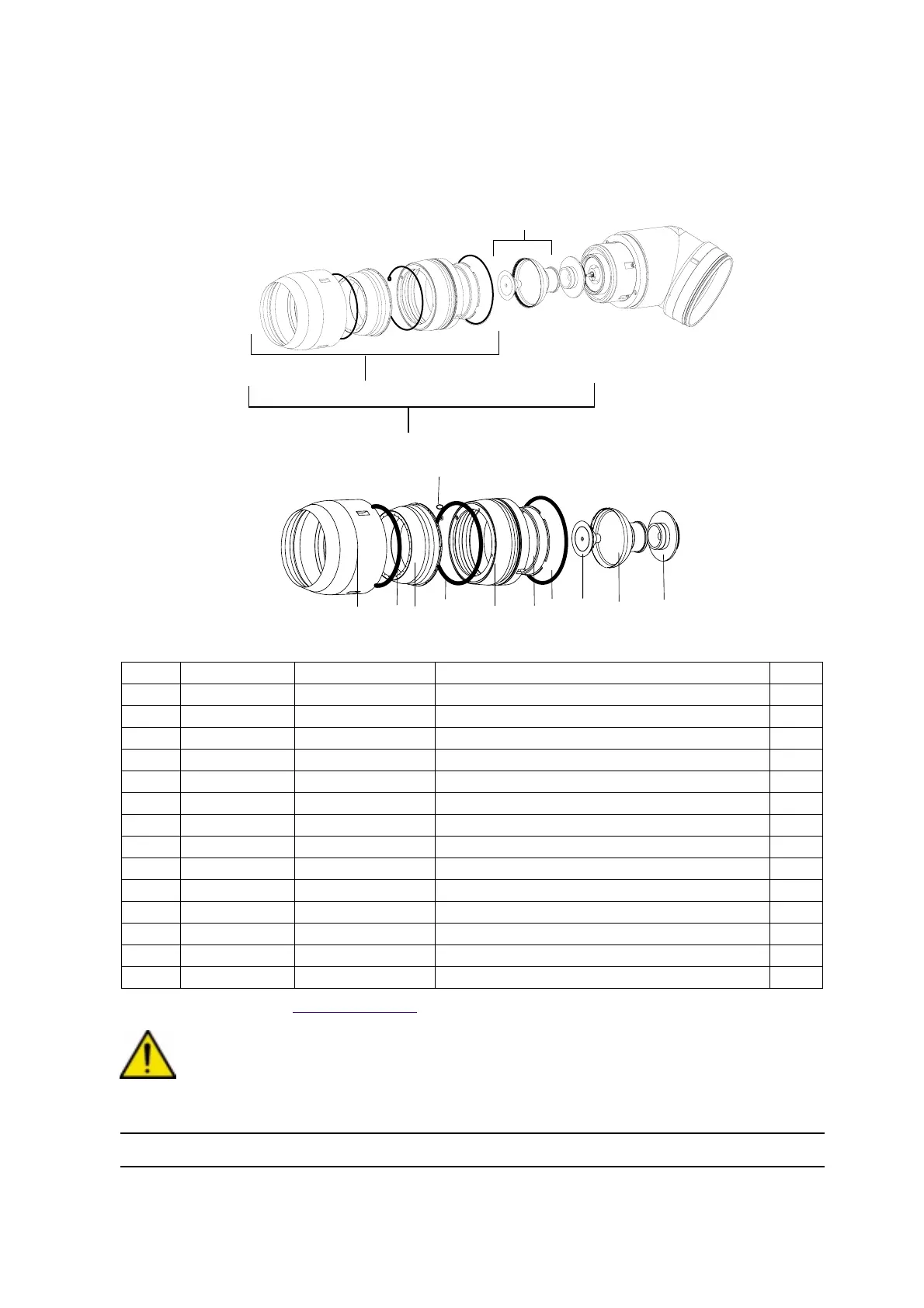

8.2. Bellcup, clip, shaping air assembly, 65 EC version
Recommended for metallic base coat and clear coat and cut-in applications
Note: O-ring kit available see § 9.1 page 84.
WARNING : When using shaping air assembly 65 EC version # 1514409, the stainless steel
solvent pipette # 1405145 will replace the nylon genuine one (# 1402690).
Item USA P/N Sames P/N Description Qty
A 62-1137-00 1514409 65EC shaping air assembly 1
B 1516662 1516662 Bellcup and distributor 1
C 1518056 1518056 65 EC complete assembly 1
1 72-1124-01 1202996 Aluminium cover 1
2 82-0993-05 J2FENV386 O-ring 84 x 2 teflon encapsulated - viton 1
3 72-1039-02 1202570 Shaping air insert OD: 65mm 1
4 82-0993-04 J2FENV385 O-ring 82 x 1.6 teflon encapsulated - viton 1
5 72-1125-00 1202995 Shaping air shroud 1
5a 82-0410-31 J3STKL014 O-ring 2.5 X 1.25 chemically inert 1
6 72-1123-00 1310370 Shaping air nut OD: 65mm 1
7 J2FENV622 J2FENV622 O-ring 88.62 x 1.78mm, teflon encapsulated 1
8 1309562 1309562 Deflector 1
9 1202905 1202905 Bellcup EC 65mm, body 1
10 1308547 1308547 Clip 1
