6. Assembly and disassembly (continued)
6.2 Bellcup, clip and distributor 65 EC version (continued)
6.2.2. Distributor removal
• Step 1: Separate the clip from the bellcup as described before.

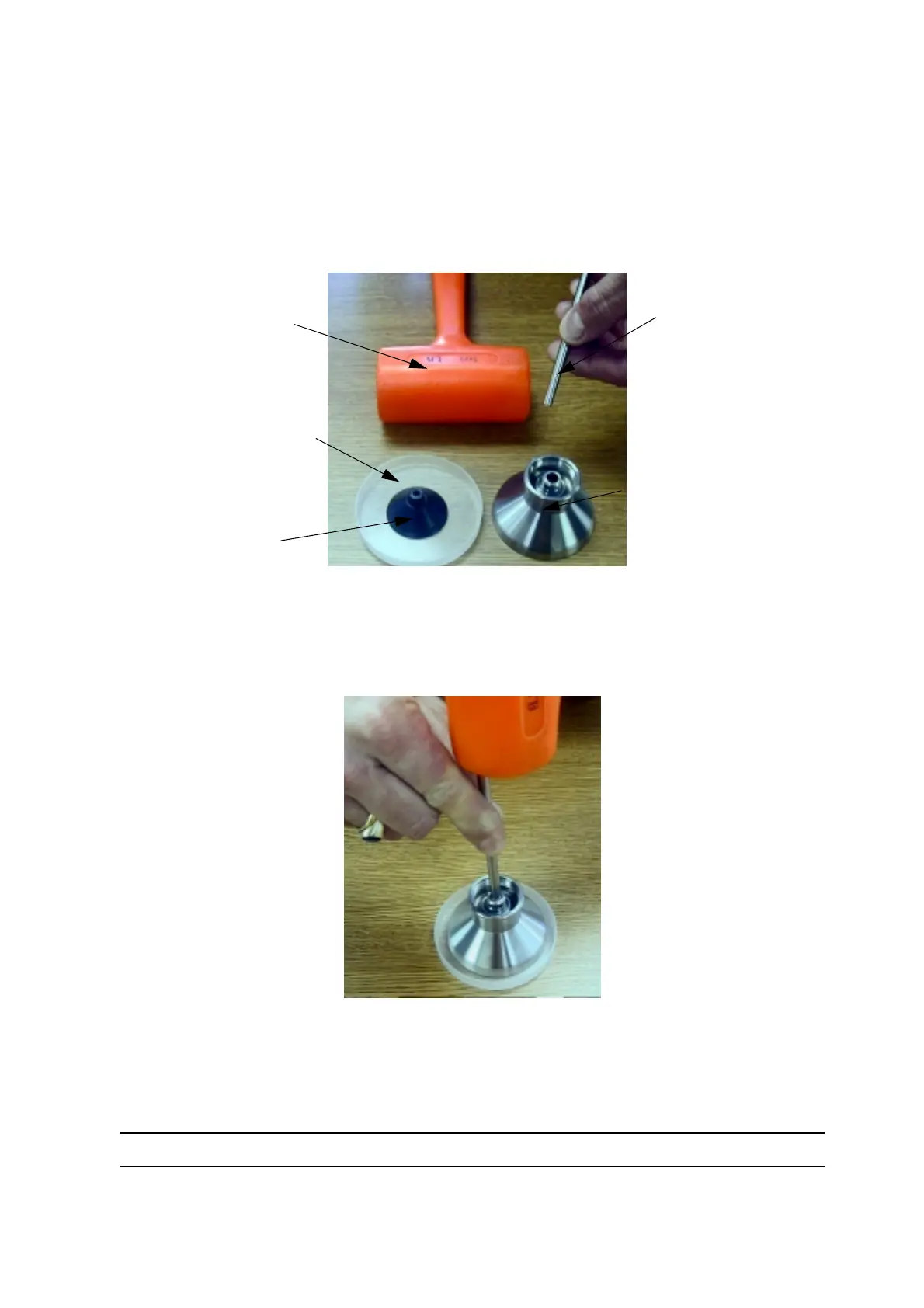

Required accessories to remove distributor from bellcup:
• Step 2: Place bellcup upside down as illustrated above on a soft surface to avoid damage to the
bellcup.
• Step 3: Insert the rod into the bellcup as illustrated below and hit the 6 mm rod with the mallet to
release the distributor.
6.2.3. Distributor reinstallation
• Step 1: Place the distributor into the bellcup (well centered).
• Step 2: Push with fingers.
6 mm steel rod
Soft plastic surface
Distributor
65 EC bellcup
Plastic mallet
