Revised A 52 6301

6. Assembly and disassembly (continued)

6.2 Bellcup, clip and distributor 65 EC version (continued)

6.2.4. Assembly (bellcup and clip)

SAFETY : To avoid injury, it is recommended to wear rubber gloves or to use a rag to install the

bellcup and clip assembly.

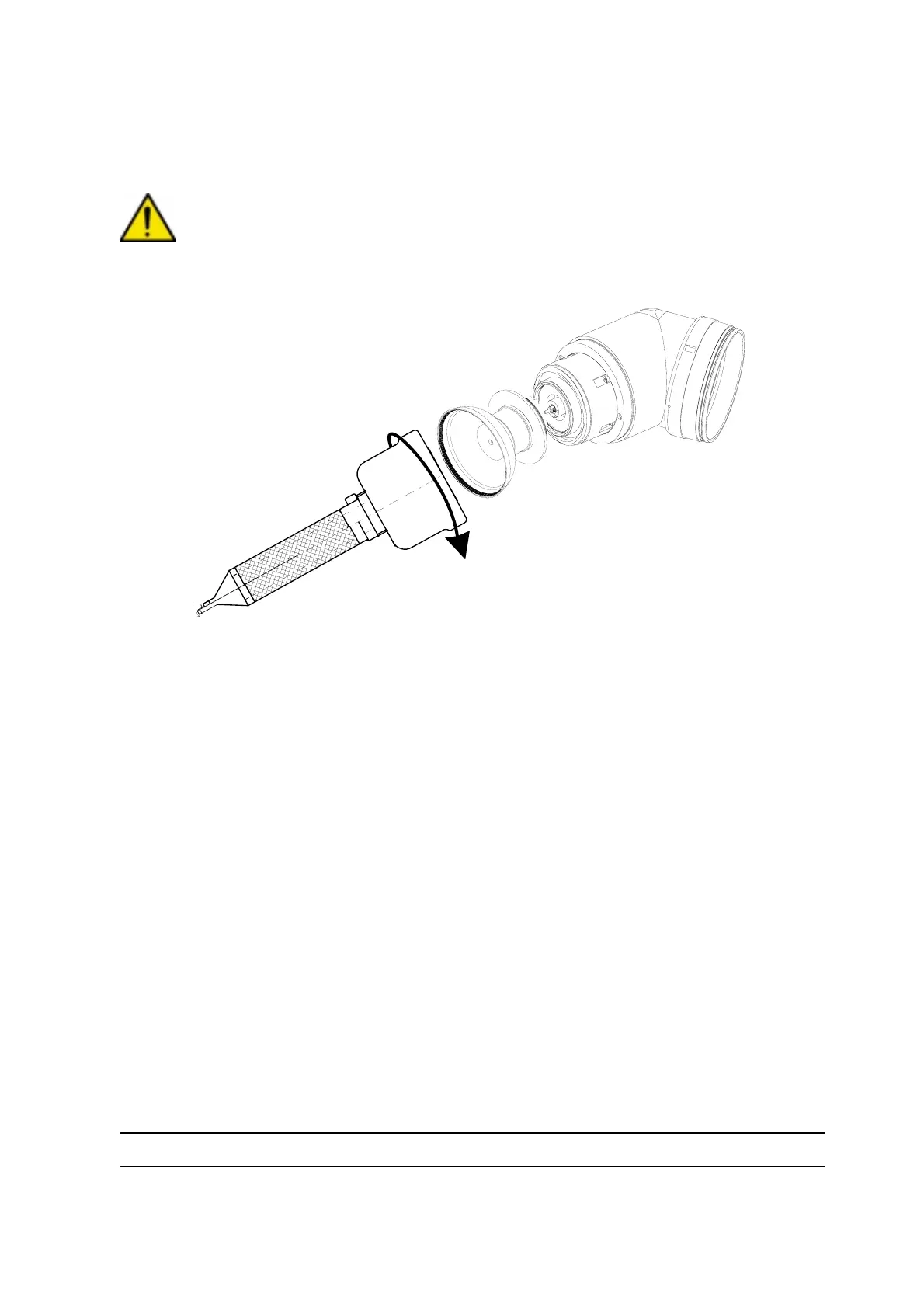

• Step 1: Secure the clip to the bellcup by turning the tool clockwise by hand.

• Step 2: Place the opened clamp to close the grip around the bellcup and tighten the bell-

cup onto the clip.

• Step 3: Press the bellcup and clip assembly to the turbine motor making sure it is well secured.

Step 2

Step 1

DES01503
