Sames PPH 607 - Low Voltage Connector; Low Voltage Connection

Revised A 38 6301
5. Maintenance (continued)

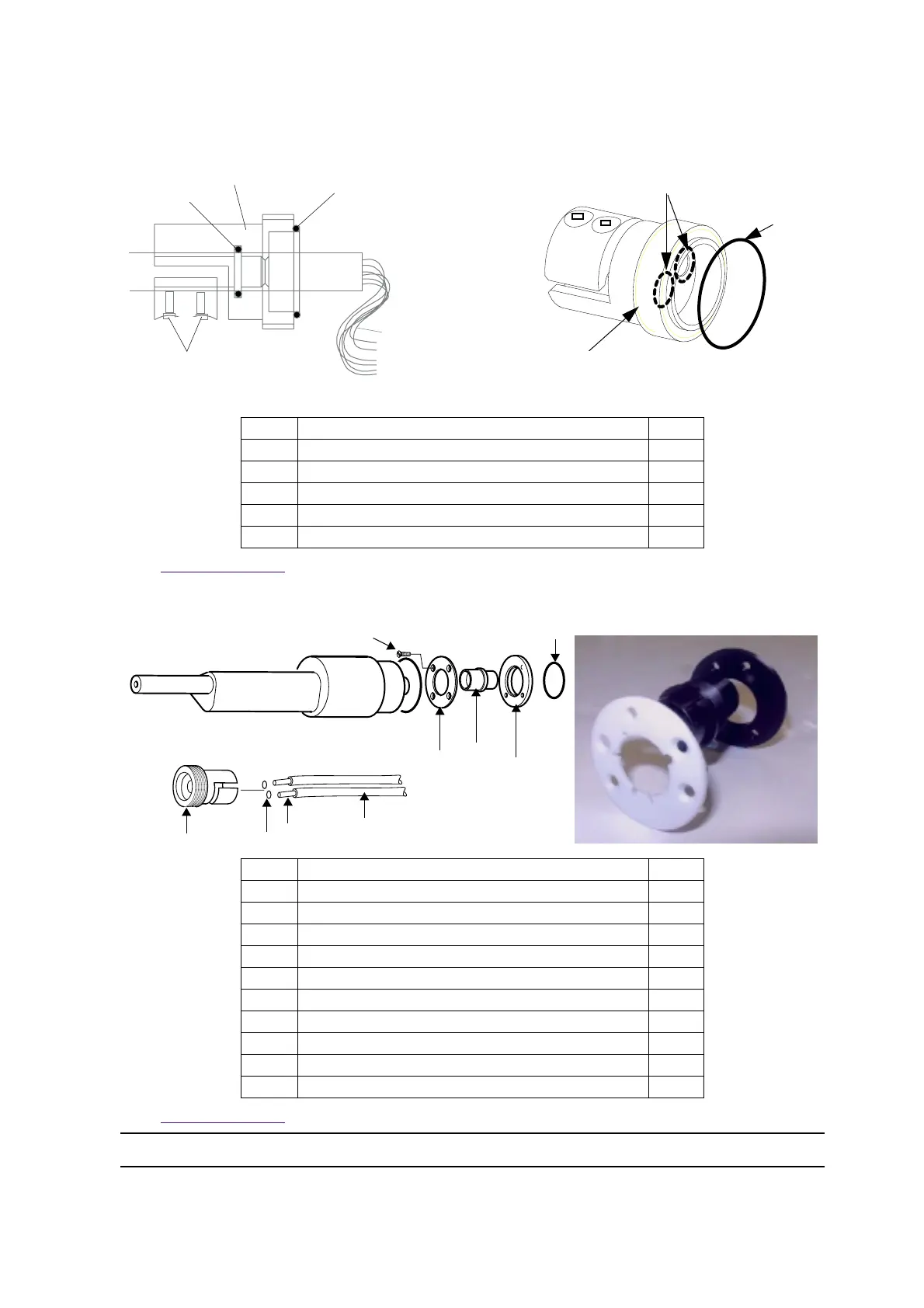

5.3.2. Low voltage connector
Note: see § 8.1 page 71, for Sames spare part list for details.
5.3.3. Low voltage connection
Note: see § 8.1 page 71 for Sames spare part list for details.
Item Description Qty
1 Low voltage connector 1
2 O-ring 7.65 x 1.68 2
3 Low voltage cable 2
4 O-ring 23.52 x 1.78 1
5 Screw M4 x 12 s/s 2
Item Description Qty
1 Washer UHT 153 position plug 1
2 Electrical male connector 1
3 Washer UHT 153 1
4 O-ring 23.52 x 1.78 1
5 Screw M3 x 10 nylon 4
6 Low voltage connector 1
6a Screw M4 x 12 s/s 2
7 O-ring 7.65 x 1.68 2
8 Low voltage cable 2
9 5/16” nylon tubing 2
DES01037
DES01036
2
4
1
3
5
2
1
4
5
UHT 153
DES01038
1
2
3
5
7
8
9
1
2
3
4
6 + 6a
