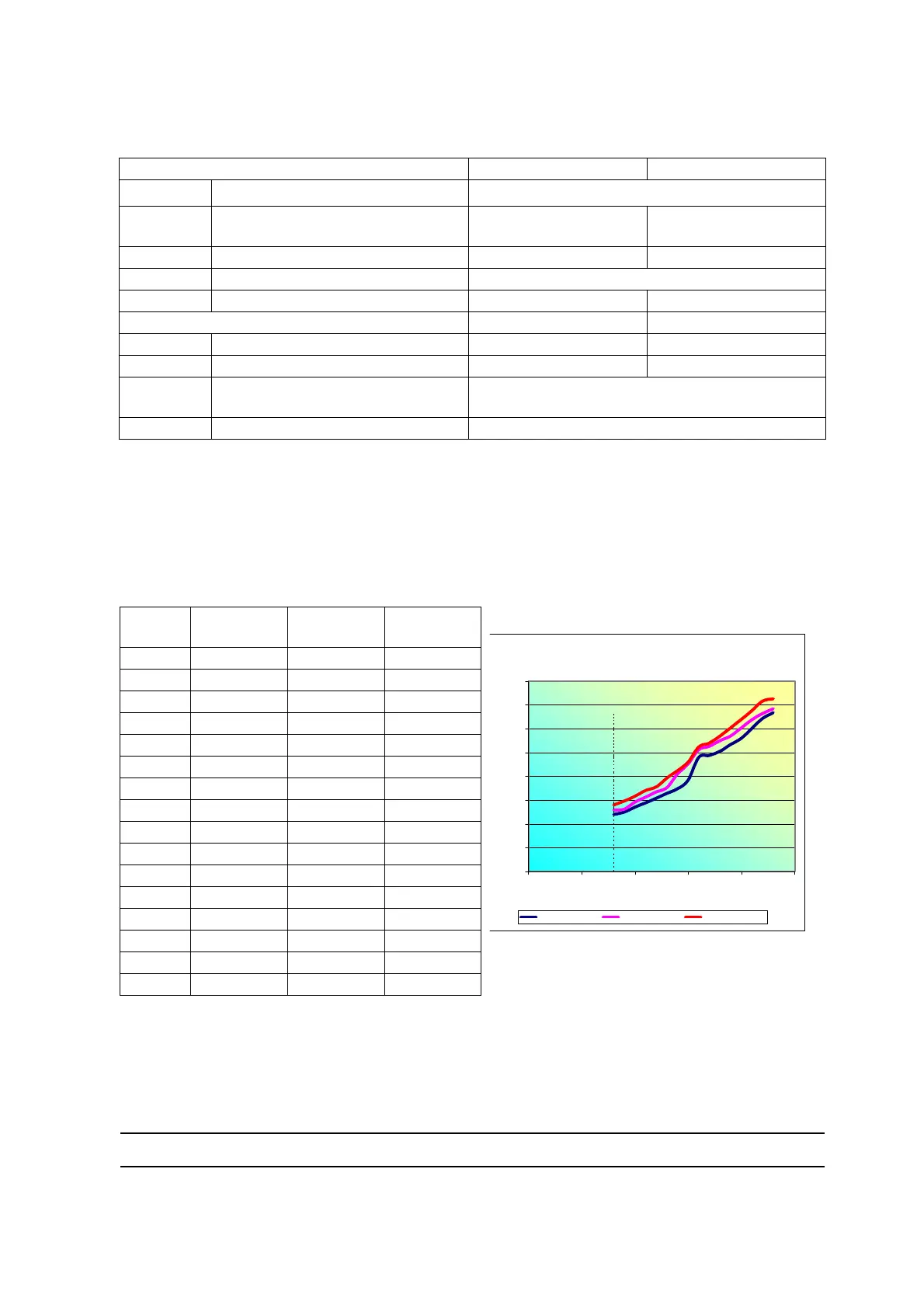

Sames PPH 607 - Page 16

Revised A 16 6301
3. Technical characteristics (continued)
3.2 Working characteristics (continued)
Air use for PPH 607 with load (SLPM) with 65EC bellcup.
Solvent borne paint
Viscosity: 28 seconds - Ford cup # 4
Note : the speed board card is 100% readable from 15.000 Rpm.
Air quality US units Metric units
Water
< 2 mg/Nm
3
Dew point <+14˚ F < -10°C
depressurized air
Dew point < 36˚ F air at 105 PSI < 2°C air at 7 bar
Particles diameter < 5 micron
Air consumption
Pilot 0.35 CFM 10L/min.
Bearing air 4.41 CFM 125L/min.
Shaping air 0 to 600 Nl/min. (21.18CFM)
according to type of shaping air ring being used
Turbine Refer to the following charts
x 1000
Rpm
Load:
150cc/min
Load:
250cc/min
Load:
350cc/min
15 120 129 140
18 125 131 148
20 135 146 158
22 144 156 170
24 154 167 178
26 164 176 196
28 174 205 212
30 192 226 230
32 240 256 262
34 244 263 270
36 253 275 285
38 267 285 302
40 280 302 320
42 301 319 338
44 322 332 358
46 334 342 363
PPH 607 Turbine Air consumption under load.
0
50
100
150
200
250
300
350
400
01020304050
x 1000 Rpm
L/mn
(
at
atmospheric
pressure)
.
Load: 150cc/mn Load: 250cc/mn Load: 350cc/mn
