Sames PPH 607 - Page 18

Revised A 18 6301
3. Technical characteristics (continued)
3.2 Working characteristics (continued)

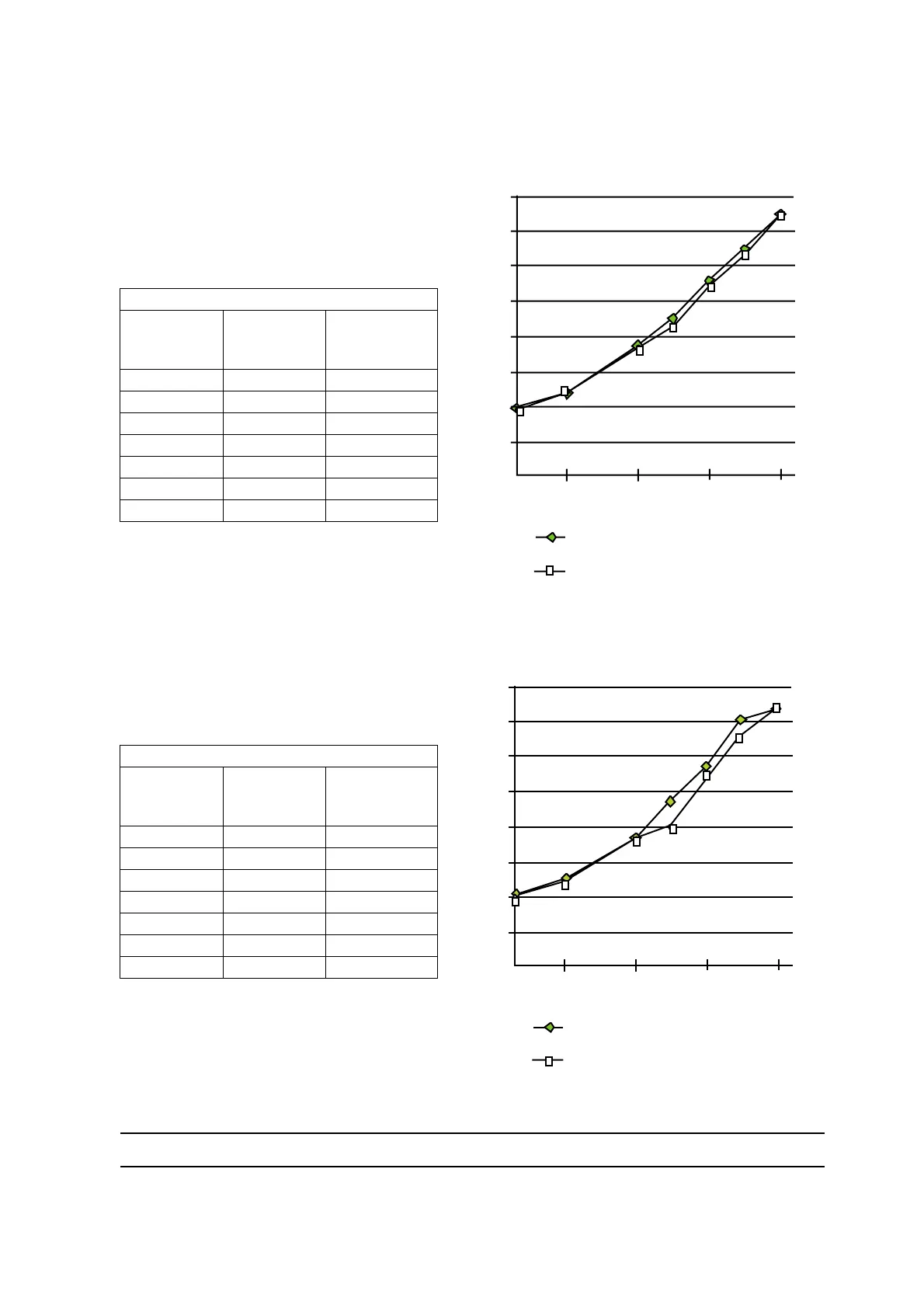

Turbine drive air consumption LOADED as per
bellcup used
Viscosity: 60 seconds @ 80° F - Ford cup # 4
Fluid flow 75cc/min.
Rev.
(k Rpm)
Vortex
bellcup
l/min.
Negative
edge bellcup
l/min.
15 97 98
20 120 120
30 188 180
35 226 210
40 271 262
45 324 315
50 370 370
Fluid flow 150cc
Rev.
(k Rpm)
Vortex
bellcup
l/min.
Negative
edge bellcup
l/min.
15 107 103
20 135 129
30 191 190
35 244 201
40 292 276
45 360 336
50 370 373
DES01228
15
50
100
150
200
250
300
350
30
40
5020
400
0
75 cc/min
Air flow L/min.
Vortex bellcup
Negative edge bellcup
DES01229
15
50
100
150
200
250
300
350
30
40
5020
400
0
150 cc/min
Vortex bellcup
Negative edge bellcup
Air flow L/min.
