Sames PPH 607 - Page 20

Revised A 20 6301
3. Technical characteristics (continued)
3.2 Working characteristics (continued)

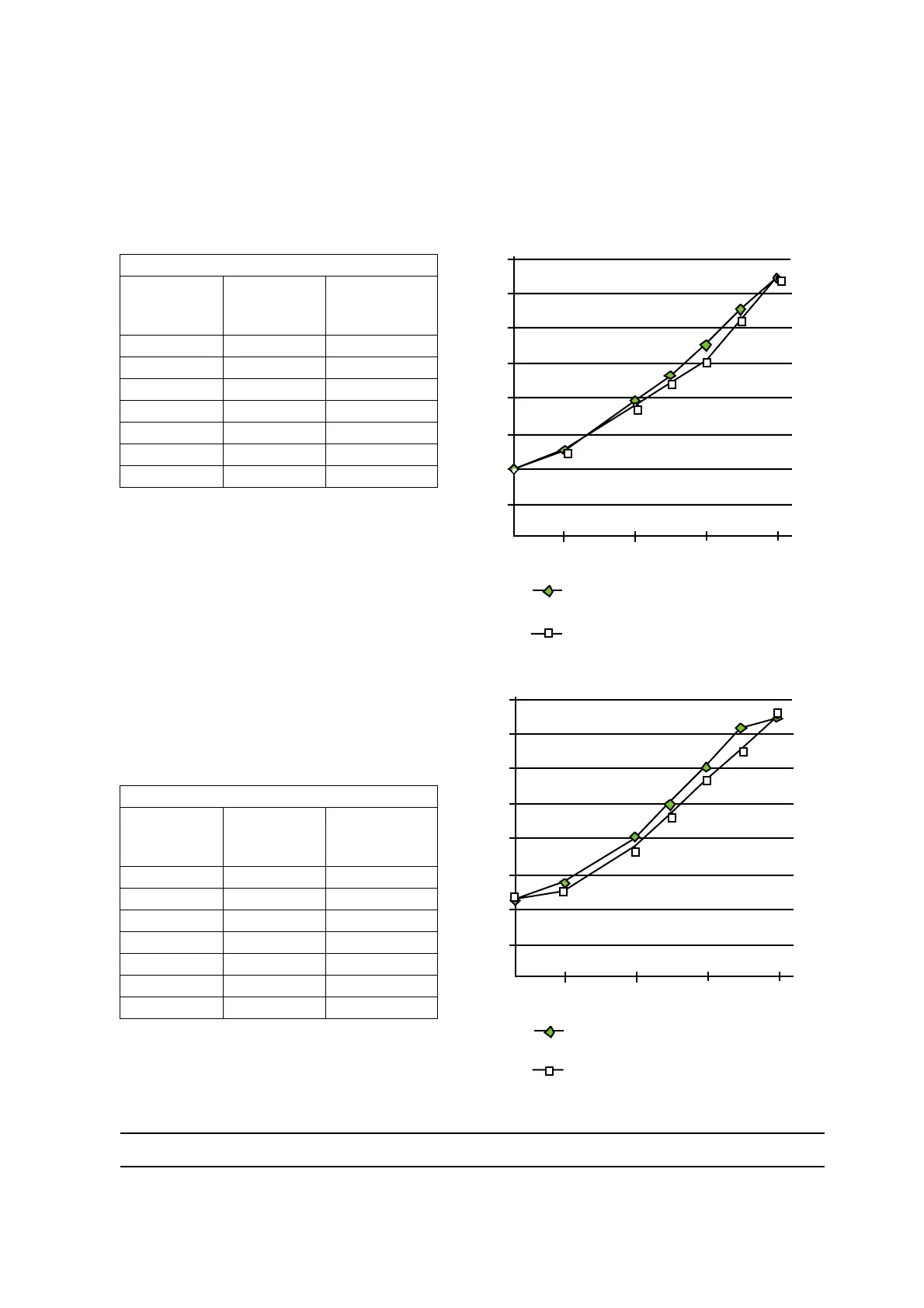

Turbine drive air consumption LOADED relative as per bellcup used
Viscosity: 25 sec. Ford cup # 4 @ 80°F (27°C)
Fluid flow 75cc/min.
Rev.
(k Rpm)
Vortex
bellcup
l/min.
Negative
edge bellcup
(l/min.)
15 97 94
20 123 120
30 192 180
35 230 220
40 270 250
45 324 314
50 370 370
Fluid flow 150cc/min.
Rev.
(k Rpm)
Vortex
bellcup
l/min.
Negative
edge bellcup
(l/min.)
15 108 109
20 140 132
30 200 185
35 245 230
40 302 280
45 360 325
50 375 370
DES01232
15
50
100
150
200
250
300
350
30
40
5020
400
0
Air flow l/min.
Vortex bellcup
Negative edge bellcup
DES01233
15
50
100
150
200
250
300
350
30
40
5020
400
0
Vortex bellcup
Negative edge bellcup
Air flow l/min.
