Sames PPH 607 - Page 22

Revised A 22 6301
3. Technical characteristics (continued)
3.2 Working characteristics (continued)

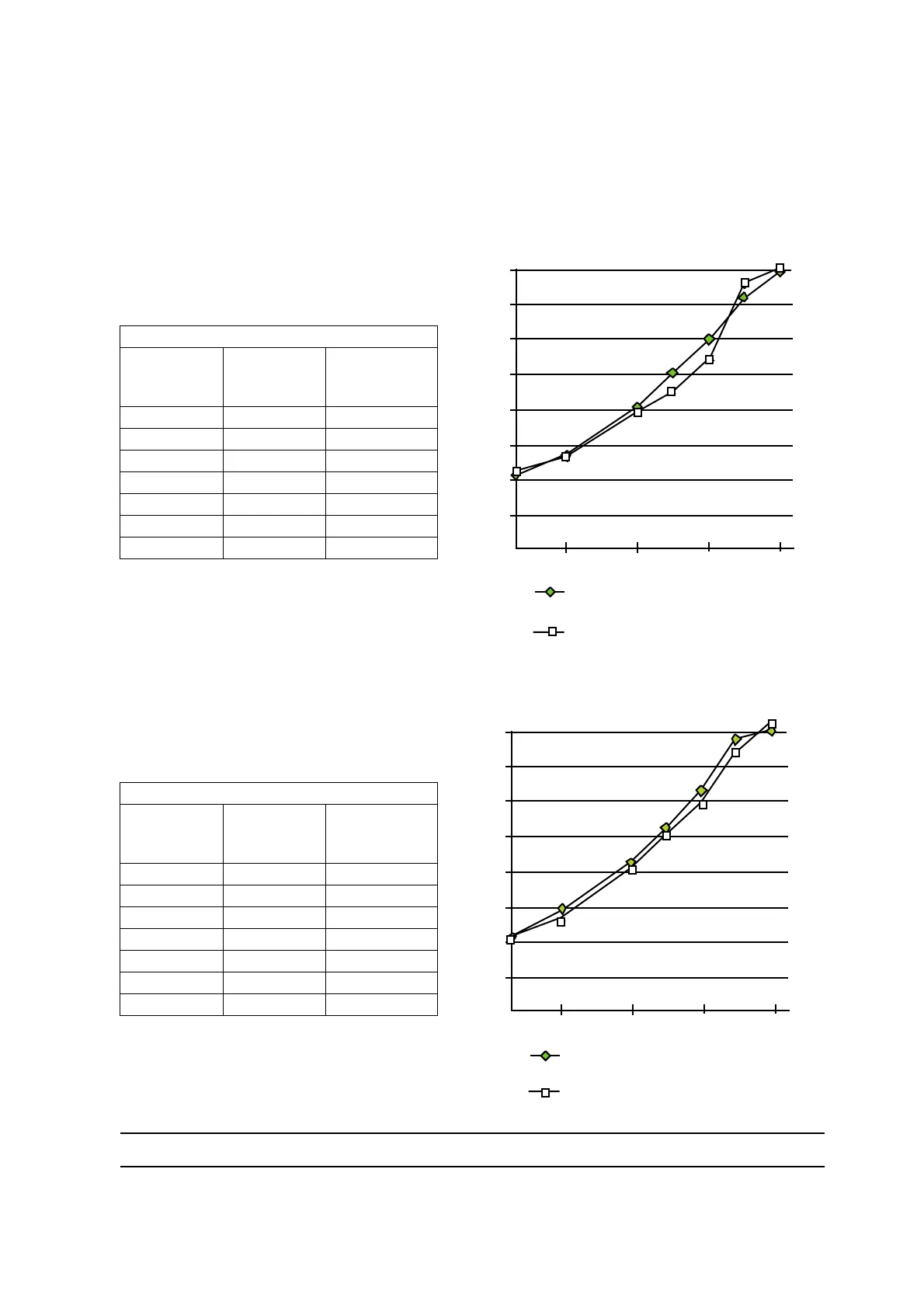

Turbine drive air consumption LOADED relative as per bellcup used
Viscosity: 44.7 sec. Ford cup # 4 @ 80°F (27°C)
Fluid flow 75cc/min.
Rev.
(k Rpm)
Vortex
bellcup
(l/min.)
Negative
edge bellcup
(l/min.)
15 105 108
20 133 130
30 206 198
35 251 220
40 302 273
45 360 374
50 400 405
Fluid flow 150cc/min.)
Rev.
(k Rpm)
Vortex
bellcup
(l/min.)
Negative
edge bellcup
(l/min.)
15 110 110
20 150 138
30 211 205
35 266 250
40 320 299
45 390 370
50 401 410
DES01237
15
50
100
150
200
250
300
350
30
40
5020
400
0
75 cc/min
Air flow L/min.
Vortex bellcup
Negative edge bellcup
DES01238
15
50
100
150
200
250
300
350
30
40
5020
400
0
150 cc/min
Vortex bellcup
Negative edge bellcup
Air flow L/min.
