6. Assembly and disassembly (continued)
6.4 Turbine motor, injector, restrictor (continued)
6.4.1Disassembly (continued)

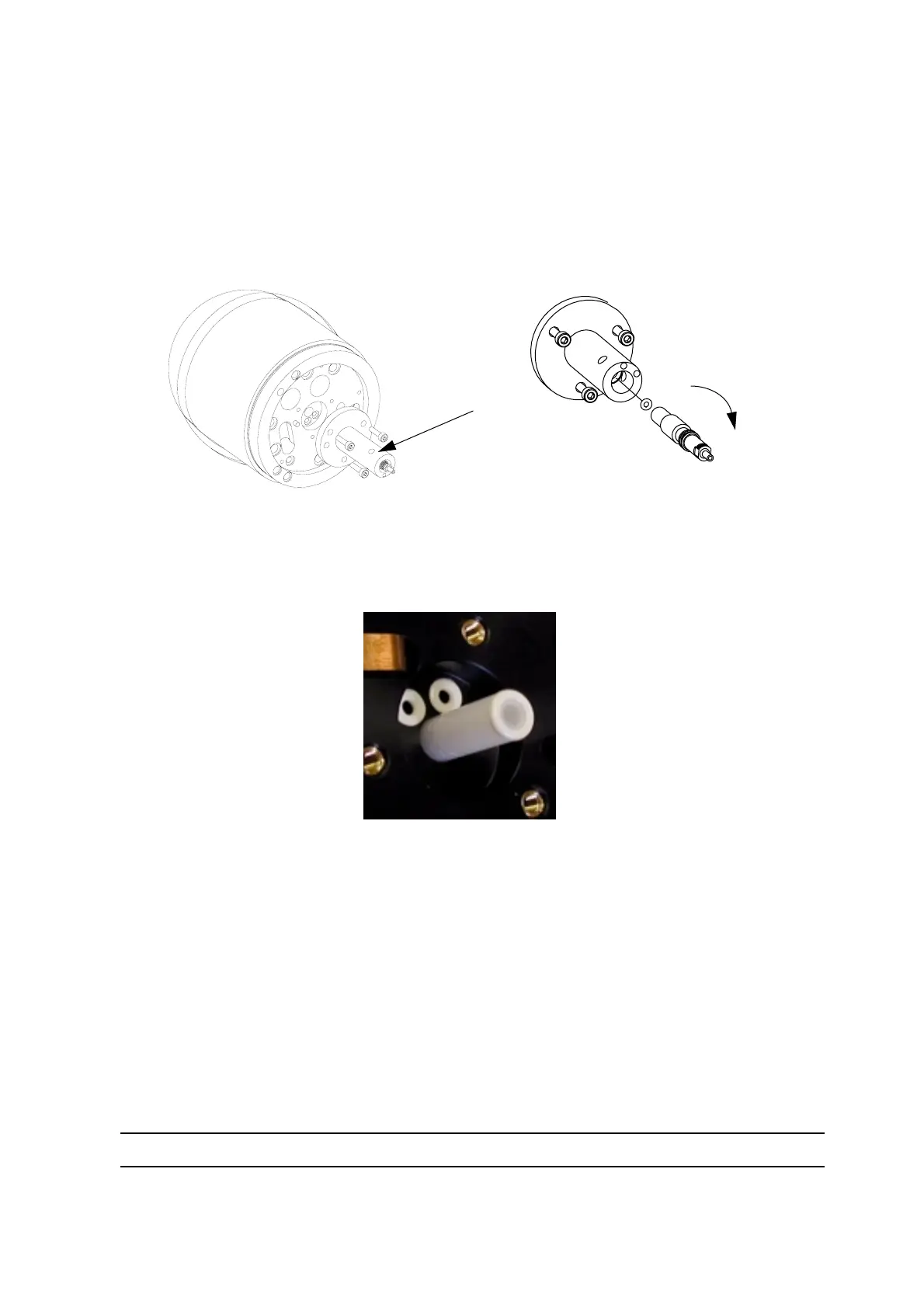

Injector and injector holder
• Step 1: Remove the 3 screws holding the injector holder in place with an allen wrench size 2.5mm.
Note: Left hand threads injector.
• Step 2: Remove the injector using the injector tool P/N 1408599 (left hand threads), being careful
not to damage the injector and/or the o-rings.
• Step 3: With the restrictor tool P/N 1408598 pull the restrictor out from the manifold. Be careful
not to damage the o-rings.
Note: The o-ring located at the bottom of the restrictor may remain stuck in the manifold housing after
removing the restrictor, make sure it is retrieved.
DES01509
DES01508
