Revised A 59 6301
6. Assembly and disassembly (continued)
6.4 Turbine motor, injector, restrictor (continued)
6.4.2 Assembly (continued)

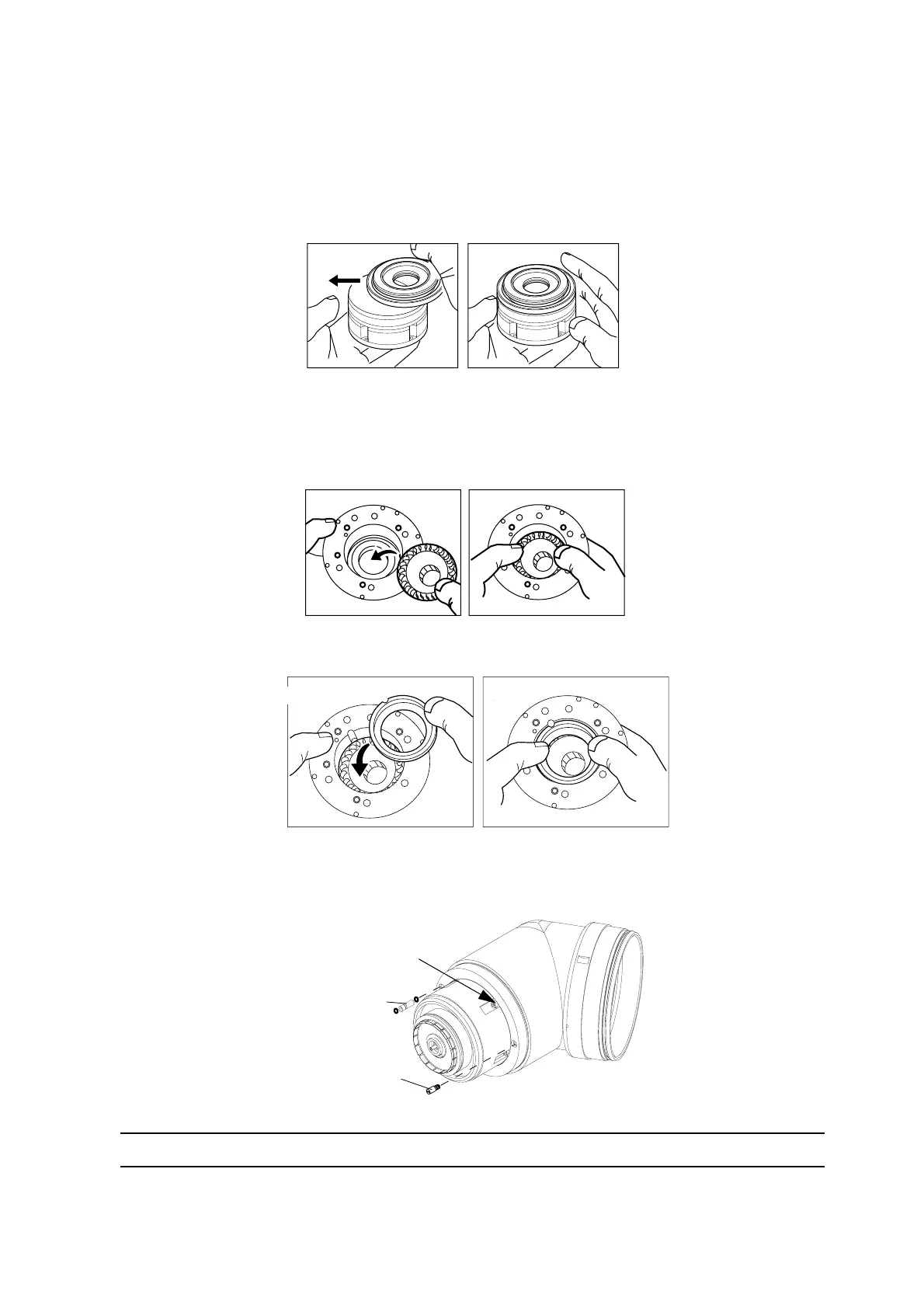

• Step 2: Center the rotor to the stator.
• Step 3: Insert the stator magnet into the stator.
• Step 4: Insert the turbine wheel into the stator and push in with the thumbs as illustrated. A click
should be heard if correctly in place.
• Step 5: Insert the deflector equipped with the o-ring and press in with the thumbs as illustrated.
• Step 6: Install the assembled turbine onto the manifold and secure with the 5 turbine mounting
screws, then install the solvent injector with o-rings and the shaping air alignment pin.
DES00347
5 6
DES00719
78
DES00720
9
10
DES01505
Injector solvent
Turbine mounting screw
Shaping air alignment pin
