Chapter 5. Product Structure 5 - 15
pressured bipolar pulse and sent to Probe.

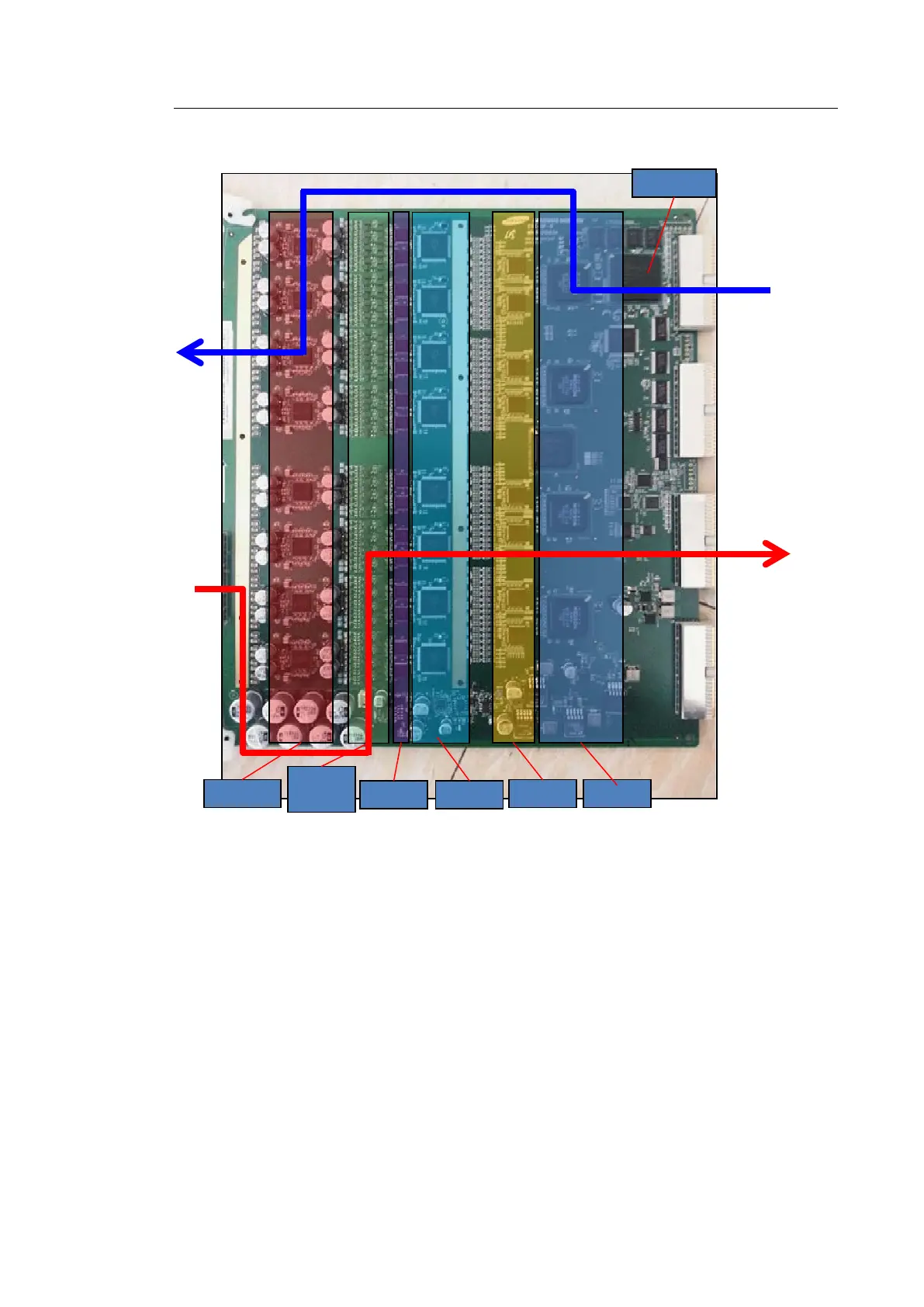

[Figure 5.6 Signal Path]
▐ Spectification
• TX Pulser 16 (HDL6M05585, 4CH)
• T/R switch 64CH
• Pre amp 32 (MAX2034, 4CH)
• TGC amp 8 (MAX2037, 8CH)
BFIC
ADC
TGC
LNA
T/R
switch
Pulser
TX Path
RX Path
FPGA
