5 - 26 HS70A Service Manual
PC Part
PC Module
▐ Main Functions
It implements existing Hardware DSC Board and Video Manager Board in the PC Part. Since
PC Module implements DSC Part through Software Program, the capability is very important.
COM Express Type II PC Module applies.
▐ Specification
• PC : Com-Express Industrial PC (ADLINK PC Module)
• CPU : Skylake i5 - 6440E
• RAM : DDR4 4GB Memory
• Storage : SATA SSD 512GB
• OS : WES(Windows Embedded Standard) 7
• Graphic : Internal Intel HD 4000 chipset
• Monitor : 23” Full-HD(1924 Ⅹ1080) LED Display
• DVD

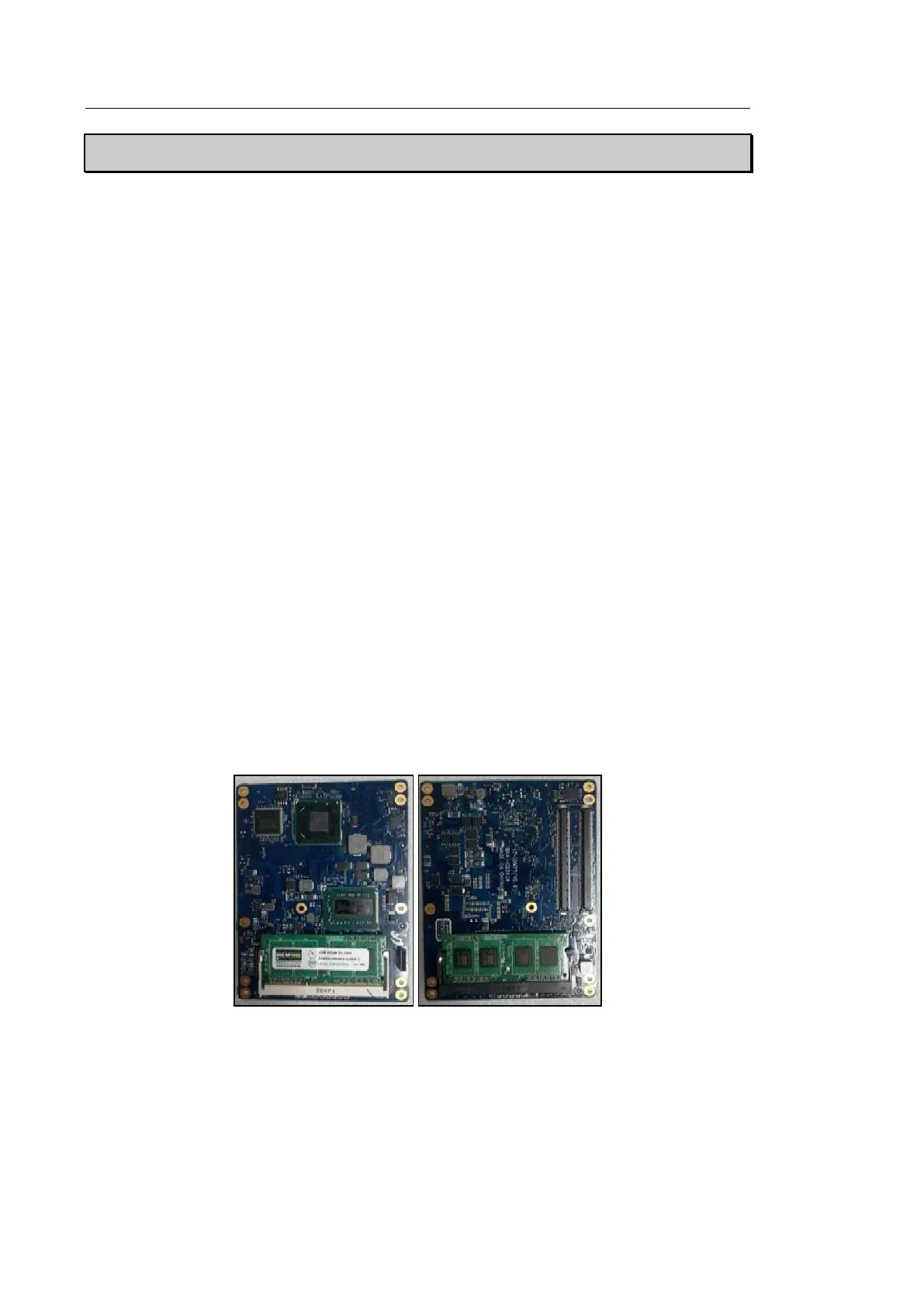

[Figure 5.10 PC Module]
