5 - 30 HS70A Service Manual
Power Supply
▐ Main Functions
Power supply for HS70A is designed to operate in 90V ~ 264V input voltage range. It is
designed to be used in any voltage and there is no need to adjust the power voltage.
INPUT Voltage Selector is used to set the voltage and power for the product and OUTPUT
Voltage Selector is used to set the power directly provided for the external devices.
AC voltage and DC voltage are generated; AC voltage is for external devices and PC Power
Supply, and DC voltage is to supply power for Ultrasound System Part.

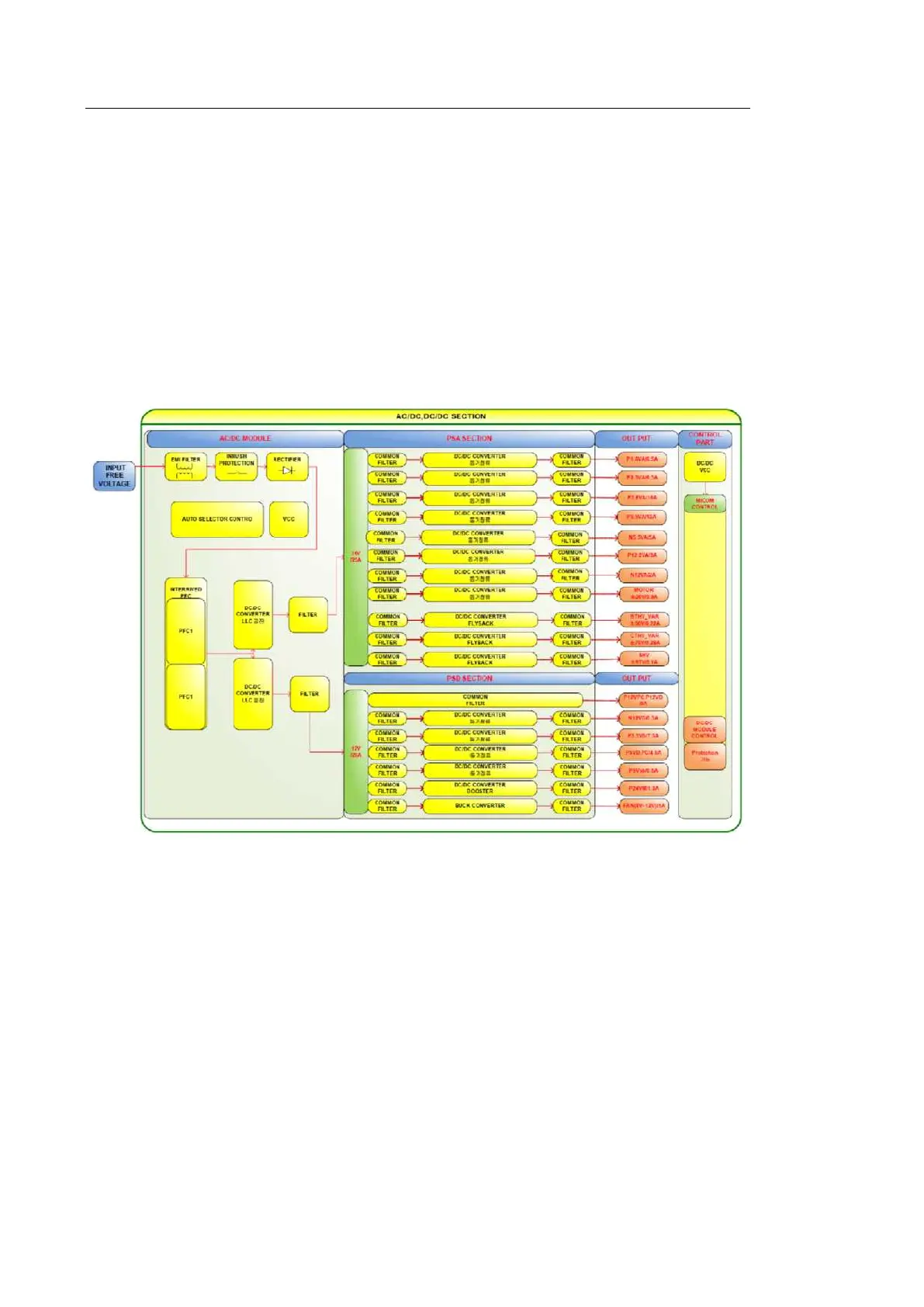

[Figure 5.13 Power supply Block Diagram]
To Next Page
