Chapter 5. Product Structure 5 - 33
Docking CP Board

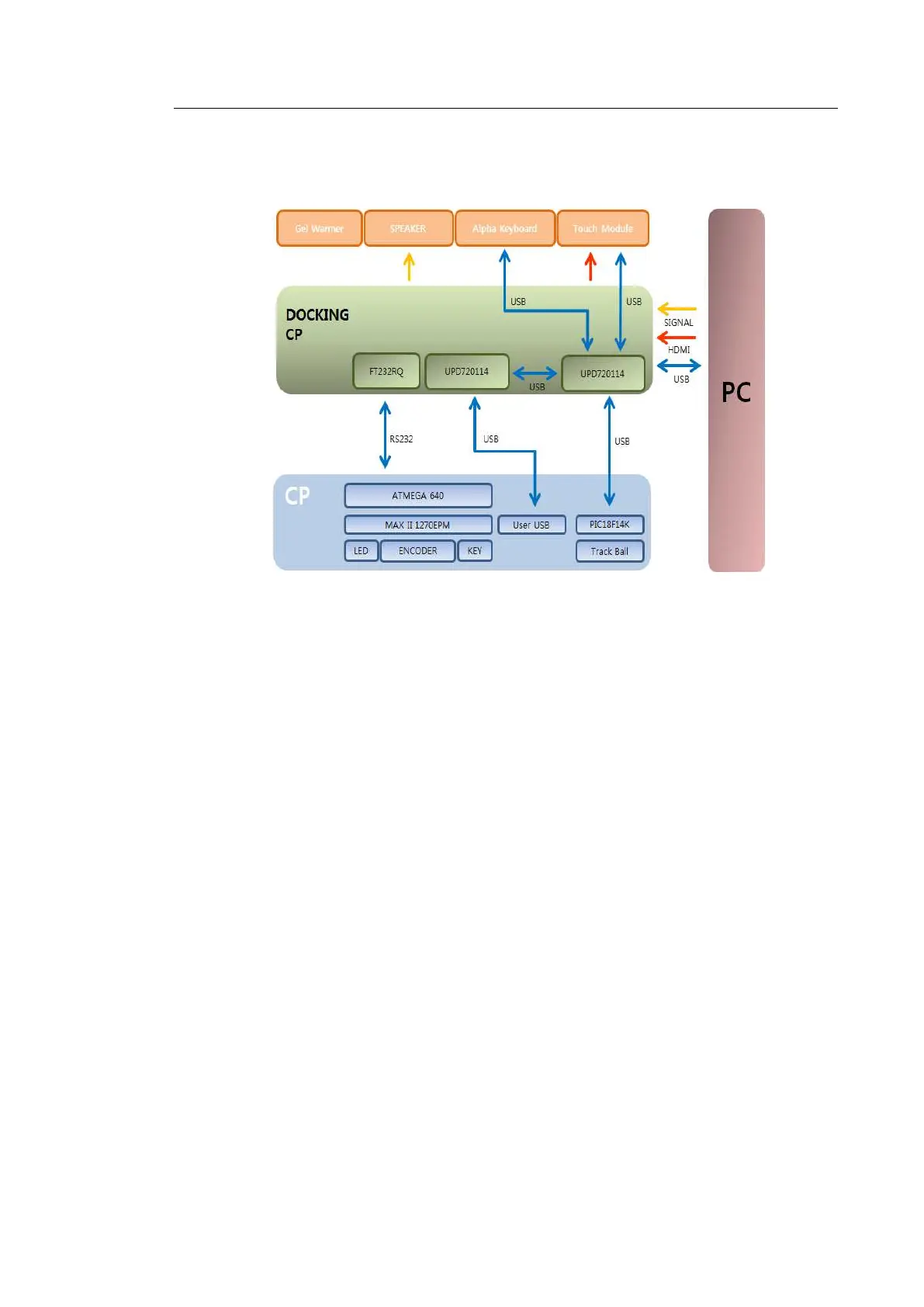

[Figure 5.17 Docking-CP Block Diagram]
▐ Specification
• UPD720114 USB HUB(2ea) - HUB2 (port1), touch Key (port2), alpha key (port3), trackball
(port4) connection
• Power part(PVX006A) - 12V input 5V output
• I/O part - Uses HDMI, Data, and USB Connector FT232 Chip to send the CP control
signal to PC.
• Hub part - Uses UPD720114 Chip (HUB) to connect each module to PC.
