Chapter 5. Product Structure 5 - 27
Software DSC
▐ Main Functions
It processes Hardware DSC with the Software DSC created with the Software Program.
Image signals generated by the BE Board are copied directly to PC Memory by using DMA,
where they are processed by Software DSC and the programs needed for ultrasound images,
to be implemented as images on the monitor through VGA card and DVI board.

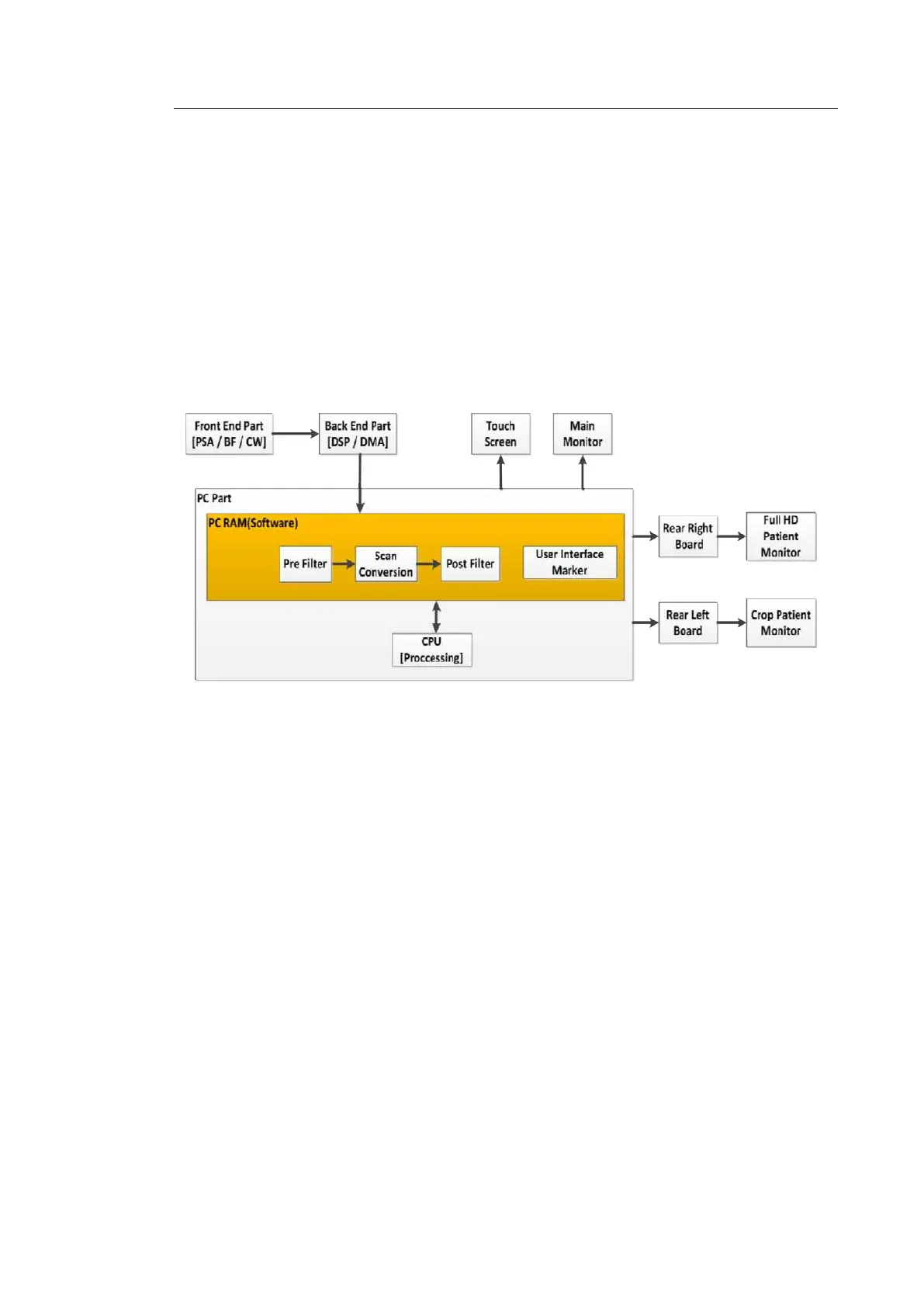

[Figure 5.11 Software DSC Block Diagram]
▐ Specification
• Cine for 5,140 frame
• Loop Review for 8,192 lines
• Zoom
• Edge Enhancement
• Multi-Slice View
• Dynamic MR (Optional)
• Quick Scan
• Real-Time Auto Calculation time Doppler Auto Trace
• Free Angle M-Mode
• Post measurement
• Post image optimizing process Arbitrary M mode
