Probes
Probes are devices that generate ultrasound waves and process reflected wave data for the
purpose of image formation.
For more information on probes, refer to ‘Chapter 5. Probes’ and the ‘Reference
Manual’.
▌ Connecting probes
To ensure the safety of the product and the probe, turn off the power before connecting the
probe to, or disconnecting it from, the probe port.
1. Connect probes to the probe ports on the front panel of the system. A maximum of five
probes including the CW probe can be connected at one time. The CW probe should CW
only be connected to its own port.
2. To install, turn the connector turning handle clockwise.

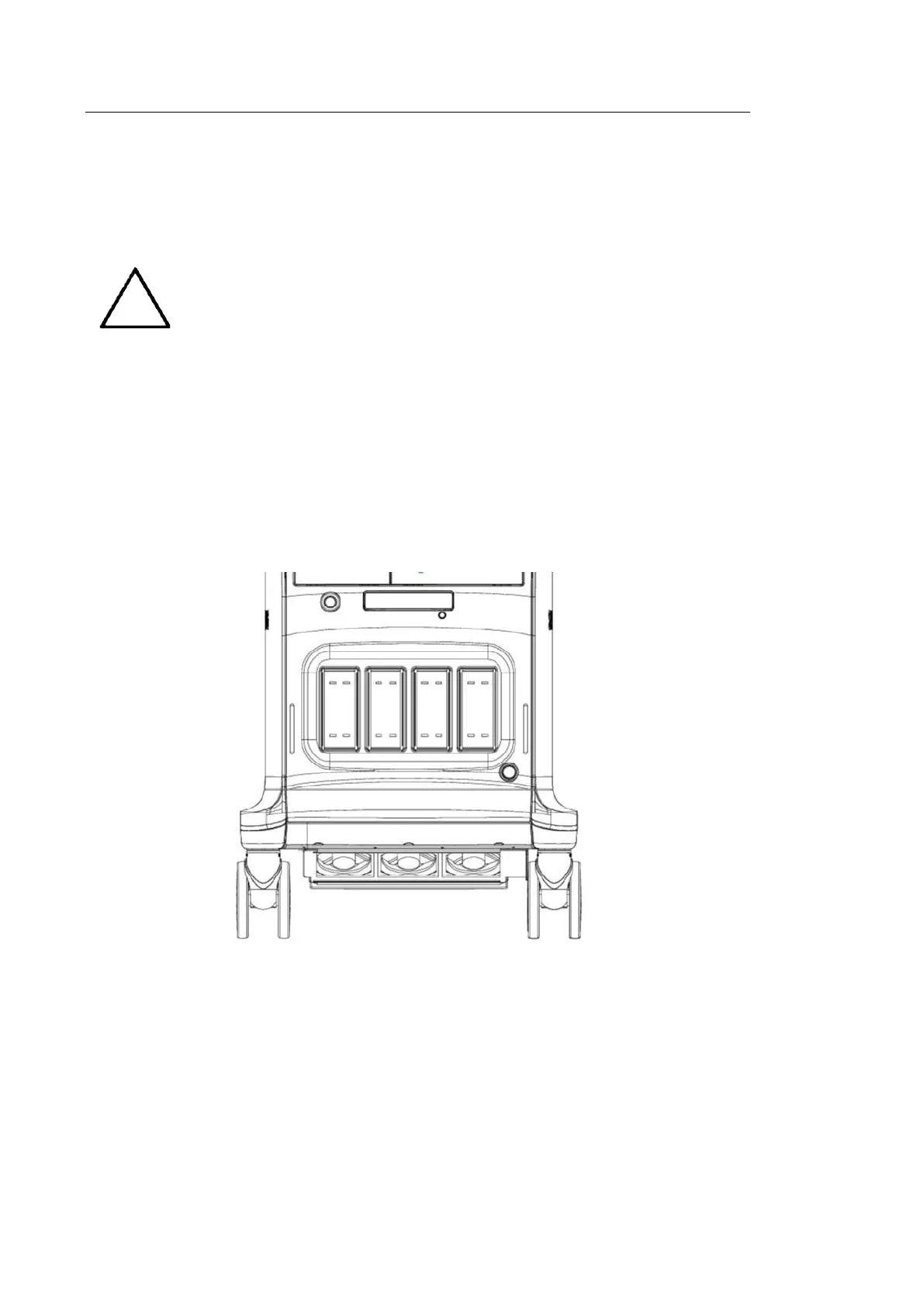

[Figure 2.11 Probe Ports]
