3 - 6 HS70A Service Manual
Power Cord Connection
Prior to connecting a power cord, verify that the voltage indicated on the power cord matches the
voltage rating of the place to install.
NOTE
The product may ship with the power cable connected to the console.

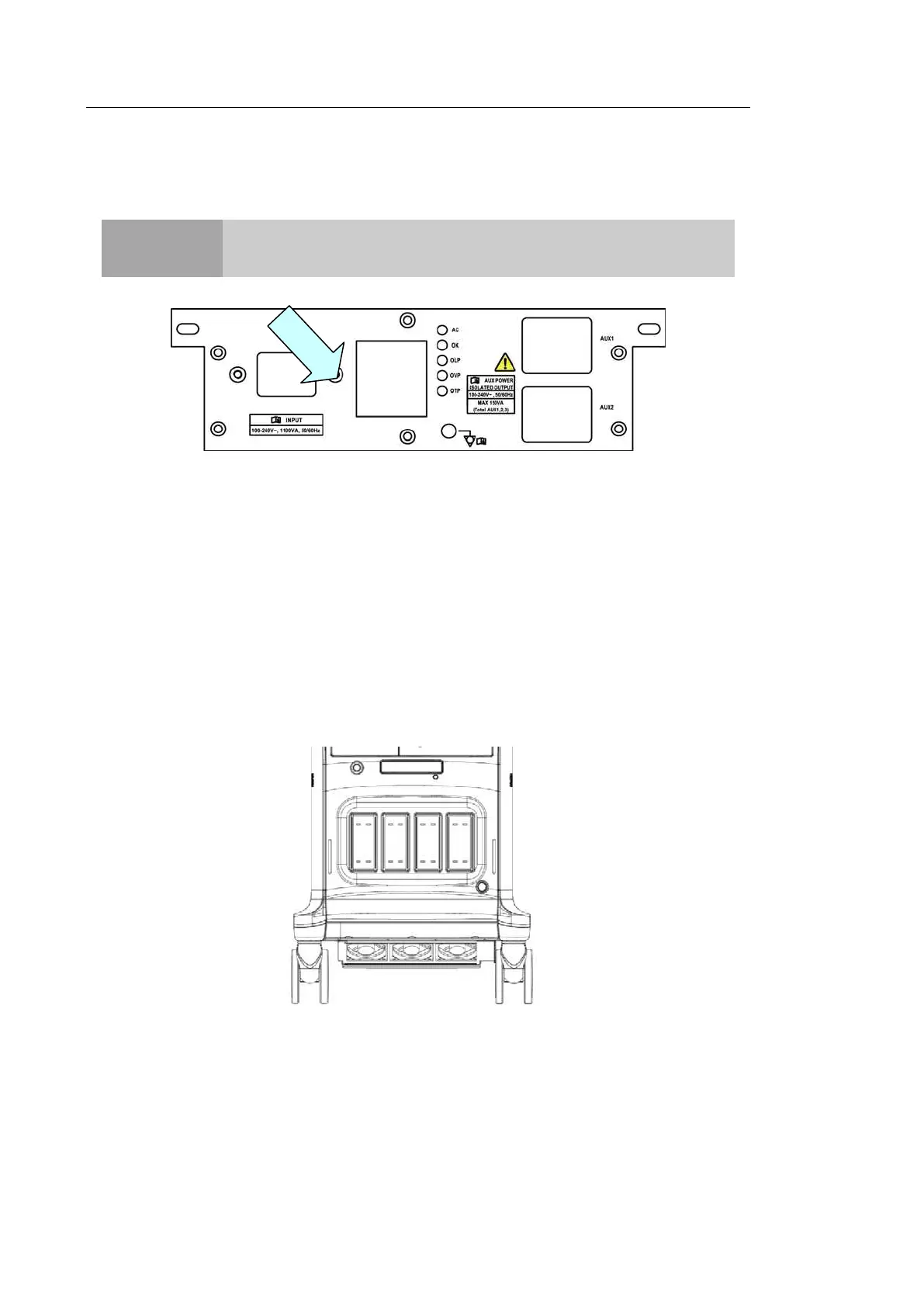

[Figure 3.3 Power Connection Part]
Probe Connection
Be sure to turn off the power before connecting or disconnecting a probe to ensure the safety of
the system and the probes.
1. Connect probes to the probe connectors on the front panel of the system. A maximum
of five probes including the CW probe can be connected at one time. The CW probe
should only be connected to its own connector.
2. To install, turn the connector turning handle clockwise.
[Figure 3.4 Connecting the Probe]
