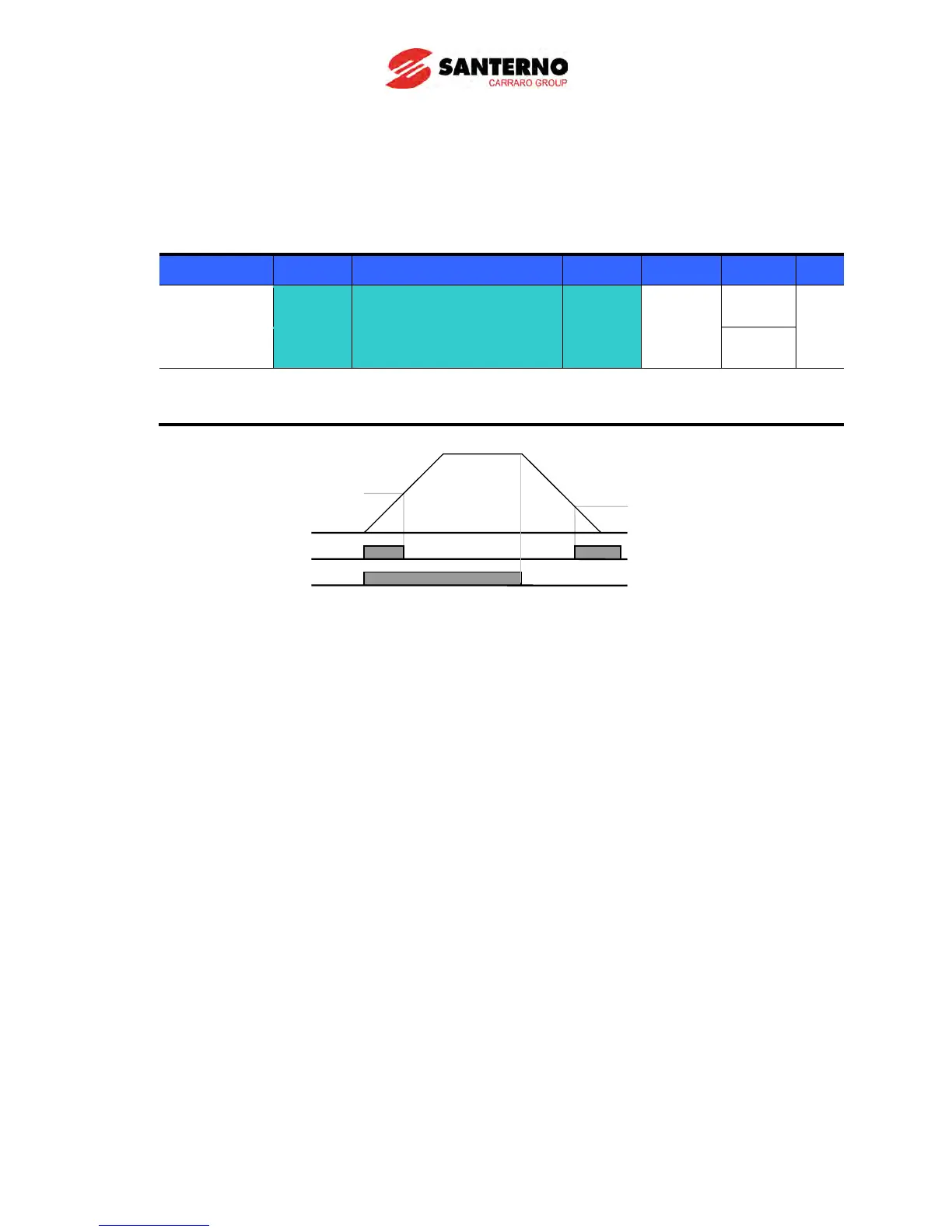

Santerno Sinus M - 11.5 Multi-function output terminal (MO) and Relay (3 AC)

11-11
 4: FDT-5
 Activated as B contact contrast to FDT-4.
Active condition:
Accel time: Run Frequency ≥ FDT Level
Decel time: Run Frequency > (FDT Level – FDT Bandwidth/2)
Group Display Parameter Name Setting Range Default Unit
I/O group
I52
[Detected Frequency
level]
-
0 ~ 400
30.00
Hz
I53
[Detected Frequency
Bandwidth]
-
10.00
 Cannot be set above Max frequency (F21).
 When setting I52 and I53 to 30.0Hz and 10.0 Hz, respectively
 5: Overload (OLt)
 Refer to page 12-2.
 6: Inverter Overload (IOLt)
 Refer to page 12-6.
 7: Motor stall (STALL)
 Refer to page 12-3.
 8: Over voltage trip (Ovt)
 Activated when over voltage trip occurs due to DC link voltage exceeded 400Vdc
for 2S/T class and 820Vdc for 4T class.
 9: Low voltage trip (Lvt)
 Activated when low voltage trip occurs due to DC link voltage under 180Vdc for
2S/T class and 360Vdc for 4T class.
 10: Inverter heatsink overheat (OHt)
 Activated when the heatsink is overheated.
 11: Command loss
 Activated when Analog (V1,I) and RS485 communication commands are lost.
Freq.
MO
Run
command
25Hz
30Hz
