13
Getting Started
Interface Pin Assignment Chart COM2
Model type CAISL (IP-44 protection)

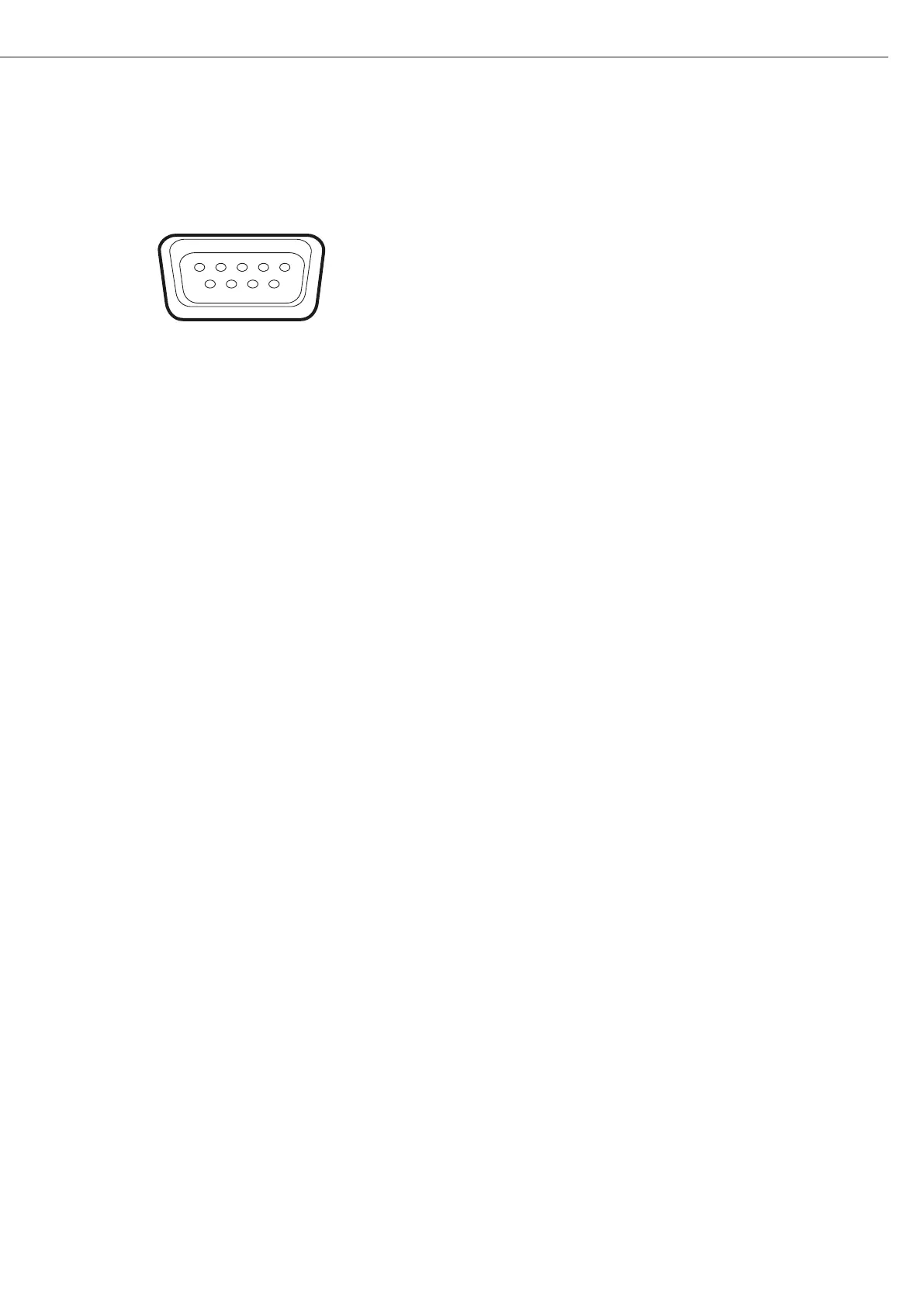

COM2 female connectors:
9-pin D-Submini female connector (DB9S) with screw lock hardware for cable gland
Recommended interface connector:
9-pin D-Submini (DB9) with shielded cable clamp assembly and shield plate and
fastening screws (Amp type 164868-1)
Pin assignment:
Pin 1 +5 V out
Pin 2 Data output (TxD)
Pin 3 Data input (RxD)
Pin 4 Clear to Send (CTS)
Pin 5 Internal ground (GND)
Pin 6 Reset
Pin 7 Not assigned
Pin 8 Data Terminal Ready (DTR)
Pin 9 Load Printer
