Function Allocation of the J Key for Linearization and
Setting/Deleting the Preload
Purpose
The J key is normally used for the calibration/adjustment function. The following
additional functions can be allocated to the key when the Service mode is activated:
– External linearization with default weights
– External linearization with entered linearization weights
– Internal linearization (for external IS platforms only)
– Set preload
– Delete preload
3
Once linearization has been completed, or after a preload has been set or deleted the
function of the J key must be reallocated back to its original function in the Setup menu,
e.g. external calibration/adjustment with default weights.
Procedure
t Remove the cap.
t Slide the menu access switch to the left (= “open" position).
t Activate the Service mode, see “Service Mode."
t Select weighing platform “WP 1" in the “Device Parameters" menu item.
t If the “Internal" setting is not already activated (marked by “o"), select the setting
using the “
Q" or “q" soft key and confirm with “O."
y The menu for the “WP-1 INTERNAL" device parameters is displayed.
t Use the “Q" or “q" soft key to select and open the “Calibration/
adjustment" menu using “O."

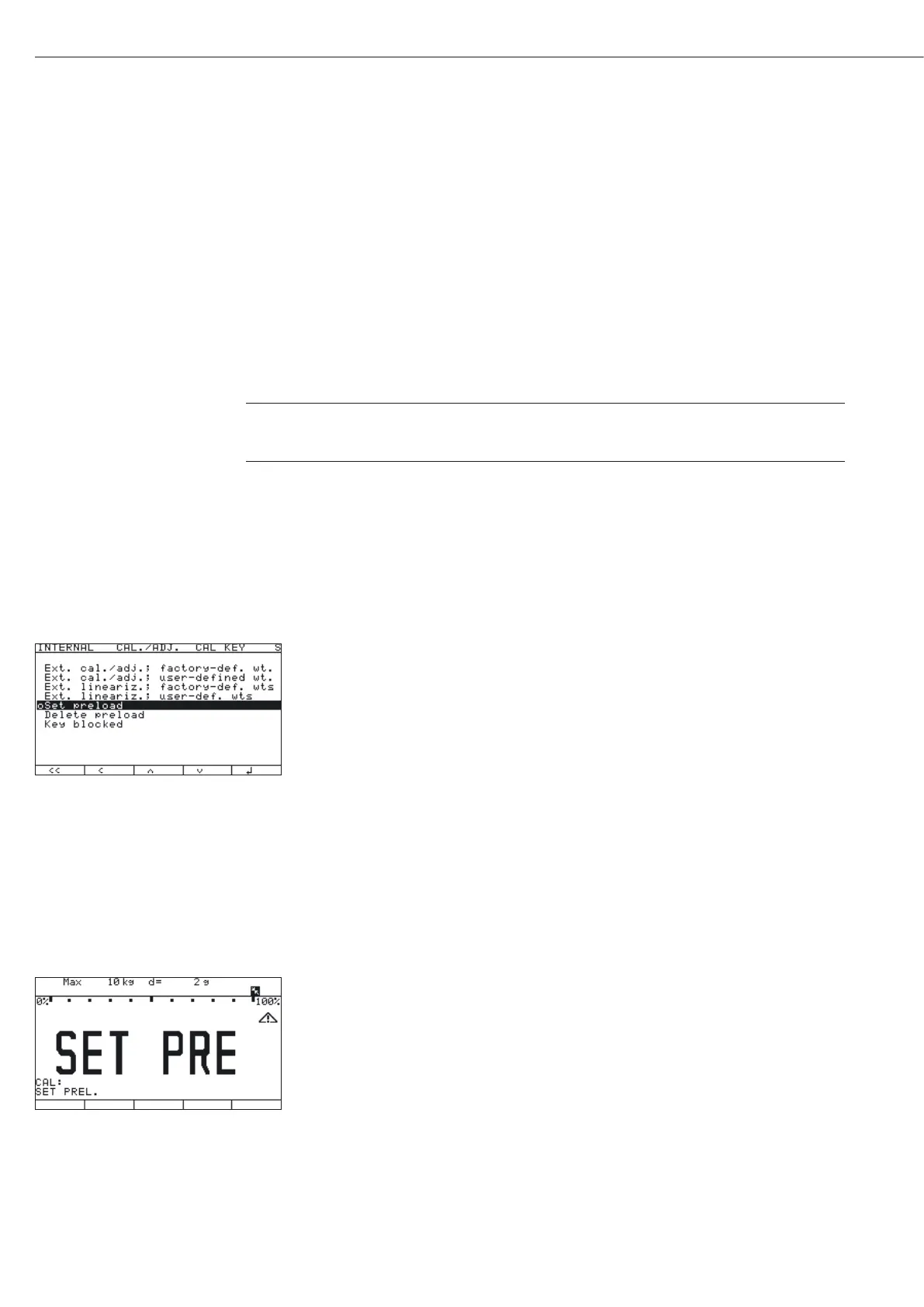

y The “CAL key function" submenu is displayed.
t Use the “Q" or “q" soft key to select the corresponding menu item and confirm with “l."
y The menu item is marked by a circle “o."
Note
The functions that can be configured in the “
CAL key function" submenu
depends on the selected weighing platform and its configuration data.
Functions that cannot be accessed are not displayed in the selection screen.
Note
The function set in the “
CAL key function" menu is carried out in the normal
weighing mode because when you exit the Setup menu the Service mode is deactivated.
To perform the function on a digital weighing platform (such as an IS platform), however,
it must be carried out in Service mode.
t The procedure is as follows: after selecting the desired function and exiting the Setup menu,
reactivate Service mode again and then exit the Setup menu immediately by pressing the
M key or the “
oo" soft key.
y The scale is now in Service mode without this being displayed.
t Trigger the previously set function using the J key.
y The display shows “S_CAl:" indicating that the scale is in Service mode.
t The corresponding menu item can be selected using the “Select" soft key and carried
out using the J key.
t If you cancel the function using the ( key or by restarting the scale using the e key,
you will exit the Service mode.
40
Configuring Weighing Platforms
