Menu Operating Design

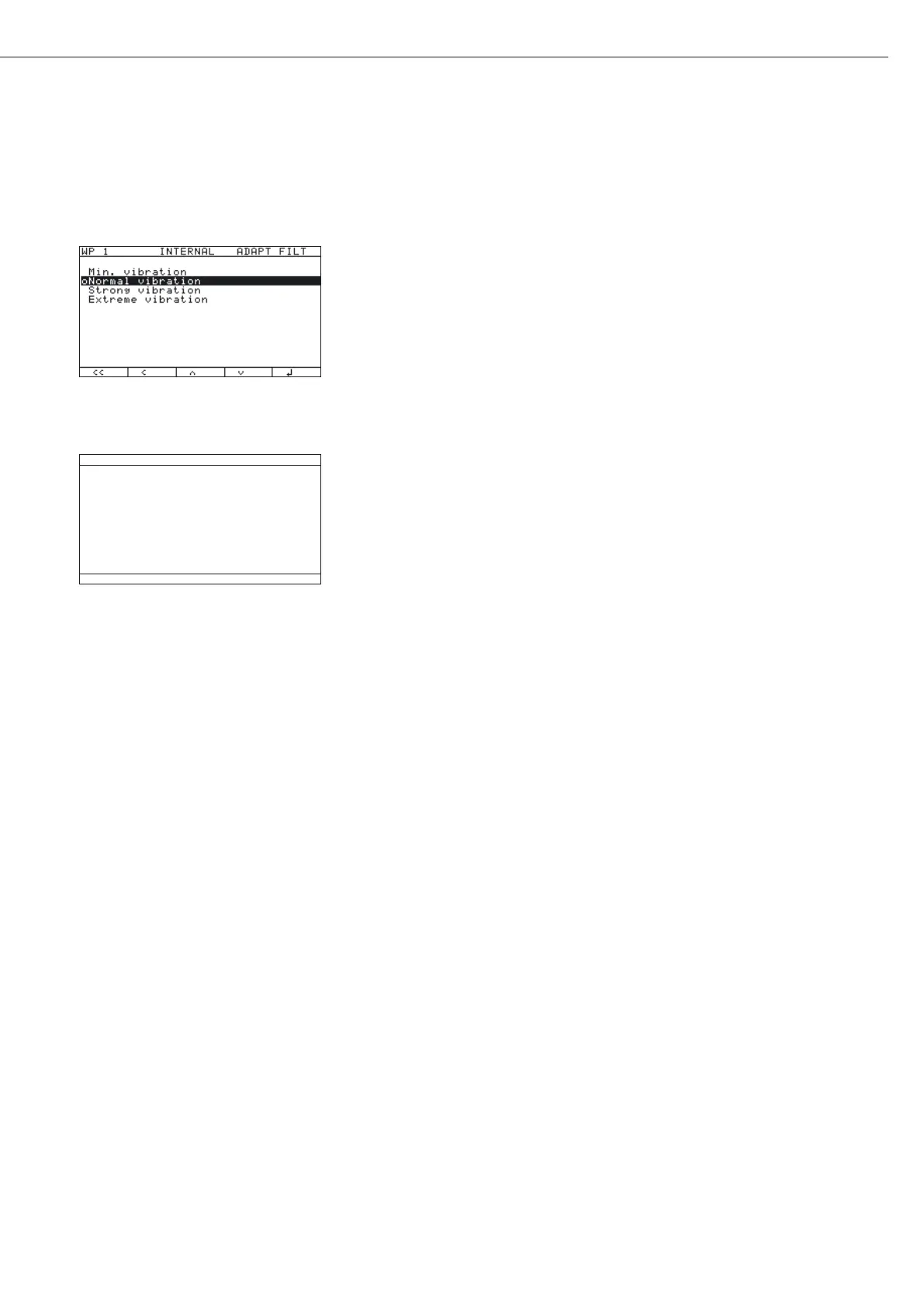

Operating example: Setup:Device parameters:
WP 1:Internal:Adapt filter
o Marks the current menu setting
Configuring parameters:
t Soft key “Q" or “q": Parameter settings
t Soft key “l": Confirm parameter
t M or “oo": Exit Setup menu
Menu display
Display Mode for Configuration and Information (Setup)
The display is divided into three sections.
Status Line
Indicates the function of the current screen page. In the Setup program, this line shows
the “path” to the data displayed.
Input and Output Window
For input and display of detailed information; e.g., for the selected application.
Selected items are displayed inversely (white letters on a black background).
Soft key labels
See the description in this section.
Saving Menu Settings
The parameters selected in the menu remain saved when you switch to weighing mode or
turn off the device.
You can block access to the Device parameters menu by requiring a password to prevent
unauthorized or accidental setting changes (see also “Setting up Password Protection").
