Configuring Weighing Platforms
Analog/Digital Converter (ADC) Configuration
The weighing platform must already be connected.
Open the menu access switch
The menu access switch is located on the back of the indicator right next to the weighing
platform connection.
t Remove the cap.
t Slide the switch to the left (= “open" position).
Activating the Service Mode
t See “Service Mode" on page 17.
Configuration
t Select weighing platform “WP 1."
t If the “Internal" setting is not already activated (marked by “o"), select the setting
using the “
Q" or “q" soft key and confirm with “O."
y The message “Function active" appears briefly. The “WP 1 internal" menu
will then open.
t Open the ADC Configuration menu.

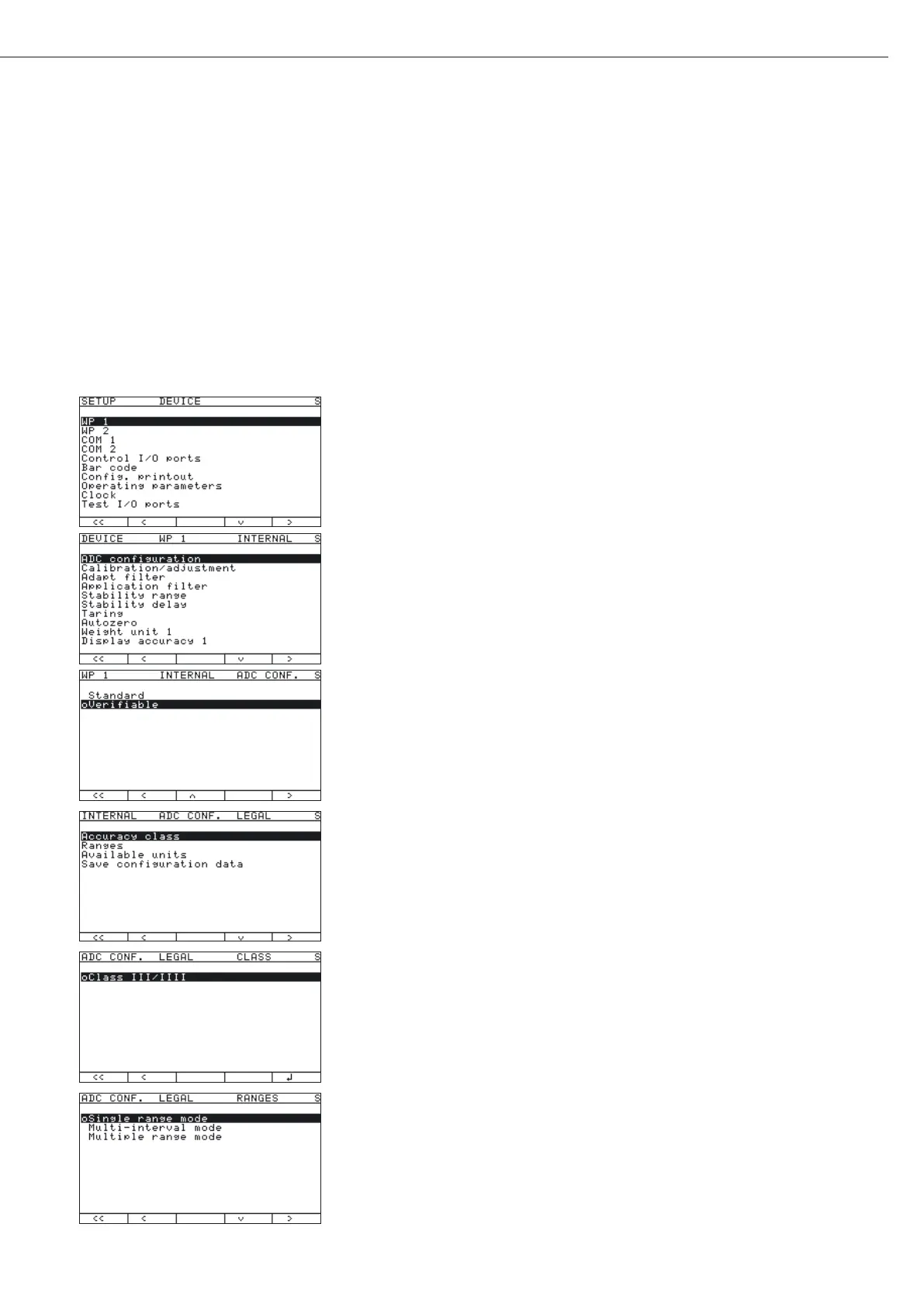

t Select the desired configuration data record using the “Q" or “q" soft key:
“
Standard" or “Verifiable" (verifiable configuration). The default setting
depends on the data record.
t Open the menu for configuring A/D converter parameters. In this example, the menu for
ADC configuration of a weighing platform for use in legal metrology is opened.
If “
Standard" was selected previously, then the “Accuracy class" is not
displayed.
t Open the first menu item.
For a standard configuration, the “
Ranges" menu item, for a verifiable configuration,
the “
Accuracy class" menu item.
When the “Verifiable” configuration is active, always select the “
Accuracy
class" menu item first.
t Set accuracy class l/m. The “o" symbol should mark the setting, if required confirm
using the “l" soft key.
t Press the “o" soft key to exit the menu item.
Open the “
Ranges" menu item.
In the example shown here, “
Single range mode" has been selected (marked
by “
o").
t To select a different weighing range configuration, use the “Q" or “q" soft key to select
the corresponding line and open the selected menu using the “
O" soft key.
y The selected weighing range configuration is now active. When you return from the
input menu for entering the weighing range parameters, the new range configuration is
marked by a “
o."
For more information about range configuration, please see “Setting Parameters for ADC
Configuration."
