The default values displayed depend on the data record loaded and might have to be
changed. In the example shown here, the A/D configuration is set with a “Verifiable”
data record in single-range mode.
Single-range mode
t Select the individual input fields using the “Q" or “q" soft key.
t For numeric input: use the 0 ... 9 keys and the . key (decimal point). Make
corrections using c.
t Confirm using the “l" soft key.
If other parameters follow the one just entered, the highlight bar is automatically
positioned on the next input field.
To cancel numbers entered: press the “
ESC" soft key.
t Use the “o" soft key to go to the next menu level.
y This will apply all parameters.
t Press M or “oo" to exit the Setup menu.

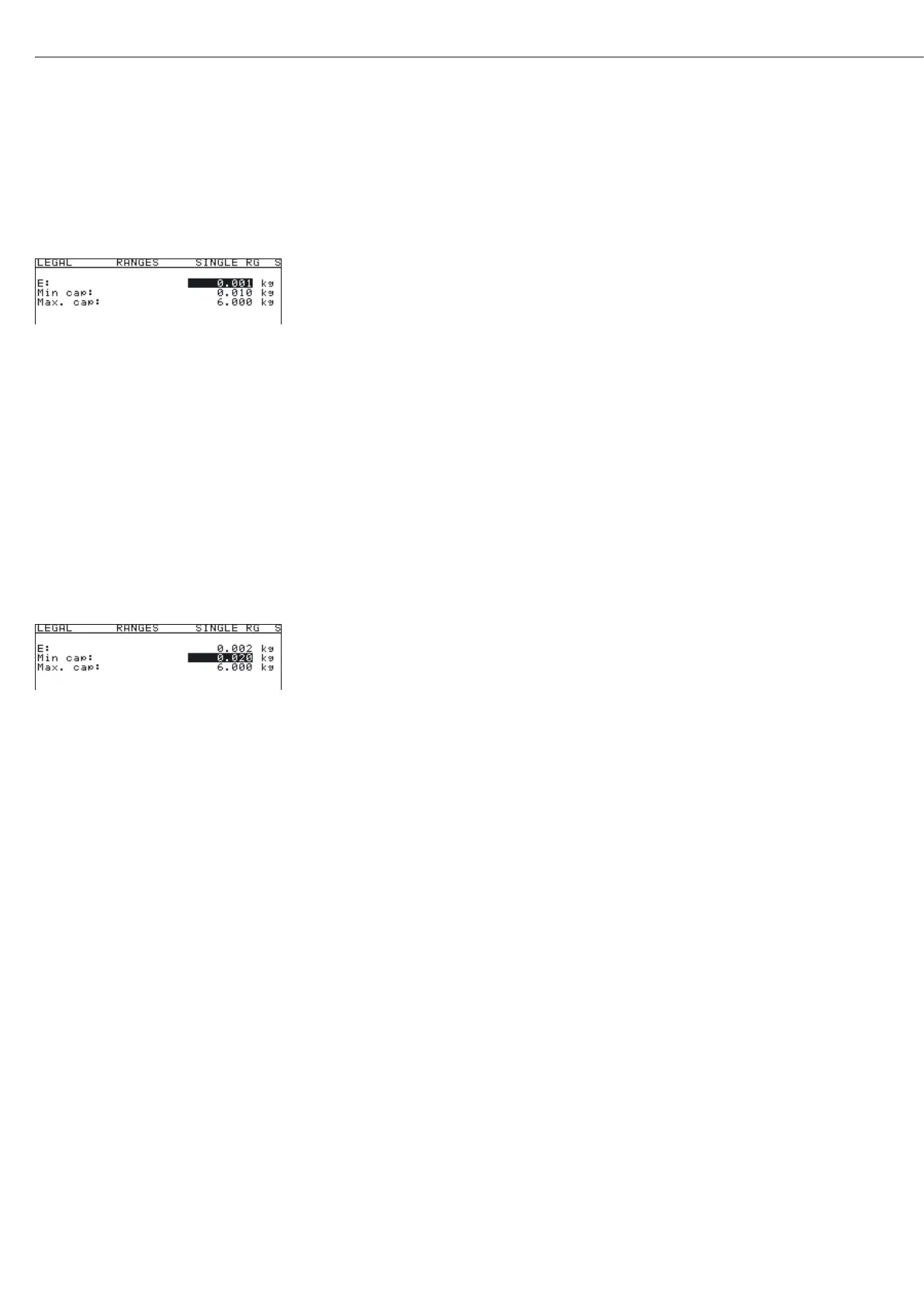

In the example shown here, a single-range scale in “Verifiable” configuration with a
maximum capacity of 6.000 kg is modified; the verification scale interval e is changed
from 0.001 kg to 0.002 kg, in accordance with the maximum permitted value of 3000
verification scale intervals. Press the “l" soft key to confirm the changed value.
The highlight bar is automatically positioned on the “
Min. cap." field.
The following values apply for the minimum load for verifiable scales:
– For class l: Min. cap. = 20 e
– For class m: Min. cap. = 10 e
A verification scale interval that is changed, therefore, also affects the minimum load.
Changing the verification scale interval “e" is automatically applied to the “Min. cap."
You can also change this value manually:
In the example, the minimum capacity must be increased to 0.04 kg for class l.
t Press the following keys in sequence: 0.040and confirm using the “l."
y The highlight bar is automatically positioned on the “Max. cap." field.
t The value for the maximum capacity is not changed. For this example, the input of
parameters for single-range mode in the “Verifiable” configuration is now concluded.
t Use the “o" soft key to go to the next menu level.
24
Configuring Weighing Platforms
0.002
