3 Installing the Instrument
3.1 General
Before starting work, please read Chapter 1 and follow all instructions.
Further procedures:
• Check the consignment: unpack the components specific to the application.
• Safety check: inspect all components for damage.
• Make sure the on-site installation is correct and complete including cables, e.g. power cable fuse
protection, load cells, cable junction box, data cable, console/cabinet, etc.
• Follow the instructions for installation of the unit relating to application, safety, ventilation, sealing and
environmental influences.
• Connect the cable from cable junction box or platform/load cell.
• If applicable: connect other data cables, network cables, etc.
• Connect the instrument to the supply voltage.
• Check the installation.
3.2 Connections

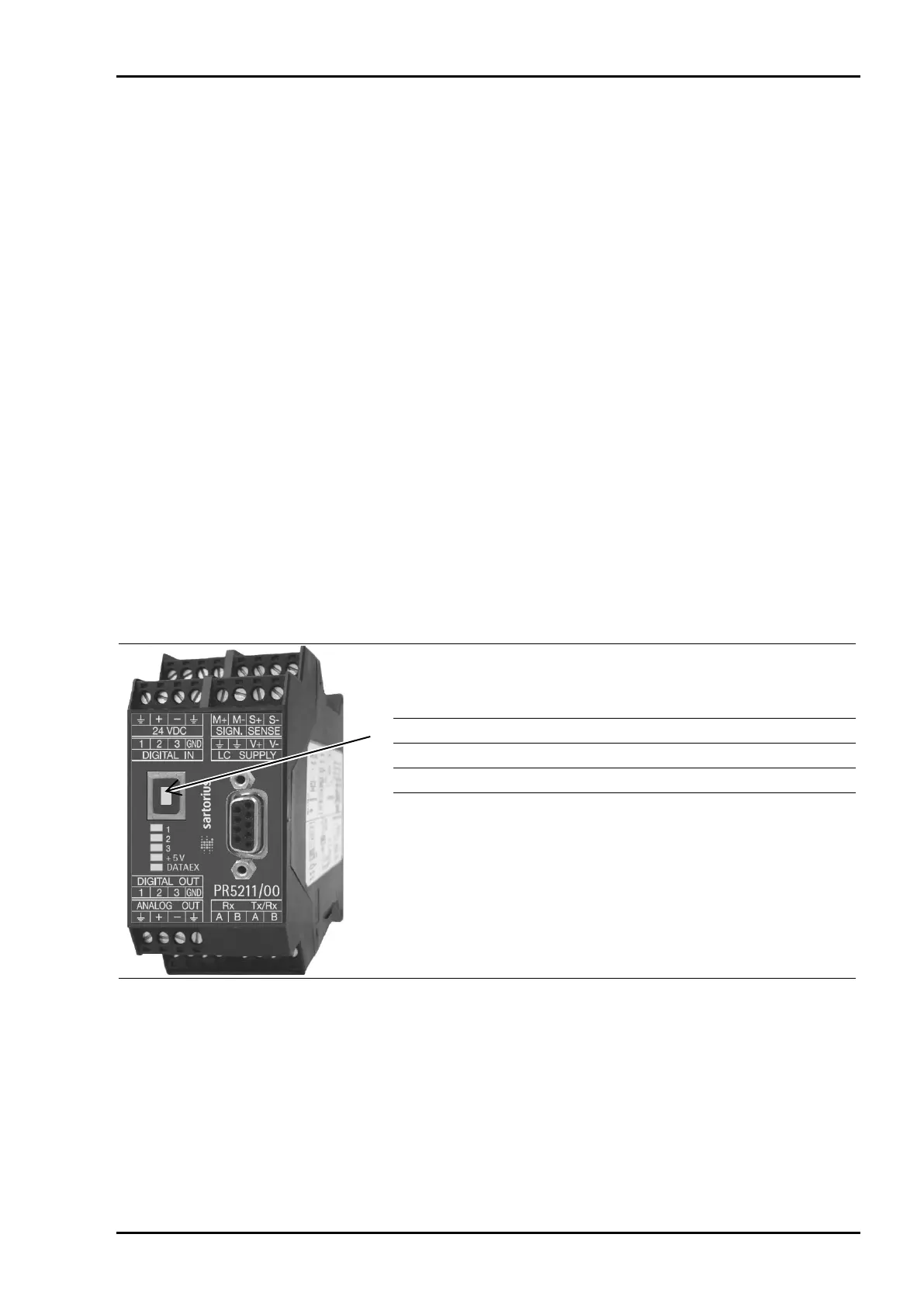

3.2.1 USB Interface
The configuration and calibration can be carried out from the PC program ConfigureIt! Via (release 6.00 or
higher) the USB interface, see Chapter 4.4 and 4.5.
Connection
USB-B connector
Connection cable
USB 2.0 A>B
Cable length
Max. 5 m
