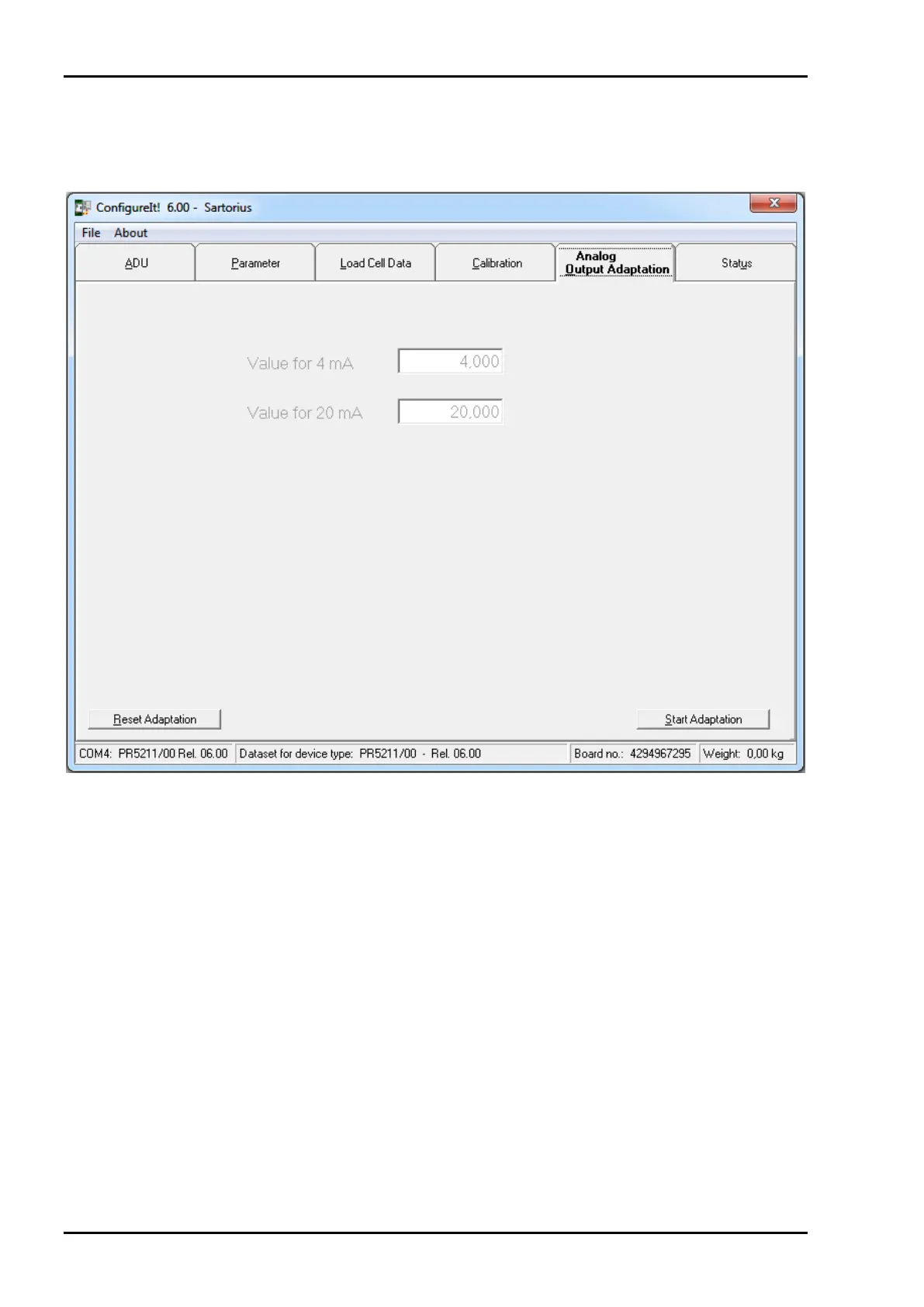

4.12 Analog Output Adaption
For PR 5211/00 and PR 5211/10 only.
The analog output current is at the receiver side usually routed over a resistor, measured as voltage and
then digitized. The errors of this transfer chain can be compensated in the instrument.
With this menu the points for 4 and 20 mA can be individually adapted, so that they are precise again at
the receiver side.
The adaptation is done in several steps:
1. step: Press [Start Adaption].
2. step: The analog output is set to 4 mA. Measure the current at the receiver side and enter the value
of the measured current, e.g. 4.002 mA.
3. step Press [next].
4. step: The analog output is set to 20mA. Measure the current at the receiver side and enter the value
of the measured current, e.g. 20.003 mA.
5. step Press [next].
The current on the receiver side is now corrected to 4.000 mA and 20.000 mA.
With [Reset Adaption] the values are reset to [4,000] and [20,000].
