PR 5211 Instrument Manual Installing the Instrument
Sartorius EN-23
3.2.7 ProfiBus Interface (for PR 5211/00 and PR 5211/11 only)
Communication protocols and syntax comply with the ProfiBus-DP standard to IEC 61158 with transfer
rates up to 12 Mbit/s.
Transfer rate
9.6 kbit/s to 12 Mbit/s,
baud rate auto-detection
Protocol
PROFIBUS-DP-V0 slave
to EN 50 170 (DIN 19245)
Max. 126 nodes possible.
Watchdog timer
Configuration
GSD file (‚gwt_5211.gsd’ stored on the CD in
directory ‘Fieldbus’)
Cable
Special ProfiBus color: violet
shielded twisted pair cable
Cable impedance
150 ¥
Electrical isolation
Optocoupler
Cable length
Max. distances 200 m @ 1.5 Mbit/s

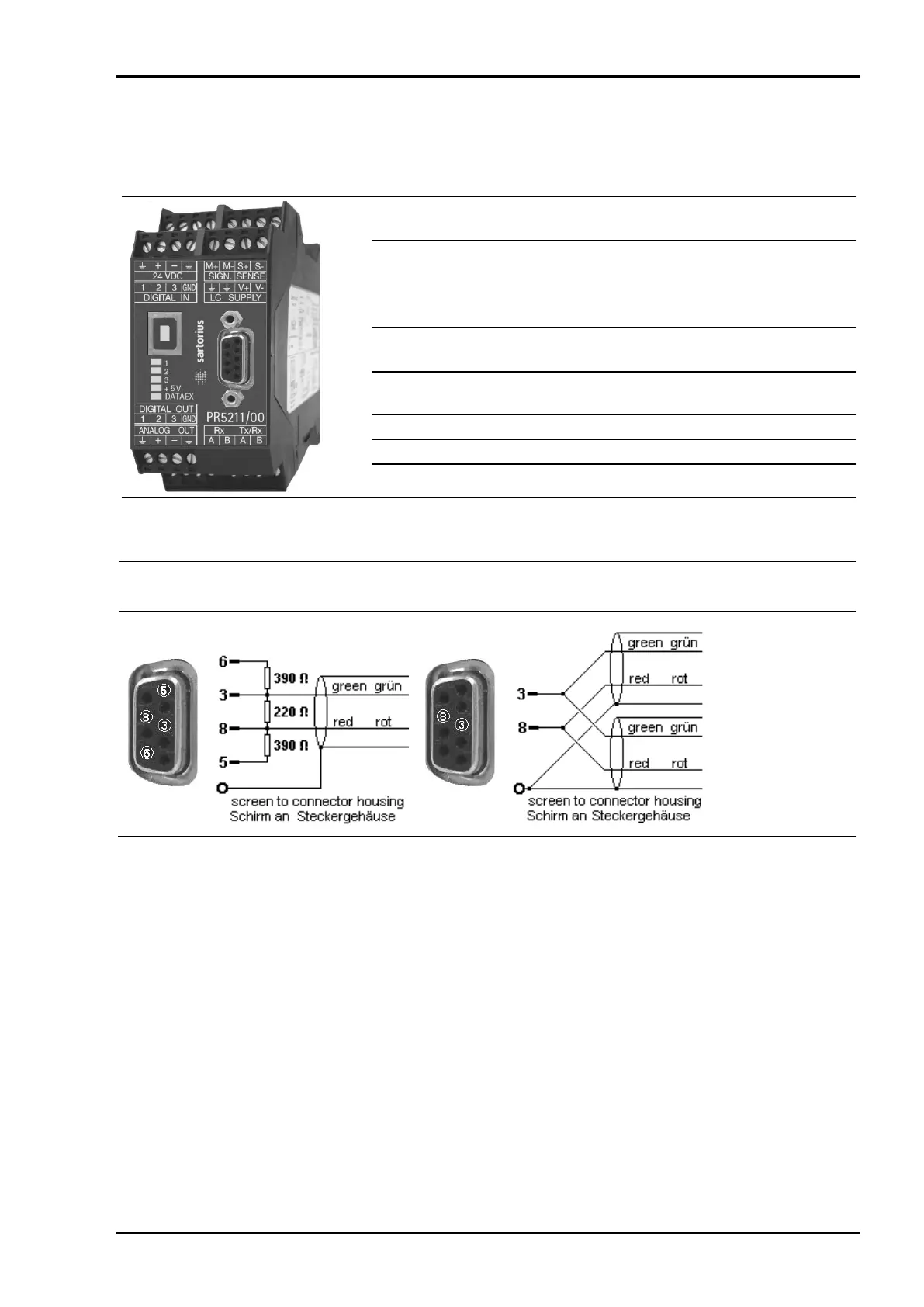

The ProfiBus connection is done via the 9-pin D-Sub connector (female) on the front.
Transmitter is the only or the last slave on
the bus
Transmitter is not the only/
not the last slave on the bus
PIN Signal
3
4
5
6
8
RxD/TxD-P
CNTR-P
DGND
VP
RxD/TxD-N
