Installing the Instrument PR 5211 Instrument Manual
EN-22 Sartorius

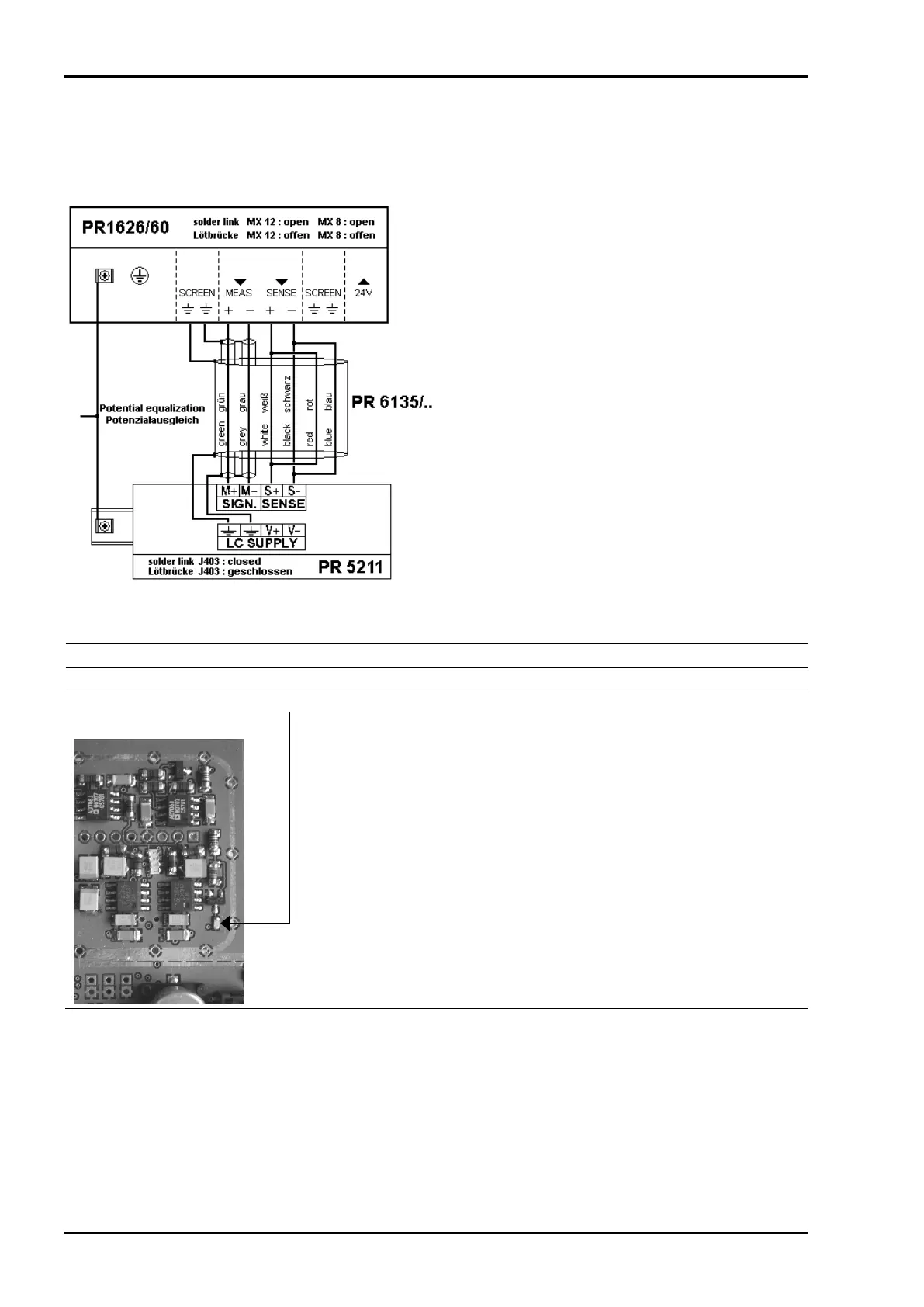

3.2.6.6 Connection via PR 1626/60
The connection to the PR 1626/60 has to be done as follows, for general connections please refer to the
PR 1626/60 manual.
For 7.5 V DC load cell supply, the following settings are required:
Device Component Action
PR 1626/60: Solder link MX 8 must be fitted on the interface p.c.b., see instrument manual.
PR 5211/xx: Solder link J300 must be opened on the A/D converter print
(0 ¥ resistance removed).
Note:
Delivery condition: Solder link is closed with 0 ¥ resistance.
When J300 is open; Sense voltage monitoring is switched off!
