PR 5211 Instrument Manual Commissioning
Sartorius EN-31

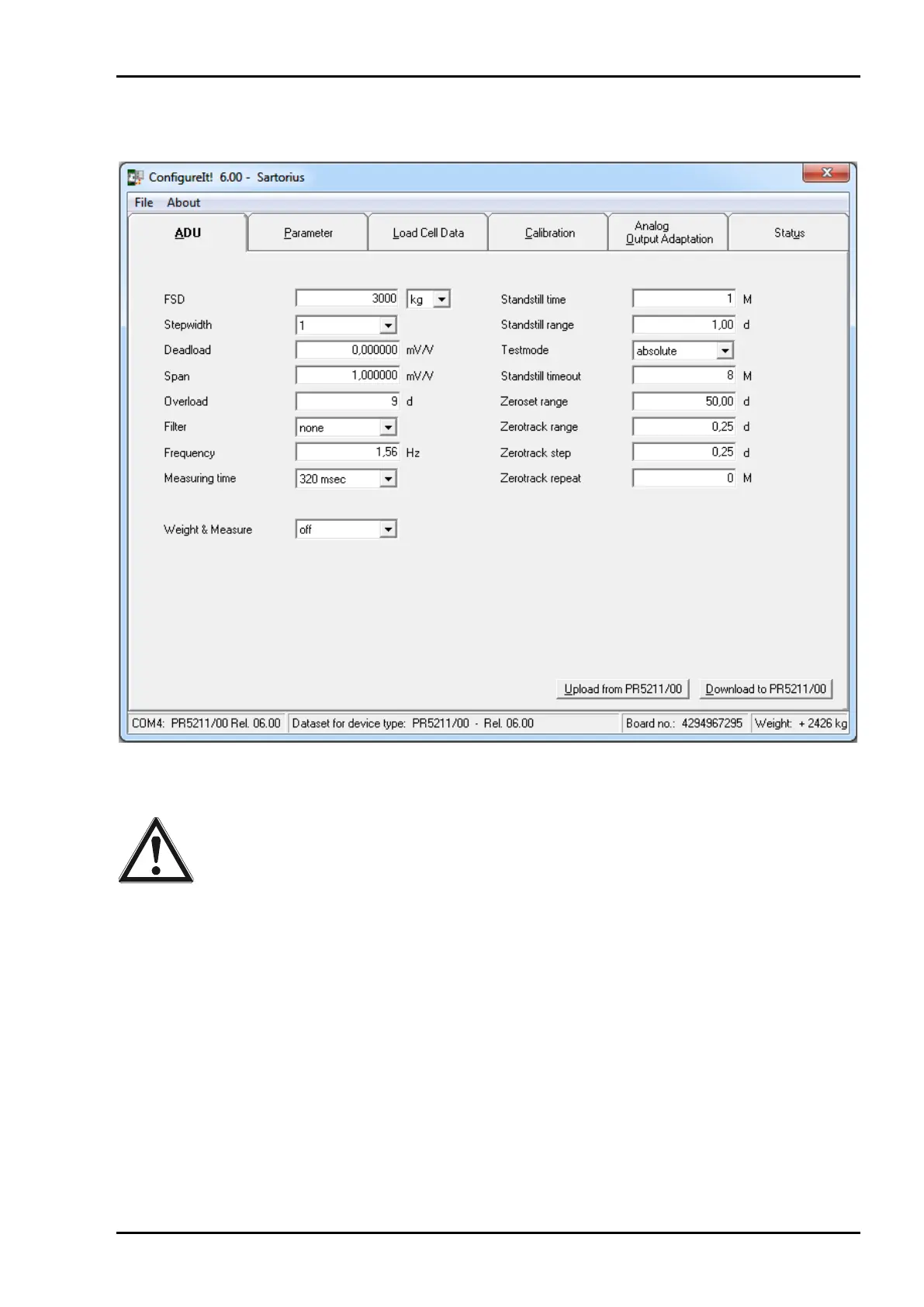

4.9 ADU
4.9.1 Calibration
With this menu calibration data can be read and written. The calibration of the scale is
done with the menu 'Calibrate'!
See chapter 4.11.
4.9.1.1 FSD (Full Scale Deflection, Max)
The full scale deflection (FSD) determines the maximum weight which can be measured.
overall weight range
within 0.100 and 9999900
in mg, g, kg, t or lb.
The value must be divisible by the step width and can have max. 5 digits behind the decimal point/comma.
The default value is 3000 kg.
4.9.1.2 Scale interval (stepwidth)
The scale interval which is valid for the total scale range has to be selected: 1, 2, 5, 10, 20, 50, default: 1.
