3.2.3 Analog Output
For PR 5211/00 and PR 5211/10 only.
Connecting method
4-pin plug-in terminal block
Number of outputs
1 current output, output voltage by
use of external resistor
Output
Gross, net weight
Range
0/4…20mA, configurable via setup
Resolution
e.g. 0 - 20 mA in max. 40.000 parts
Linearity error
@ 0 - 20mA: <0.05 %
@ 4 - 20 mA: 0.025 %
Temperature error
<100 ppm/K
Load
0…500 ¥ max.
Protected against short circ.
yes
Potential isolation
yes

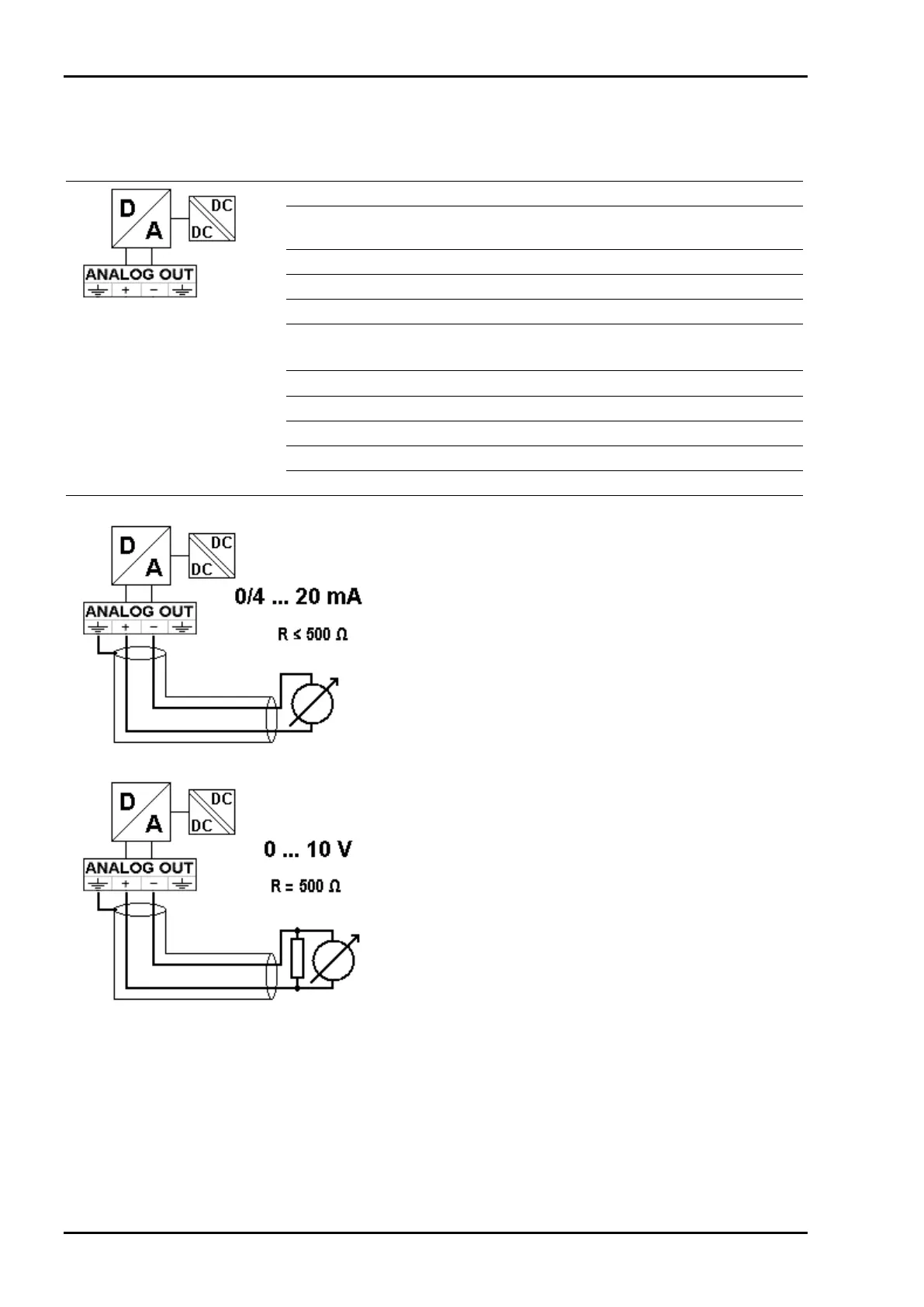

Cable length (screened)
150 m (current output)
0/4…20mA
analog signal, current output
The current is supplied directly from the terminals.
0…10V
analog signal, voltage output
The voltage level corresponds to the voltage drop at the
500 Ohm (10 ppm/K) resistor.
