Sartorius PR 5211 Series User Manual

Installing the Instrument PR 5211 Instrument Manual
EN-20 Sartorius

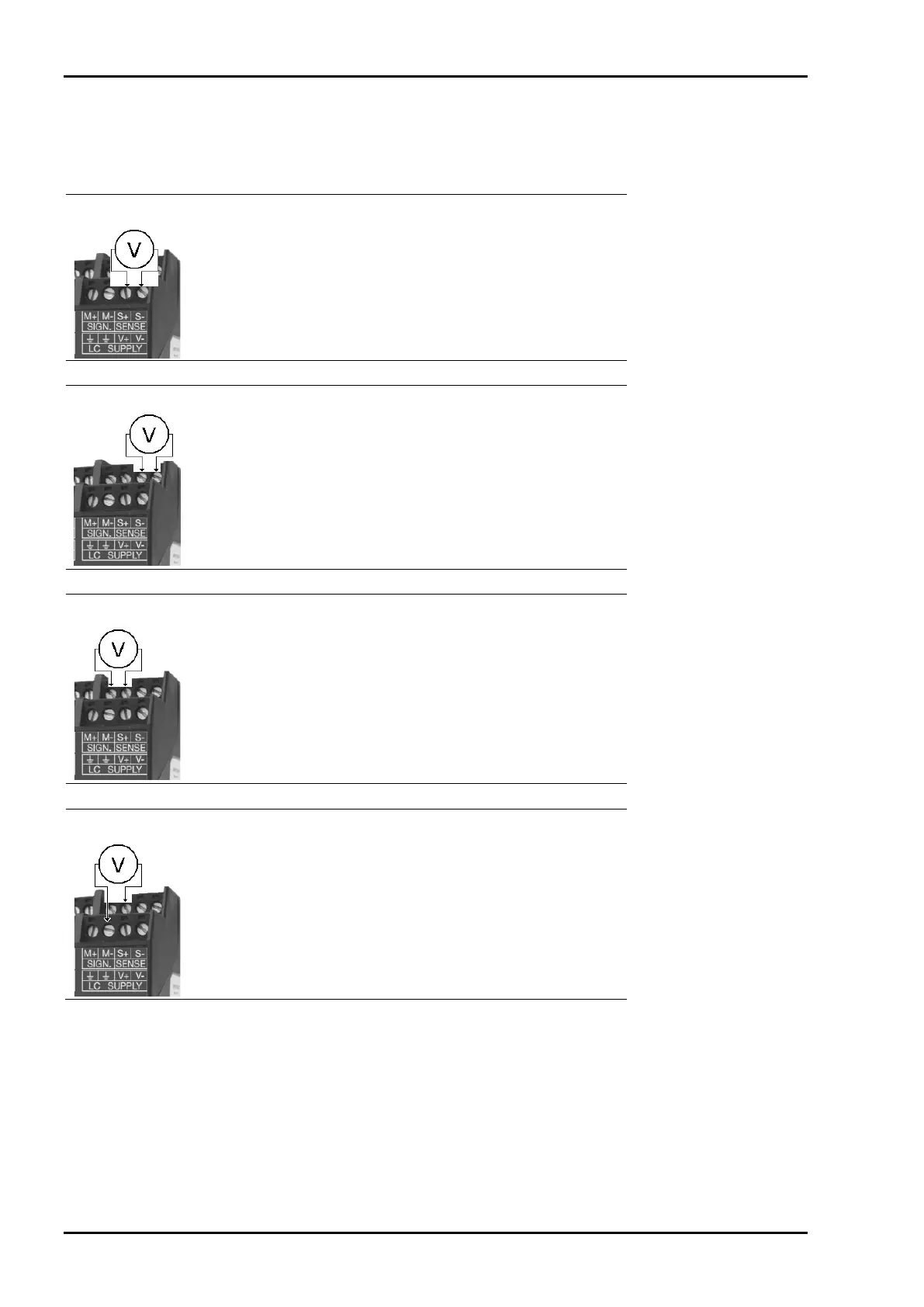

3.2.6.4 Testing the Measuring Circuit
A simple test with the load cells connected can be carried out with a multimeter
(not with external supply or intrinsically safe load cell interface):
Supply voltage
V+
to
V-
:
V ±0,8 V
(symmetrical to housing GND)
Sense voltage
S+ to S- :
12 V ±0,8 V
(symmetrical to housing GND)
Measuring voltage
M+
to
M-
:
0 - 12 mV @ WZ mit 1,0 mV/V
0 - 24 mV @ WZ mit 2,0 mV/V
Measuring voltage
Ground (earth)
to
M-
:
0 V ±0,5 V
