PR 5211 Instrument Manual Commissioning
Sartorius EN-41
1. step: Enter the full scale deflection value (FSD). Maximum weight (maximum capacity ) on the
scale.
2. step: Enter the stepwidth.
3. step: Enter the deadload. The deadload is the weight of the empty scale.
By entering by weight the scale must be completely emptied. Press [Set deadload].
By entering by mV/V, enter the mV/V value which corresponds to the weight of the empty
scale.
4. step: Enter a calibration weight or the SPAN in mV/V or by load cell data (SMART CALIBRATION).
By entering by weight the scale is loaded with a known calibration weight. This weight could
be smaller as the full scale deflection value (FSD) and will be entered. Press [Set Span].
By entering by mV/V, enter the mV/V value for the full SPAN (zero to full scale deflection
value (FSD)).
By selecting With load cell data the load cell data are used for calibration (see chapter 4.11.1).

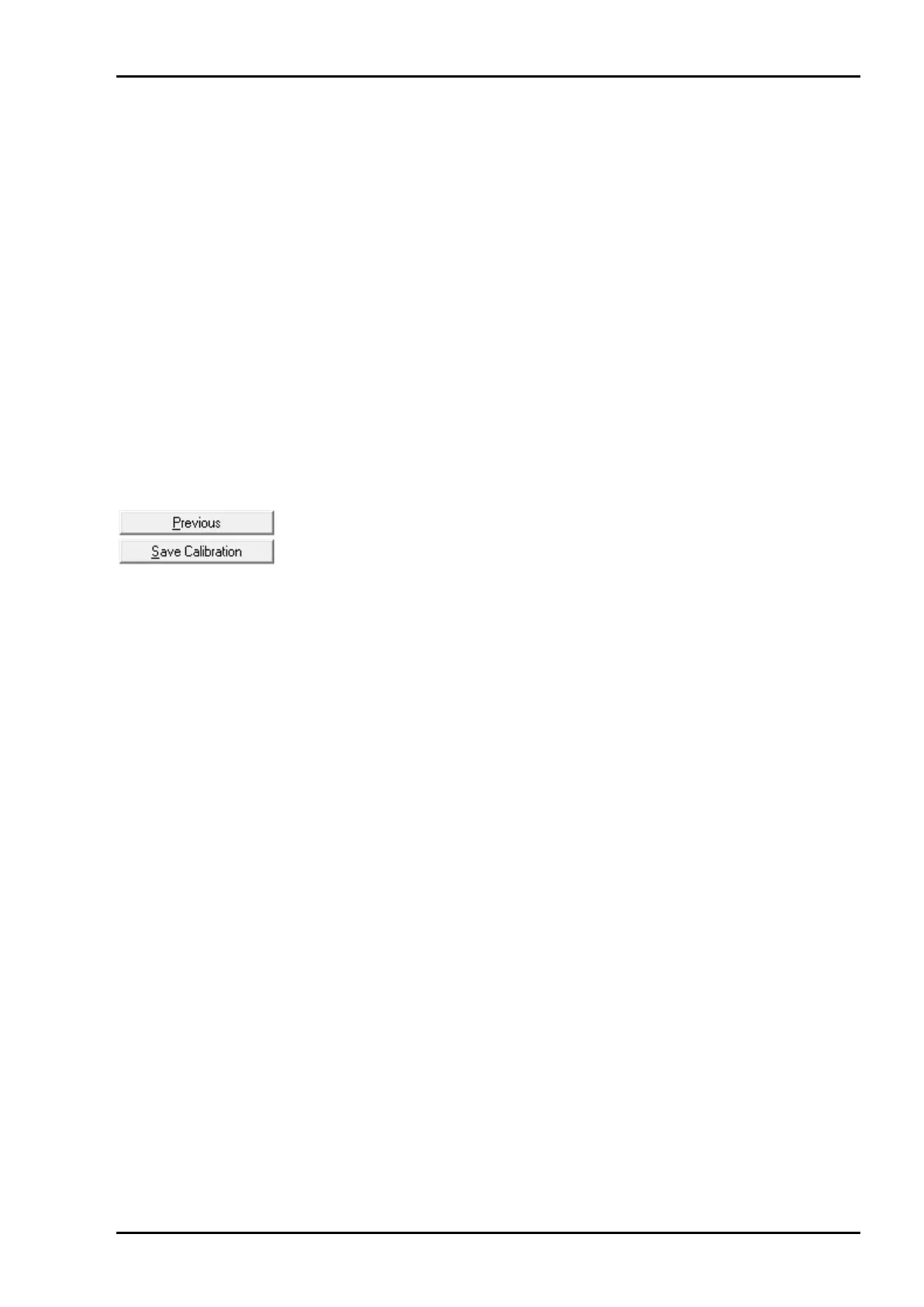

5. step: Save calibration.
If necessary return to previous step of calibration.
Save the calibration.
