SATO CL4NX Programming Reference

337

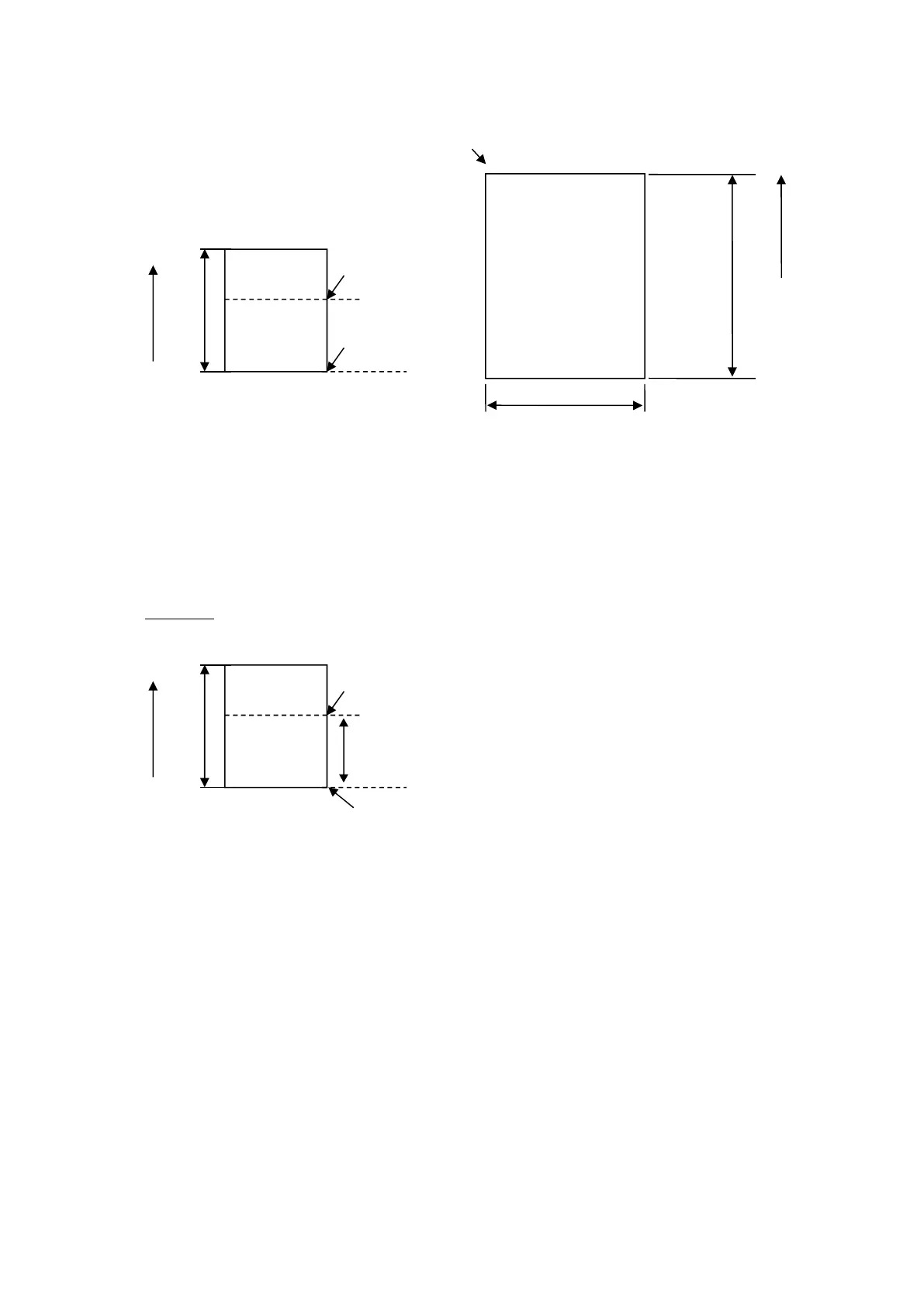

Example) 8 dots/mm, 12 dots/mm
ABCD
Feed direction
Stop position without
command <EP>
Stop position with
command <EP>
1249mm
9992 dots
Feed direction
104mm
832 dots
(
1248 dots
)
Value inside ( ) is 12 dots/mm
1
1
Start point
(14988 dots)
[Coding Sample 2]
<A>
<V>100<H>200<P>2<L>0202<XS>ABCD
<Q>2
<EP>,128
<Z>
ABCD
Feed direction
Print sto
p
p
osition
128 dots
Label sto
p
p
osition
[Supplementary Explanation]
• Use this command in the sensor invalid mode.
• Use this command in combination with Label Size <A1>.
• When you specify the parameter, the last position of printing + value specified in parameter will
be the stop position of label.
However, if last position of printing + position specified in parameter exceeds label length, the
size is truncated to label length.
• If you specify label size <A1> in Format Registration <YS> and Form Overlay Registration <&S>
make sure to specify Print End Position <EP> when you specify Format Call <YR> and Form
Overlay Call <&R>.

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
