SATO CL4NX - Adjusting the Position of the Media Sensor

181
Adjusting the Position of the Media Sensor
When you use nonstandard media (for example, media with printing on the underside, or media with
a special shape), the media sensor cannot detect the I-mark or Gap of the media correctly. In such a
case, adjust the position of the media sensor to detect the I-mark or Gap correctly.

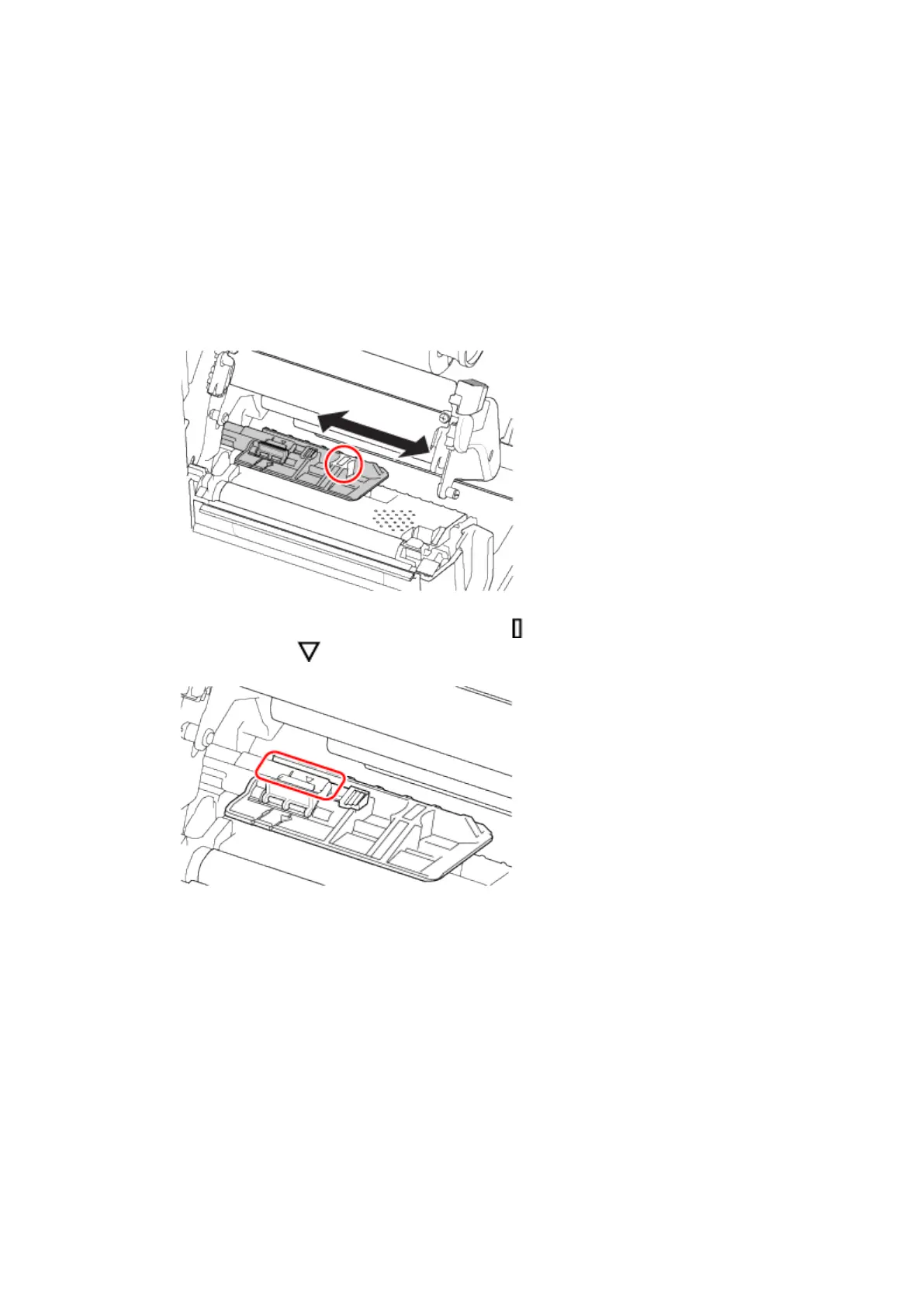

• Adjust the media sensor guide to the position where it can detect the I-mark or Gap of the
media.
•
The I-mark sensor (reflective type) is below the mark, and the Gap sensor (transmissive
type) is below the mark.
