361
Disabled
Do not ignore the CAN/DLE code.

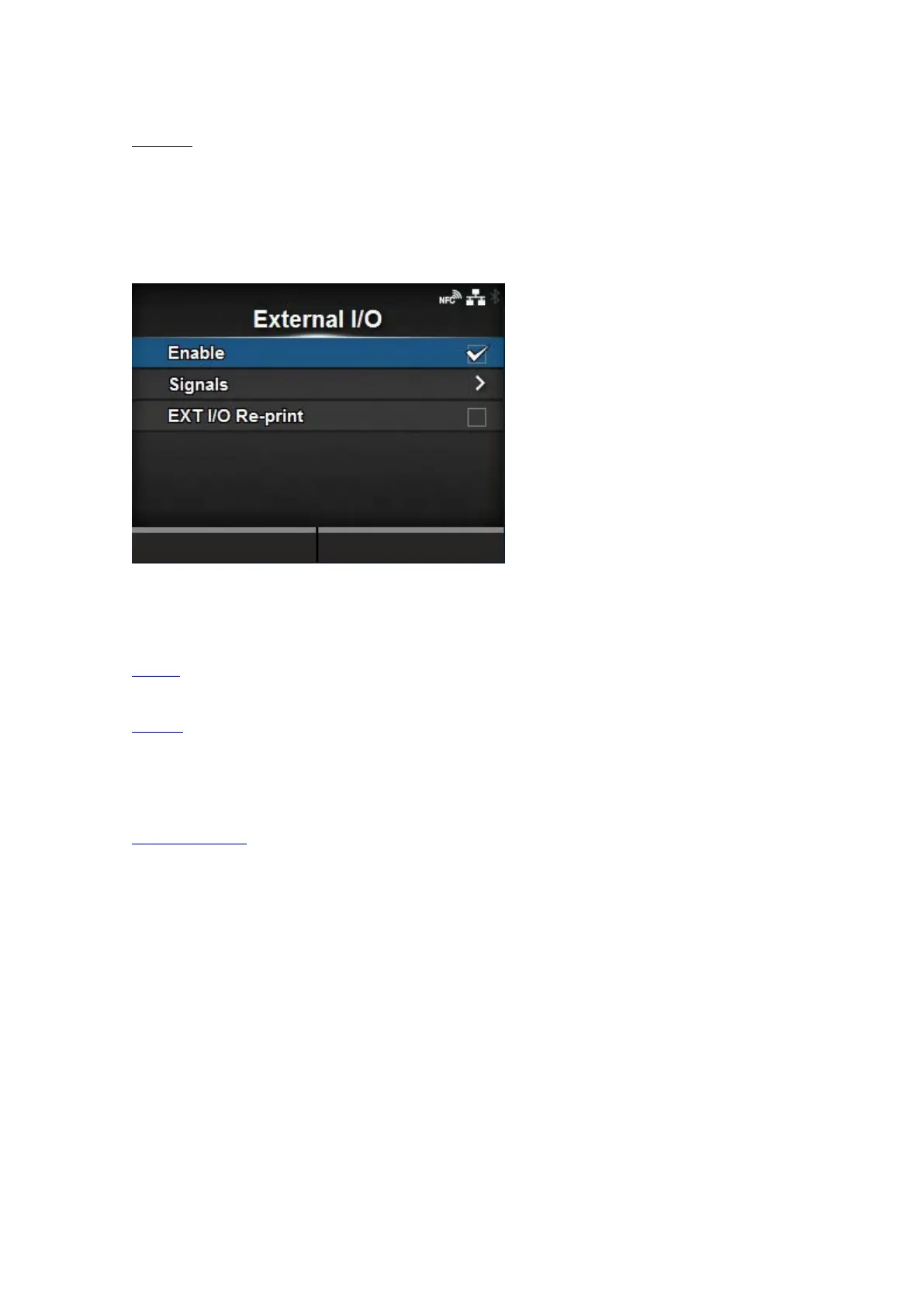

[External I/O]
Use the external (EXT) terminal as an interface between the external device and the printer.
Appears only if the combo interface board is installed.
The setting items are as follows:
Enable
Enable or disable the external signal interface.
Signals
Set the external signal.
Appears only if you have selected [Enabled] in the [Enable] menu.
EXT I/O Re-print
Set the reprint function that uses the external terminal.
