757
IEEE1284 Interface
This interface complies with the IEEE1284 standard.

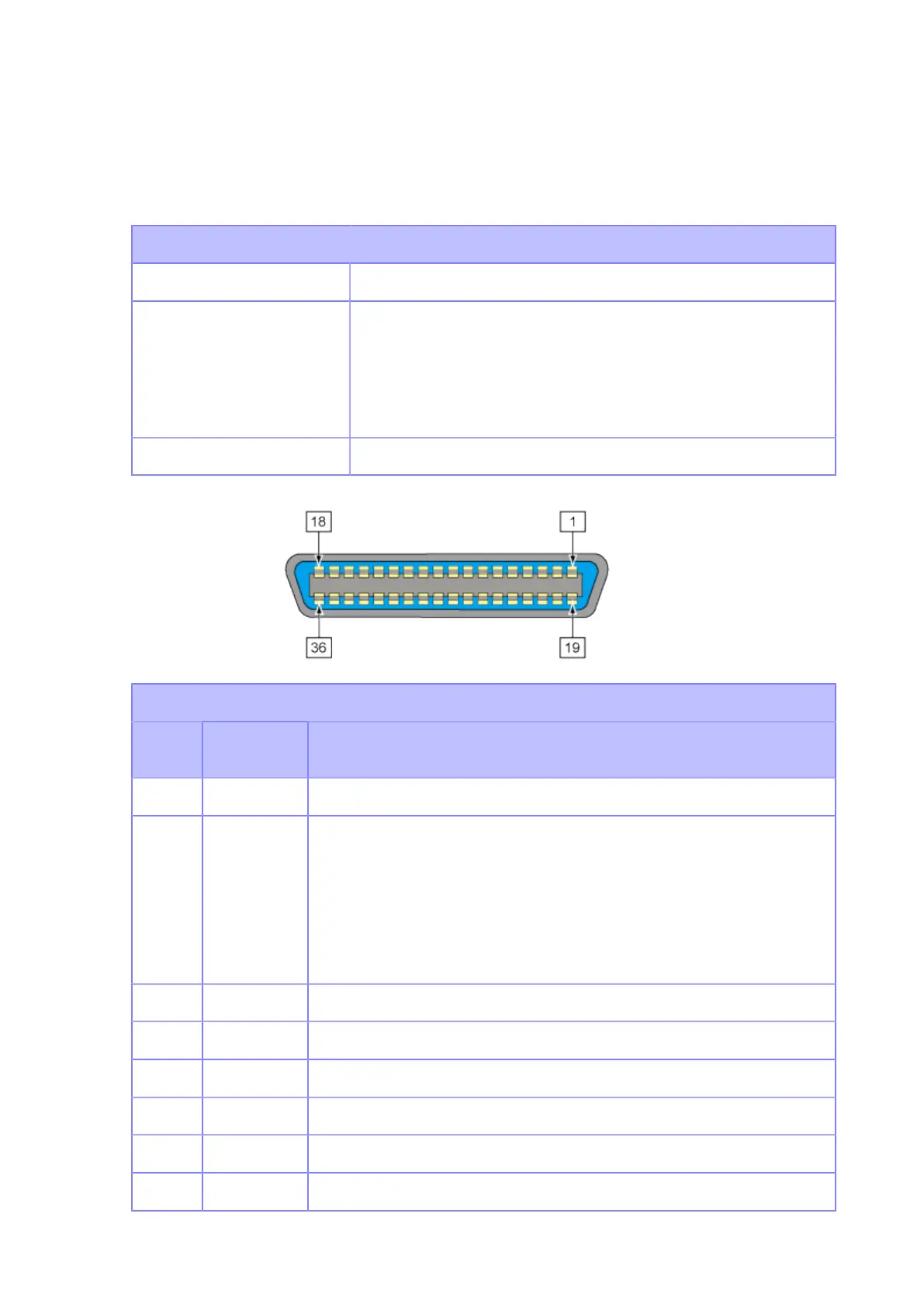

Basic Specifications
Connector Amphenol 36 pins, female
Signal Levels
High-level
+2.4 to +5.0 V
Low-level
+0.0 to +0.4 V
Receive Mode Single-item buffer, Multi-item buffer
Connector Pin Specifications
Pin
No.
I/O Description
1 Input STROBE
2 - 9 Input DATA 1 - DATA 8
DATA1
LSB
DATA8
MSB
10 Output ACK
11 Output BUSY
12 Output PAPER EMPTY/PAPER ERROR
13 Output SELECT
14 Input AUTO FEED
15 - Not in use
To Next Page
