SATO CL4NX User Manual

Notes on the Stop/Cut Position of Different Media
594
Notes on the Stop/Cut Position of Different Media

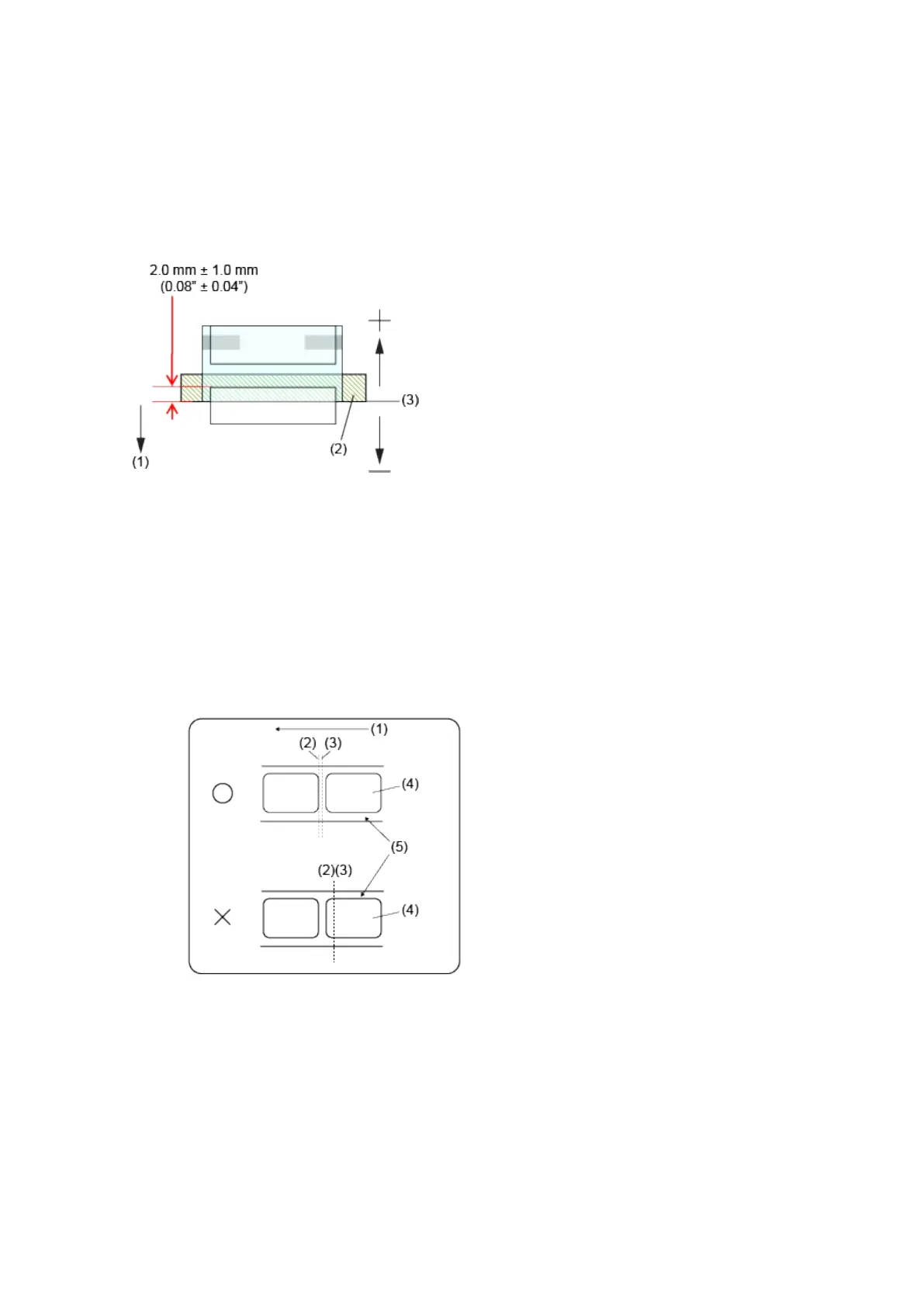

Stop Position of the Label in Dispenser Mode
The regular position is to let the label stay about 2 ± 1 mm (0.08" ± 0.04") on the liner.
(1) Feed direction
(2) Dispenser bar
(3) Stop position
Cut Position When Using the Label in Cutter Mode
The regular cut position is between labels (only cut on the liner).
When you cut the label, the glue adheres to the blade of the cutter and the blade will decrease the
performance of the cutter. Adjust the cut position so as not to cut the label.
(1) Media feed direction
(2) Cut position (I-mark sensor)
(3) Cut position (Gap sensor)
(4) Label
(5) Liner

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
