Pressure Balance Setting
606
Pressure Balance Setting
Set the pressure balance according to the media width.
1. Open the top cover of the printer.

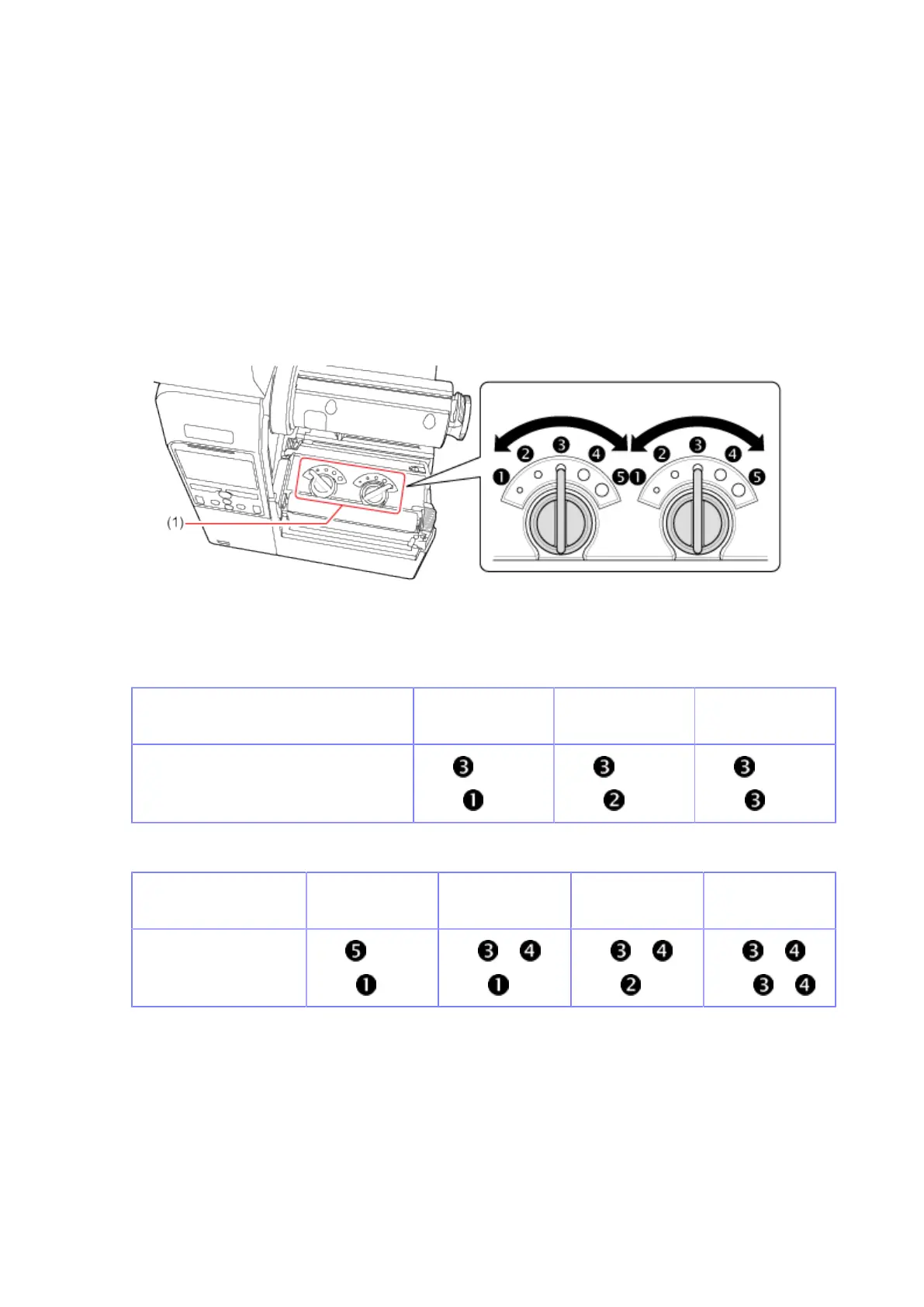

2. Find the adjustment dials (1) on the top of the print head assembly.
3. Turn the adjustment dials (1) according to the media width and set the pressure
balance.
For CL4NX:
Media Width (mm (inch)) 25 - 54 (0.98" -
2.13")
54 - 83 (2.13" -
3.27")
83 - 131 (3.27" -
5.16")
Adjustment Dials
Left
Right
Left
Right
Left
Right
For CL6NX:
Media Width (mm
(inch))
50 - 120 (1.97" -
4.72")
120 - 140 (4.72"
- 5.51")
140 - 160 (5.51"
- 6.30")
160 - 180 (6.30"
- 7.09")
Adjustment Dials
Left
Right
Left or
Right
Left or
Right
Left or
Right or
