SATO CL4NX User Manual

Configuring the Interface Settings Using the All-In-One Tool
114
6.
Press the button.
The settings items of the selected interface appear.
Change the settings according to the communication conditions of the connected network and
computer.
Configuring the Interface Settings Using the All-In-One Tool
Installing the All-In-One Tool
When you use the All-In-One Tool, you can easily set and manage the printer.
Download the All-In-One Tool and All-In-One Tool Manual from the SATO All-In-One Tool download
site http://www.satoworldwide.com/software/all-in-one-tool.aspx, and install the software to a
computer. For the compatible OS, refer to the "System Requirements" section of the All-In-One Tool
Manual.
LAN Interface Settings
Confirm and configure the LAN interface settings such as the IP address by using the All-In-One Tool.
Confirm and configure the IP address of the printer, which is added to the All-In-One Tool, from the
[Interface Configuration] in the [Configuration] panel.
When you add the printer to the All-In-One Tool, you can manage and monitor the printer.
1. Connect the LAN cable to the printer, and power on the printer.
Make sure that the LED of the printer's LAN connector is lit.
2. Activate [SATO] > [SATO All-In-One Application] on the computer.

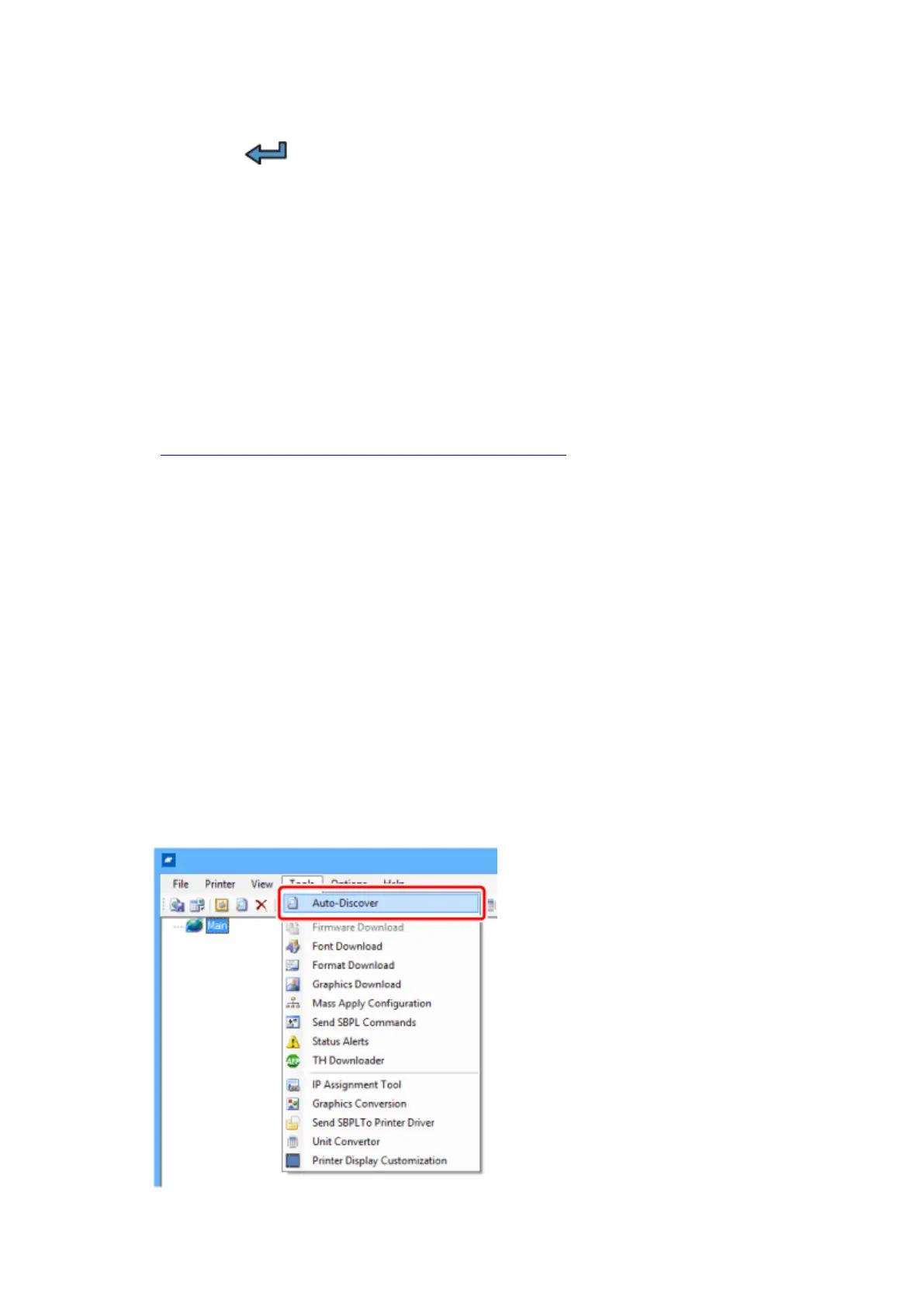

3. Select [Auto-Discover] from the [Tools] menu on the main screen.

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
