SATO CL4NX User Manual

609
Configuring the Printer to Encode Inlays

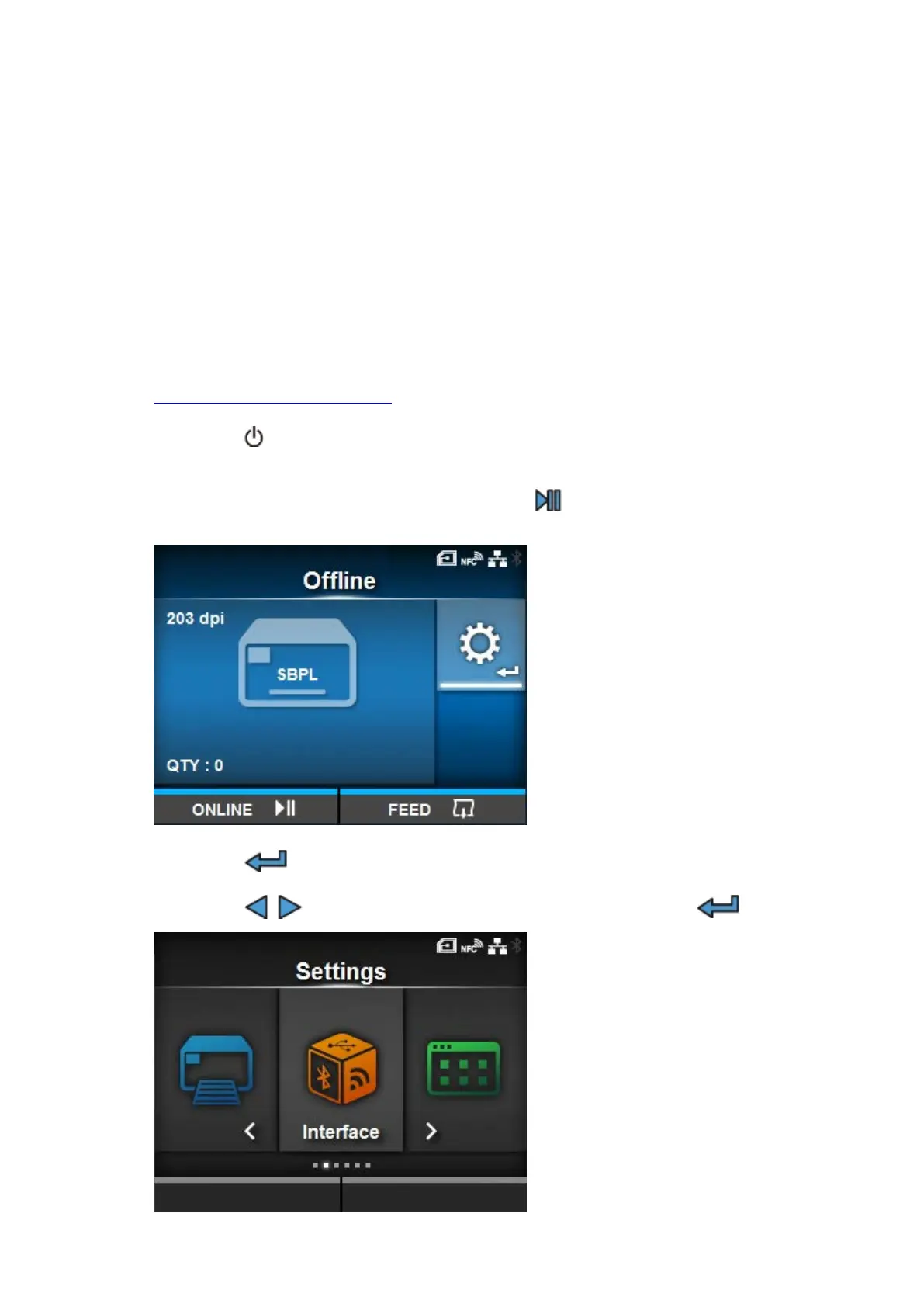

This topic explains the procedures on how to configure the printer to encode your inlays.
1. Examine the media to determine the printer settings.
Refer to the CL4NX Inlay Configuration Guide for the measurements you should take and what
they mean, as well as a list of inlays and their required configurations.
To see the CL4NX Inlay Configuration Guide, access the following URL:
http://www.satoworldwide.com/rfid/
2.
Press the power button of the operator panel until the LED lights up in blue to
power on the printer.
3.
When the printer is in Online mode, press the button on the operator panel to
change to Offline mode.
4.
Press the button to show the [Settings] menu.
5.
Press the / buttons to select [Interface] and then press the button.

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
