Media Sensor Positions and Media Stop Positions

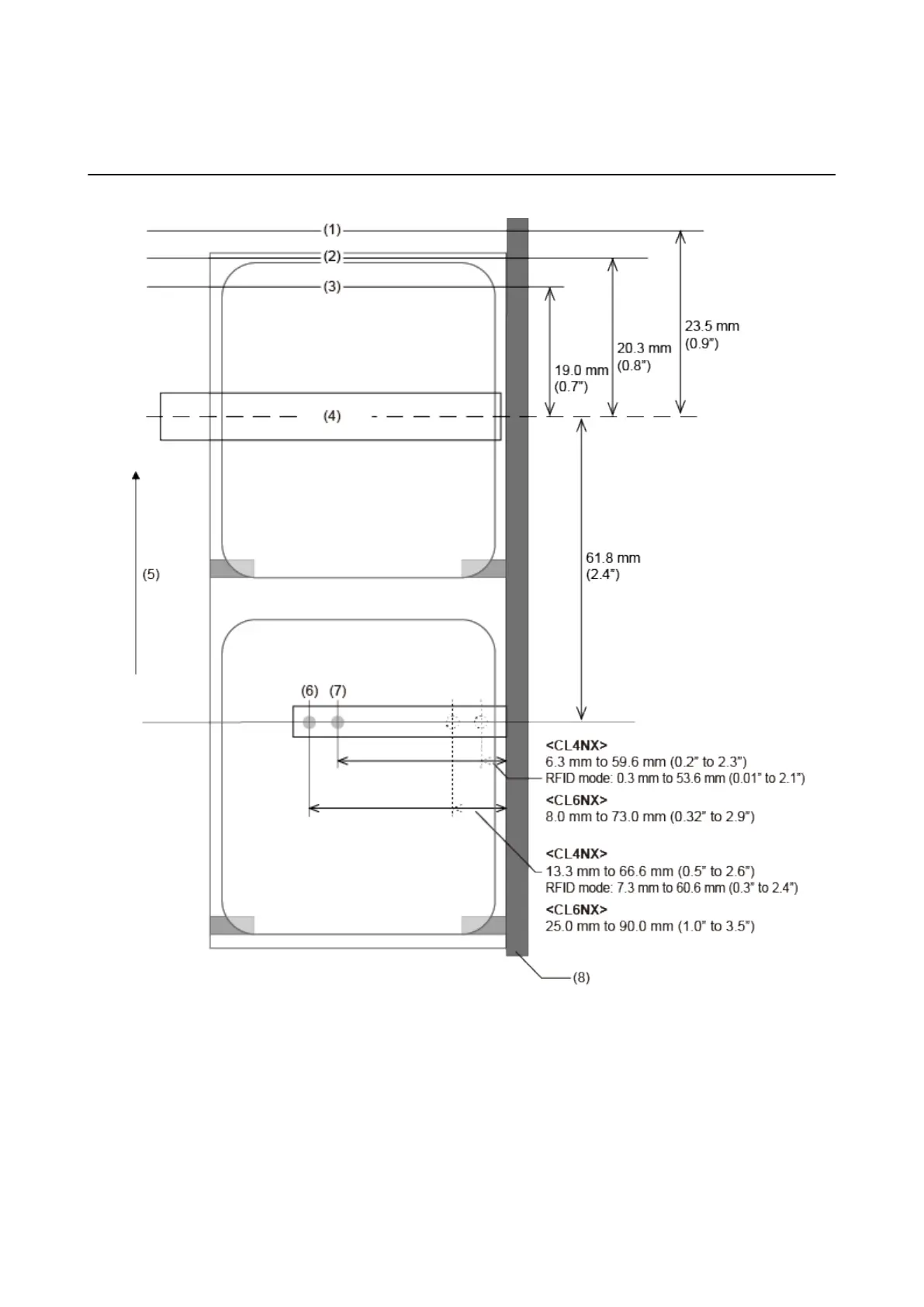

The media stop positions with the media sensor and various operation modes are as follows:
(1) Media stop position in dispenser mode
(2) Media stop position in cutter mode
(3) Media stop position in tear-off mode
(4) Print head
(5) Media feed direction
(6) Gap sensor
(7) I-mark sensor
