RFID Printing Tips
624
RFID Printing Tips

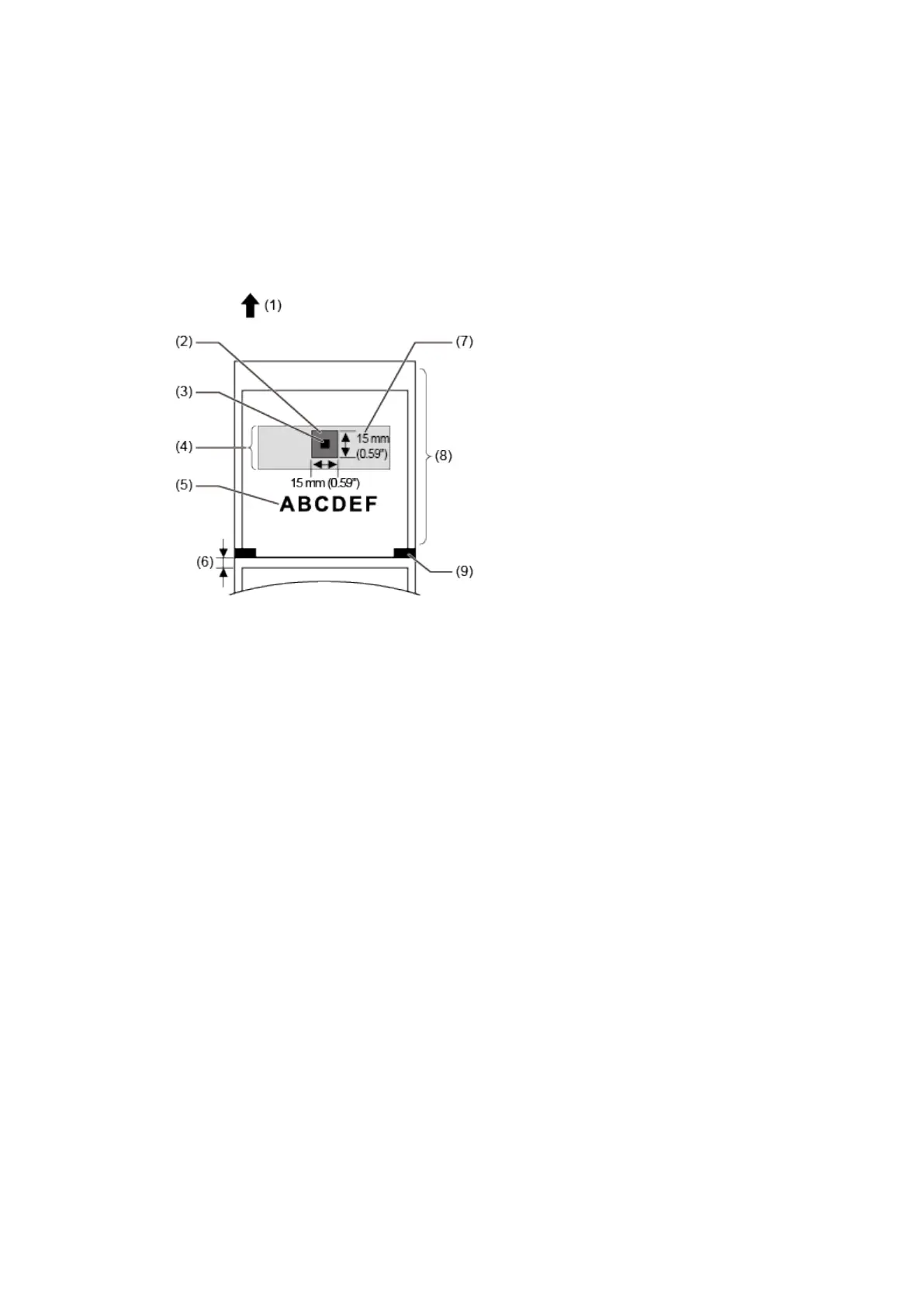

Recommended Non-printable Zone
Avoid printing barcodes or characters directly on top of an RFID chip. The uneven surface will
negatively affect the print quality.
(1) Feed direction
(2) Recommended non-printable zone
(3) IC chip
(4) Inlay
(5) Print object
(6) Gap
(7) Antenna
(8) RFID tag/label
(9) I-mark
