[External I/O]
364
TYPE1
The print end signal (PREND) is "High" before label printing, and it becomes "Low" after print
completion. The signal level becomes "High" after 20 ms.
TYPE2
The print end signal (PREND) is "Low" before label printing, and it becomes "High" after print
completion. The signal level becomes "Low" after 20 ms.
TYPE3
The print end signal (PREND) is "High" before label printing, becomes "Low" from the start to the
end of print, and becomes "High" again after print completion.
TYPE4
The print end signal (PREND) is "Low" before label printing, becomes "High" from the start to the
end of print, and becomes "Low" again after print completion.

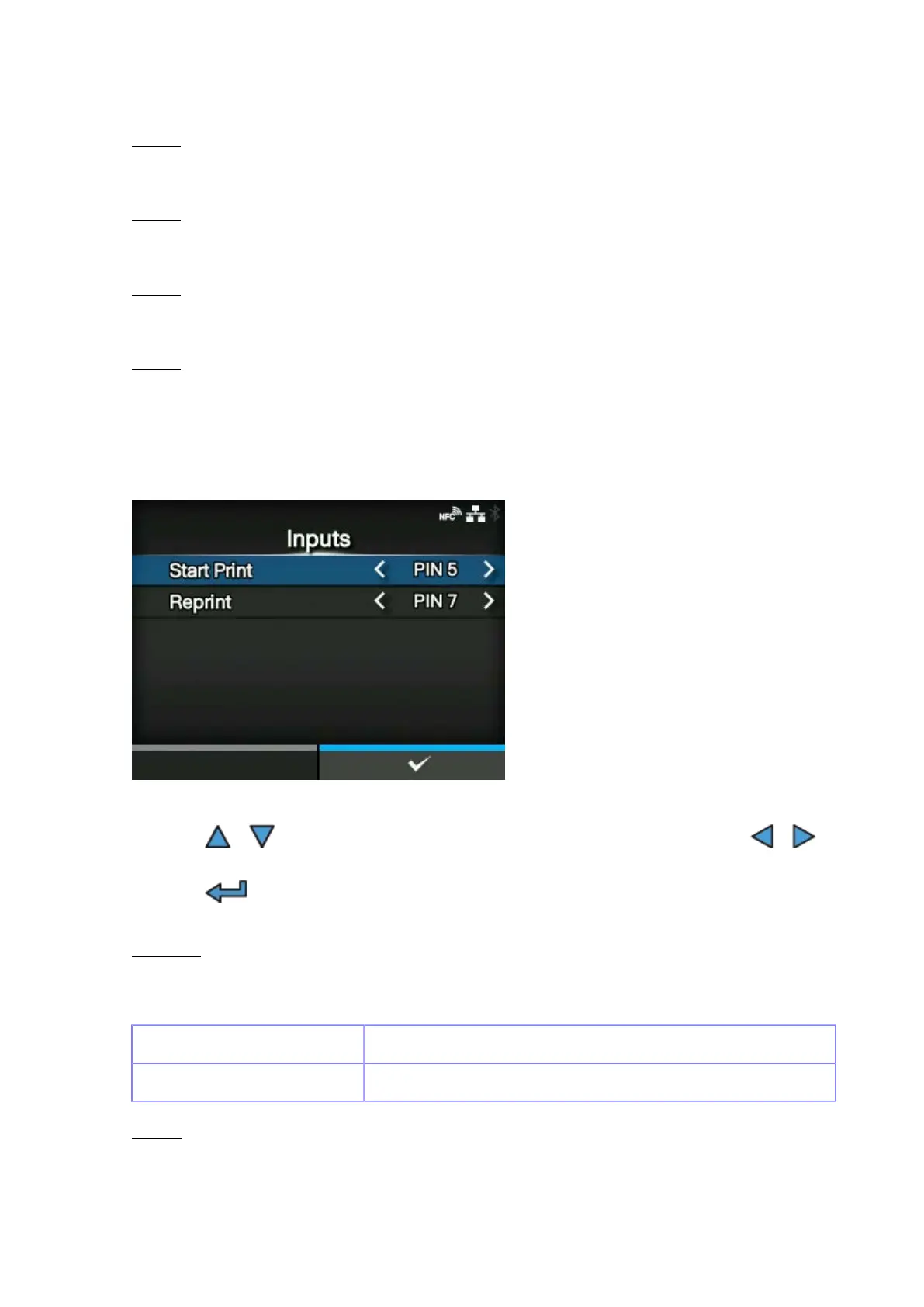

[Inputs]
Set the input pin No. of the Signal Print Start/Signal Reprint.
Press the / buttons to highlight the item that you want to change, and press the /
buttons to change the pin No.
Press the button to save the settings and return to the [Signals] menu.
The setting items are as follows:
Start Print
Set the input pin No. of the Signal Print Start.
The options are as follows:
[PIN 5] Set the Signal Print Start to pin 5.
[PIN 7] Set the Signal Print Start to pin 7.
Reprint
Set the input pin No. of the Signal Reprint.
The options are as follows:
