SATO CL4NX User Manual

371

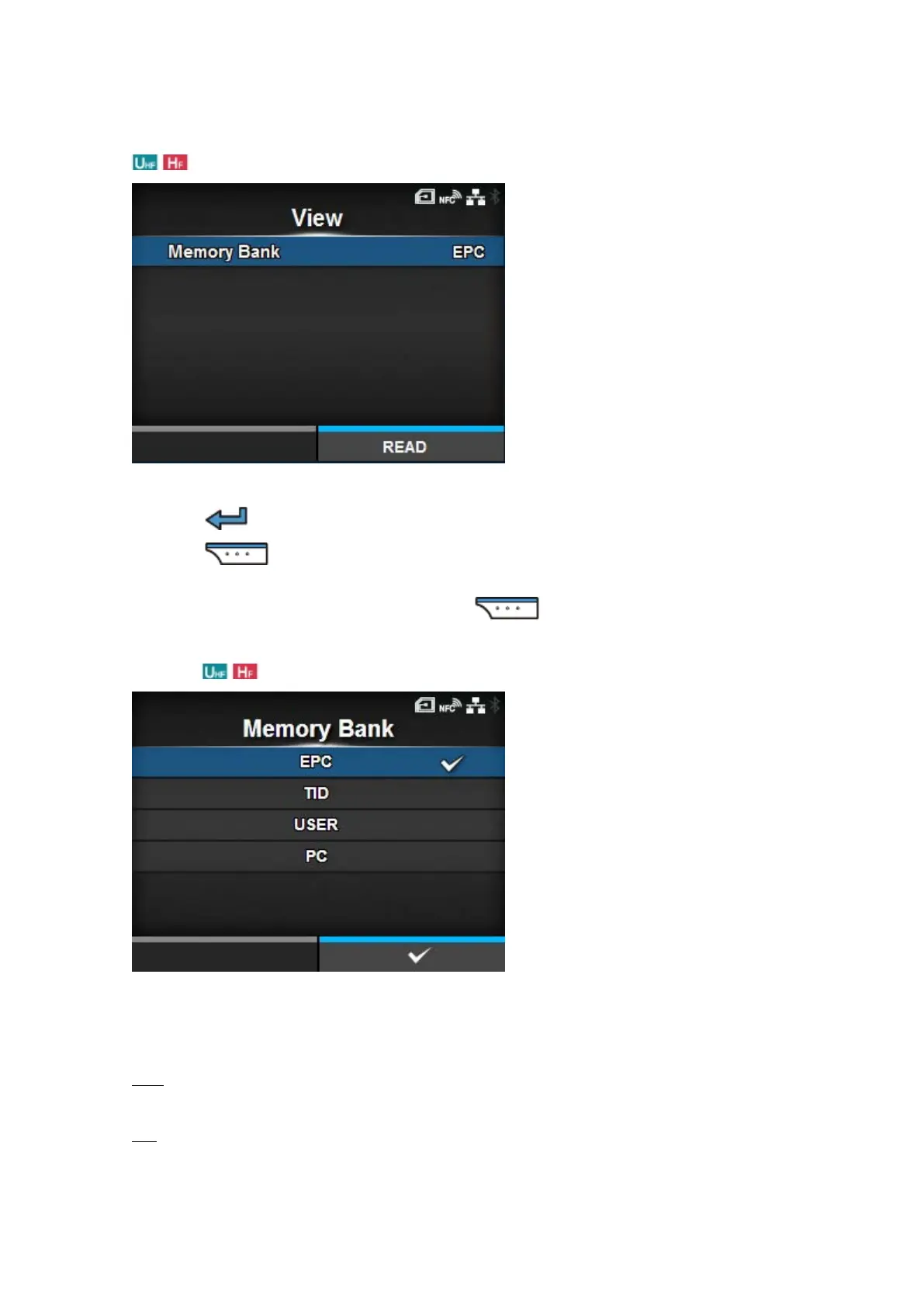

[View]
Shows the RFID tag data.
Press the button to change to the [Memory Bank] screen.
Press the button (READ) to change to the [Data Reading] screen, to read and show the
data.
On the [Data Reading] screen, you can press the button to feed the media and attempt to
read the tag currently set in the printer.
[Memory Bank]
Set the memory area of the RFID tag to read.
The readable memory areas are as follows:
If the installed module is UHF
EPC
EPC area
TID
TID area

SATO CL4NX Specifications

General

Wi-Fi	No
Ethernet LAN	Yes
Flash memory	2000 MB
Storage media	Flash
Internal memory	256 MB
Built-in barcodes	Code 39, Code 93, Code-128 Codabar Library, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, Matrix 2/5
Internal storage capacity	2 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	30 - 90 %
Operating relative humidity (H-H)	30 - 80 %
Maximum roll diameter	220 mm
Maximum printing width	104 mm
Printing media thickness	0.06 - 0.26 µm
Display type	LCD
Product color	Black
Display diagonal	3.5 \
Display resolution	320 x 240 pixels
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB connector	USB Type-A / USB Type-B
Bluetooth version	3.0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
Type	POS printer
Print speed	10 ips
Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI

Weight and Dimensions

Depth	457 mm
Width	271 mm
Height	321 mm
Weight	15000 g
