SATO CL4NX - Page 552

552

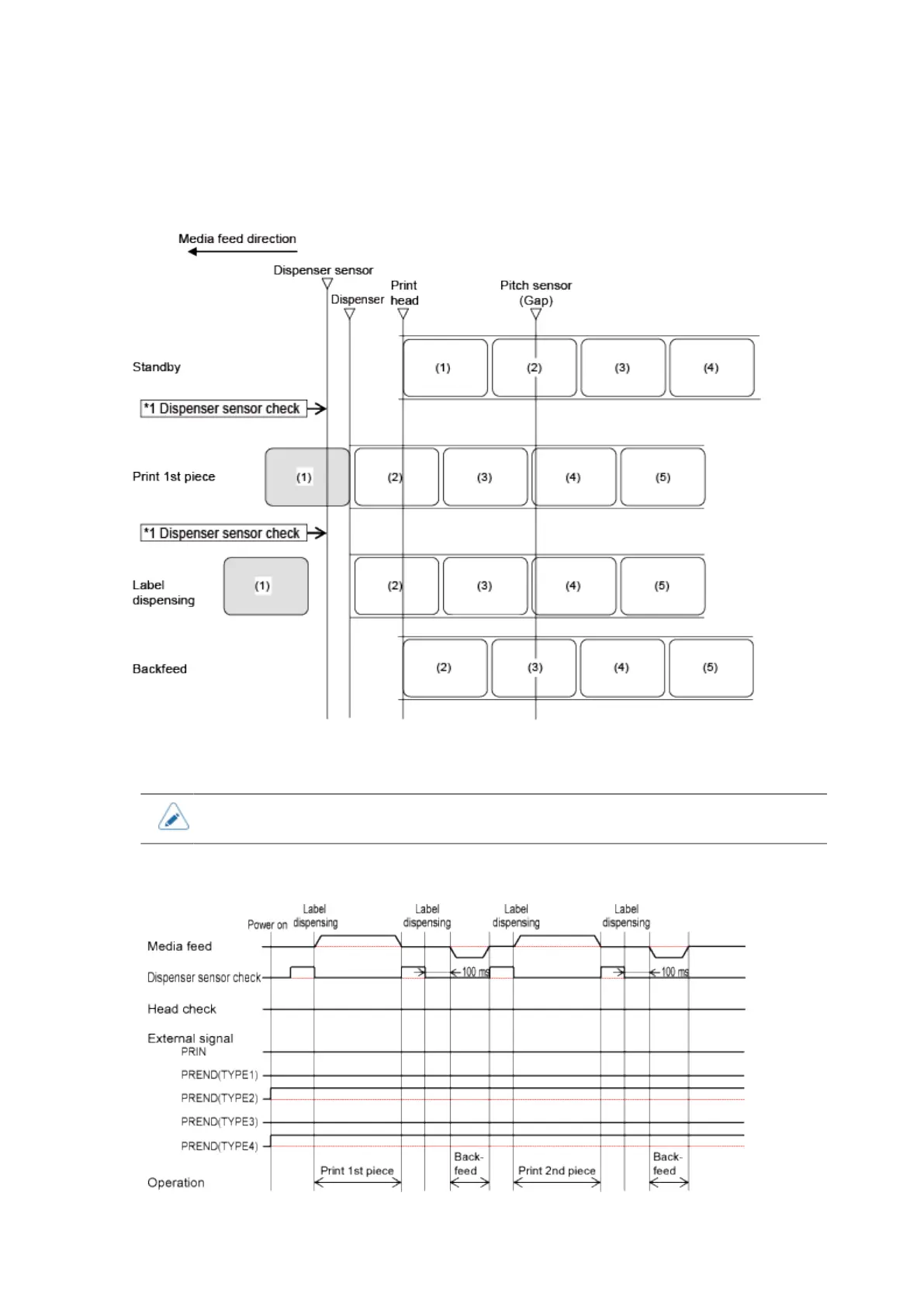

Operation 25: Dispenser Mode, Backfeed After Printing, and Without Pulse Input
(Head Check Disabled)
Operation
*1 The dispenser sensor confirms the dispensing condition and the printer does not perform the next
operation until the label is dispensed.
• The figure above shows the reference position when the Gap sensor is used.
Timing Chart
