PN 9001024
Rev. B Jan. 2000
Page 1-9
SATO CL608 & CL612 SERVICE MANUAL
SECTION 1 – Overview & Specifications

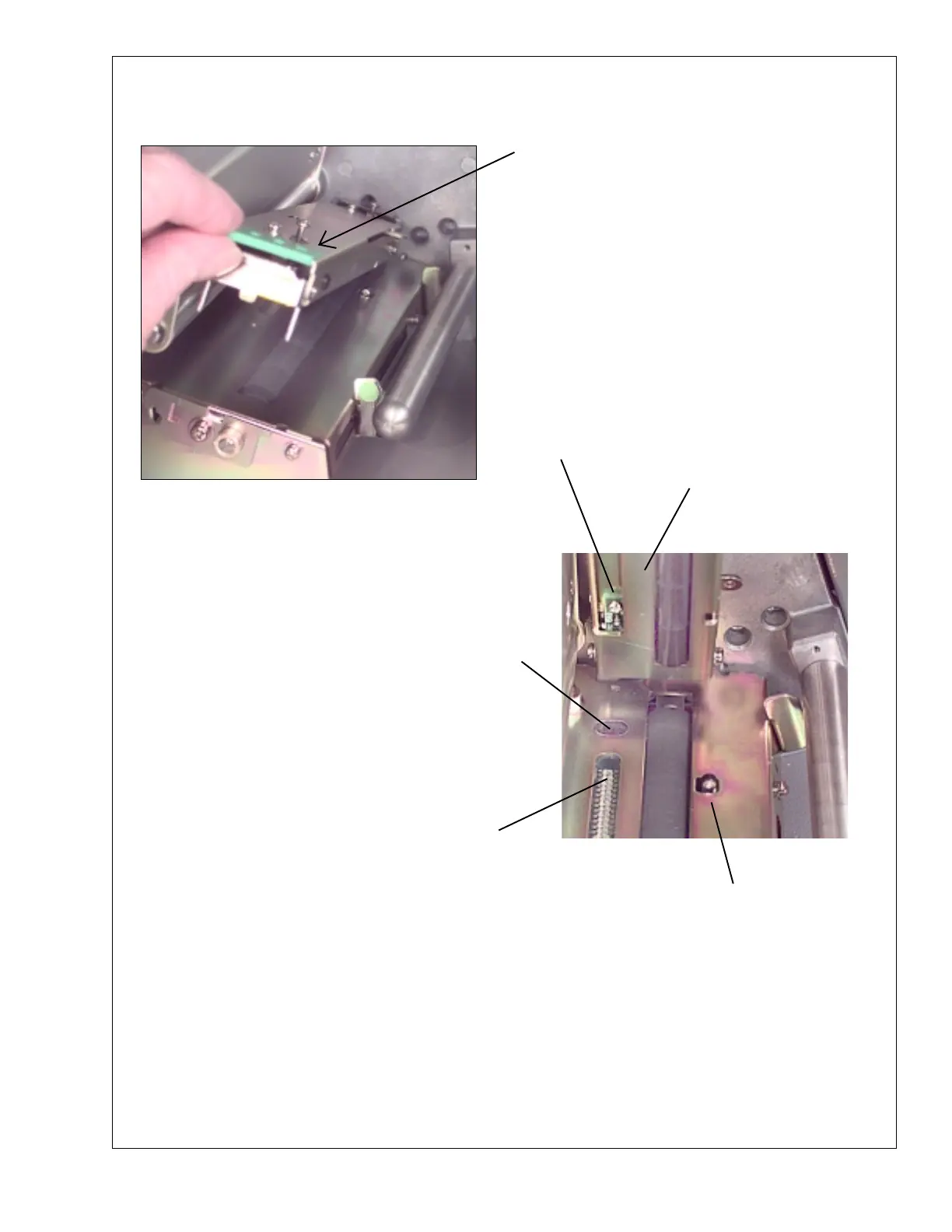

1-6 Switches and Sensors
MEDIA HOLD DOWN: Open by
lifting up on the release tab
underneath the green tab marked
"PUSH". The Media Hold Down is
spring loaded and will remain in the
up position. Close by pushing down
on the same green tab.
LABEL OUT SENSOR: This micro
switch is activated when media
stock is out or when the Media Hold
Down is in the up position. All
printer operations stop, and an
error message is displayed on the
LCD.
MEDIA HOLD DOWN
(Underside)
"EYE-MARK" SENSOR
(Fixed: Non adjustable)
NOTCH/GAP SENSOR
LED ARRAY (Bottom
Half is Non-adjustable)
NOTCH/GAP SENSOR
(Top Half is adjustable)
( Refer to Section 5-10)
