15.4.1.5 INSTABILITY
By selecting this functioning mode, the output function on the unstable weight is enabled.
15.4.1.6 TOTALISATION
By selecting this functioning mode, the output function is enabled after executing a single weigh or after an output weight (at
the end of an input/output cycle); the output remains enabled until the weigh is restored; in other words, by the passing by
zero of the net weight or by weight instability (see F.ModE >> rEACt “REACTIVATIONS” parameter of the TECHNICAL
SETUP, TECHNICAL MANUAL.).
15.4.1.7 SETPOINT ON THE PARTIAL TOTAL
By selecting this functioning mode, the output function is enabled on the sum between the NET weight on the scale and the
accumulated net partial total; the entry of the SET POINTS and the specifications are the same as the functioning mode on
the gross weight.
15.4.1.8 SETPOINT ON THE GENERAL TOTAL
By selecting this functioning mode, the output function is enabled on the sum between the NET weight on the scale and the
accumulated net general total; the entry of the SET POINTS and the specifications are the same as the functioning mode
on the gross weight.
15.4.1.9 SETPOINT ON THE GRAND TOTAL
By selecting this functioning mode, the output function is enabled on the sum between the NET weight on the scale and the
accumulated net grand total; the entry of the SET POINTS and the specifications are the same as the functioning mode on
the gross weight.
15.4.1.10 SETPOINT ON THE NEGATIVE NET WEIGHT
Functioning with hysteresis (rL.iSt “HYSTERESIS” parameter set as iSt.on)
By selecting this functioning mode the outputs function on the NEGATIVE NET weight is activated; one enters two
NEGATIVE SET POINTS for each output: a DISABLING one, which, when the NET weight is greater than it, disables the
appropriate output; an ENABLING one, which, when the NET weight is lower or equal than it, it enables the appropriate
output.
The entry and specifications are the same for the functioning mode on the gross weight.

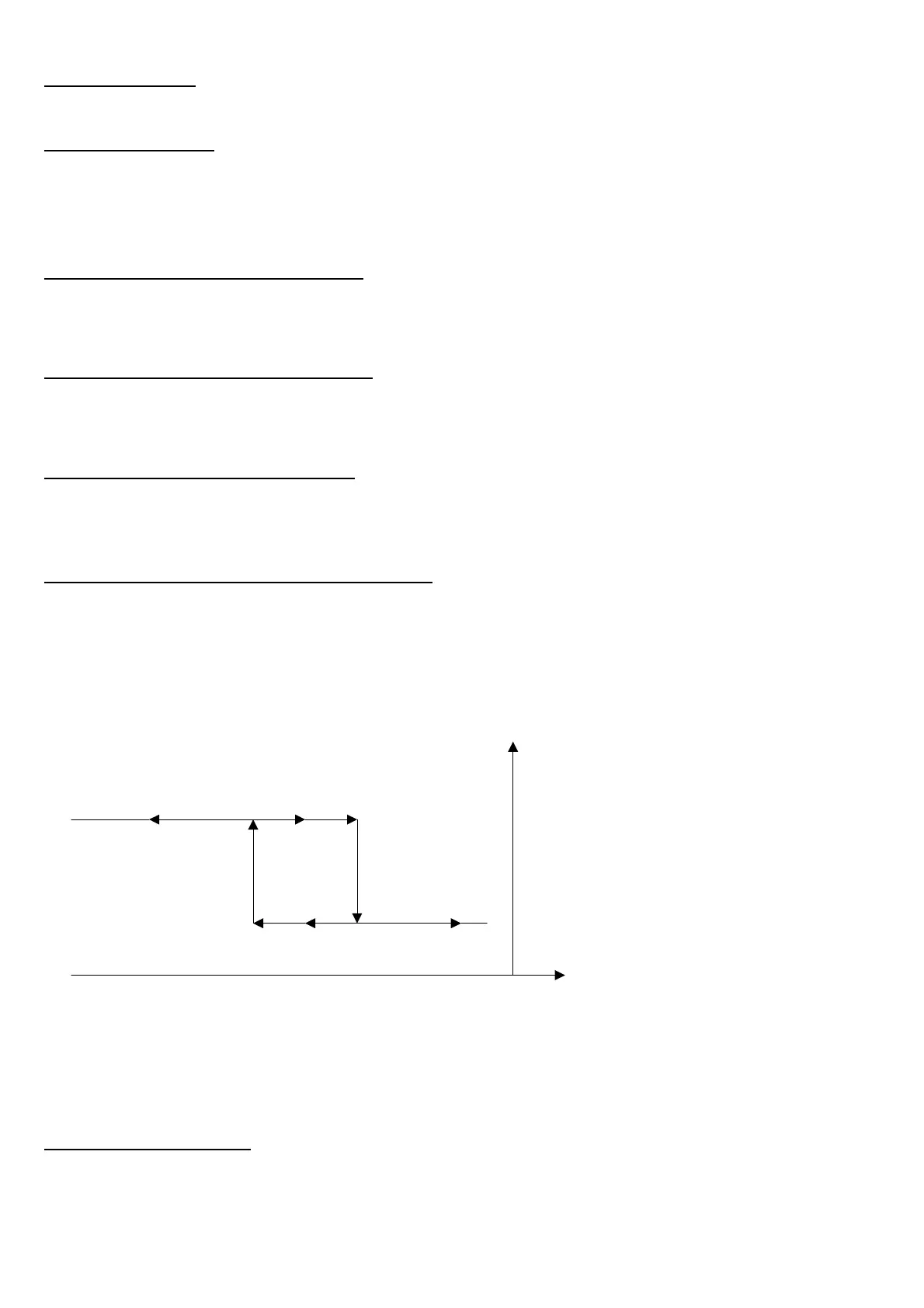

OUT1 STATUS
ENABLED
DISABLED
S1.on S1.Off NET WEIGHT
Functioning without hysteresis (rL.iSt “HYSTERESIS” parameter set as iSt.oFF)
The operating mode is the same as the previous one, except that just one SETPOINT is entered for each output (" S.1 on
“); for this purpose the access to the " S.1 oFF " parameter is inhibited.
The entry and specifications are the same for the functioning mode on the gross weight.
15.4.1.11 OPERATION MADE
By selecting this functioning mode, the output function is enabled after the execution of an input or output weigh; the relay
remains enabled until the weigh is restored; in other words, by the passing by zero of the net weight or by weight instability
(see F.ModE >> rEACt “REACTIVATIONS” parameter of the TECHNICAL SETUP, TECHNICAL MANUAL.).
