15.4.1.12 WEIGHT ACQUISITION
By selecting this functioning mode, the output function is enabled after the weight acquisition; the relay remains enabled
until the weigh is restored; in other words, by the passing by zero of the net weight or by weight instability (see F.ModE >>
rEACt “REACTIVATIONS” parameter of the TECHNICAL SETUP, TECHNICAL MANUAL.).
15.4.1.13 CONTROL LIGHT
By selecting this functioning mode the output function on the NET weight is enabled: when the net weight is equal or
greater than the ENABLING SET POINT, the relay is disabled.
The relay is disabled until the execution of an input or output weight; after this, the relay is activated and remains activated
until the weight is lower than the ENABLING SET POINT, and the weight doesn’t surpass it once again.
If the relay is disabled and no input or output weight is made, the functioning is the same as that of the set point on the net
weight.
FUNCTIONING WITH 1 CONTROL LIGHT:
• The scale is unloaded and the vehicle is not yet positioned on the scale: the GREEN light turns on.
• The vehicle is now positioned on the scale. When the ENABLING SET POINT is reached, the GREEN light turns off
and the RED light turns on.
• After the execution of the input or output weight, the RED light turns off and the GREEN light turns back on.
• The vehicle descends from the scale and the GREEN light continues to stay on.
• It is possible to execute another input/output weigh with the same procedure.

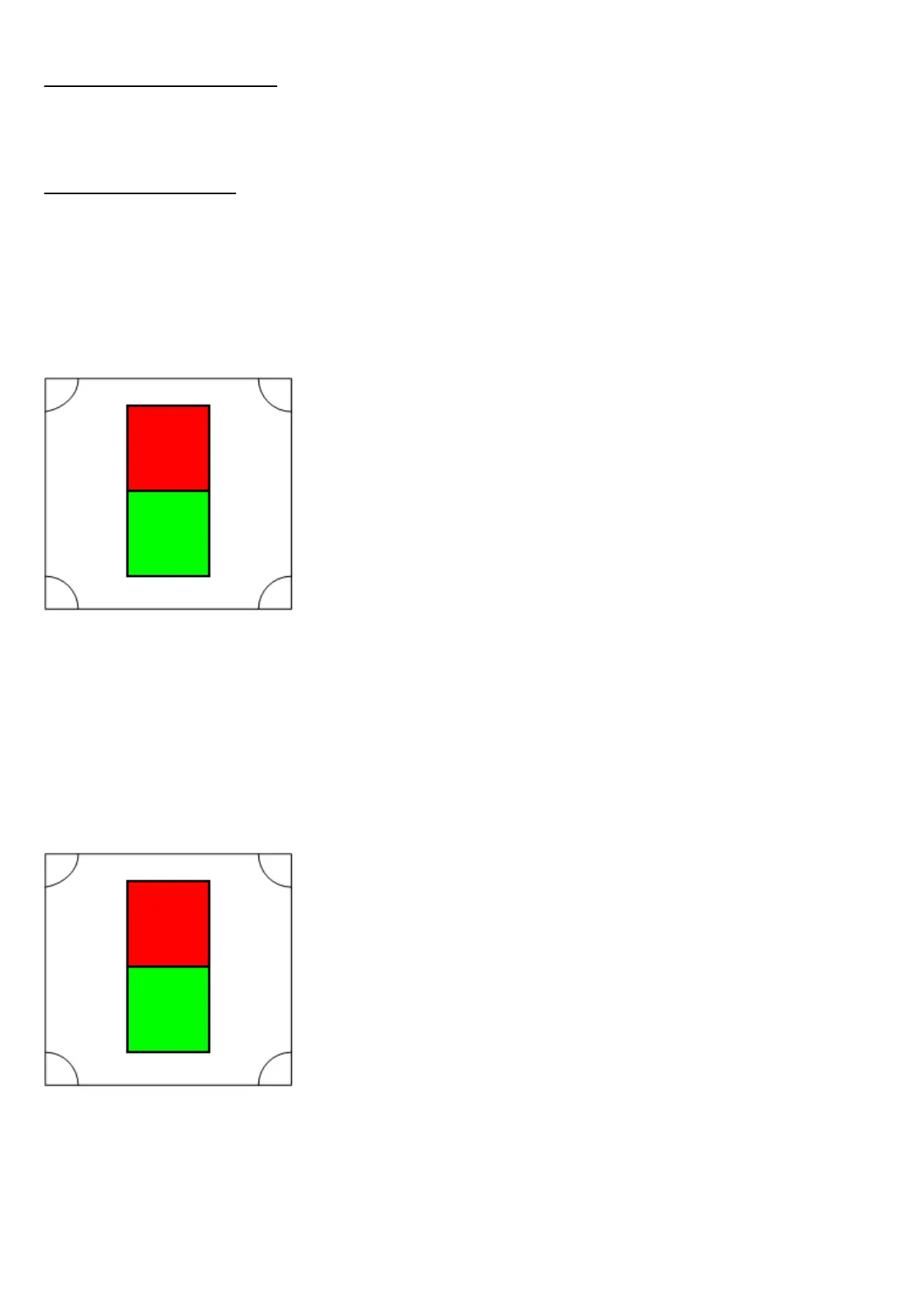

FUNCTIONING WITH 2 CONTROLS LIGHT:
The functioning mode with 2 independents controls light is equal to the functioning previously described, with the difference
that it’s possible to manage 2 independents scales, each with one different control light.
SCALE 1
RED  R1, functioning with control light, normally CLOSED,
ENABLING SET POINT 10kg.
GREEN  R2, functioning with control light, normally OPEN,
ENABLING SET POINT 10kg.
RED  R1, functioning with control light, normally CLOSED,
ENABLING SET POINT 10kg.
GREEN  R2, functioning with control light, normally OPEN,
ENABLING SET POINT 10kg.
